Tektronix DPO2014B
| Attribut | Valeur |
|---|---|
| Bande passante | 100 MHz |
| Nombre de voies | 4 voies analogiques |
| Taux d'échantillonnage | 1 GS/s sur toutes les voies |
| Longueur d'enregistrement | 1 M points par voie |
| Résolution verticale | 8 bits |
| Taille de l'écran | 7 pouces WVGA (800 x 480 pixels) |
| Sensibilité verticale | 1 mV/div à 10 V/div |
| Base de temps | 4 ns/div à 1000 s/div |
| Connectivité | USB, port hôte USB, port Ethernet en option |
| Fréquence de mise à jour des formes d'onde | 5 000 formes d'onde par seconde |
Tektronix DPO2014B Options:
- DPO2014B - DPO2AUTO - Automotive Serial Triggering and Analysis Module. Enables triggering on packet-level information on CAN bus and LIN bus as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- DPO2014B - DPO2COMP - Computer Serial Triggering and Analysis Module. Enables triggering on packet-level information on RS-232/422/485/UART buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- DPO2014B - DPO2EMBD - Embedded Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2C and SPI buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- DPO2014B - DPO2BND - Application bundle module option that contains the DPO2AUTO, DPO2COMP, DPO2EMBD application modules.
- DPO2014B - DPO2CONN - Adds Ethernet (10/100Base-T) and video out port
- DPO2014B - Opt. A0 - North America power plug (115 V, 60 Hz)
- DPO2014B - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- DPO2014B - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- DPO2014B - Opt. A3 - Australia power plug (240 V, 50 Hz)
- DPO2014B - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- DPO2014B - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- DPO2014B - Opt. A10 - China power plug (50 Hz)
- DPO2014B - Opt. A11 - India power plug (50 Hz)
- DPO2014B - Opt. A12 - Brazil power plug (60 Hz)
- DPO2014B - Opt. A99 - No power cord
- DPO2014B - Opt. L0 - English manual
- DPO2014B - Opt. L1 - French manual
- DPO2014B - Opt. L2 - Italian manual
- DPO2014B - Opt. L3 - German manual
- DPO2014B - Opt. L4 - Spanish manual
- DPO2014B - Opt. L5 - Japanese manual
- DPO2014B - Opt. L6 - Portuguese manual
- DPO2014B - Opt. L7 - Simplified Chinese manual
- DPO2014B - Opt. L8 - Traditional Chinese manual
- DPO2014B - Opt. L9 - Korean manual
- DPO2014B - Opt. L10 - Russian manual
- DPO2014B - Opt. L99 - No manual
- DPO2014B - Opt. D1 - Calibration Data Report
| Model | DPO2014B |
|---|

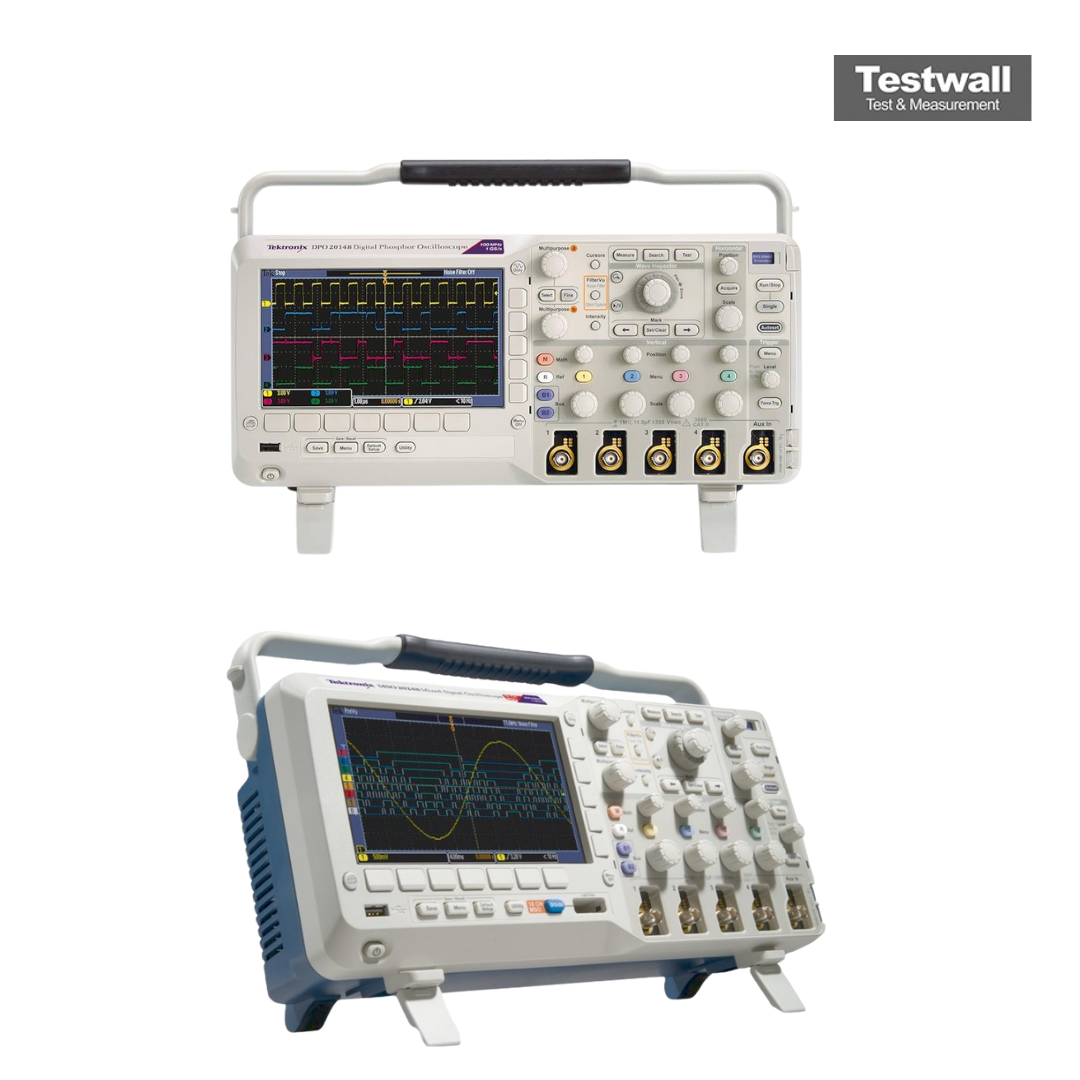

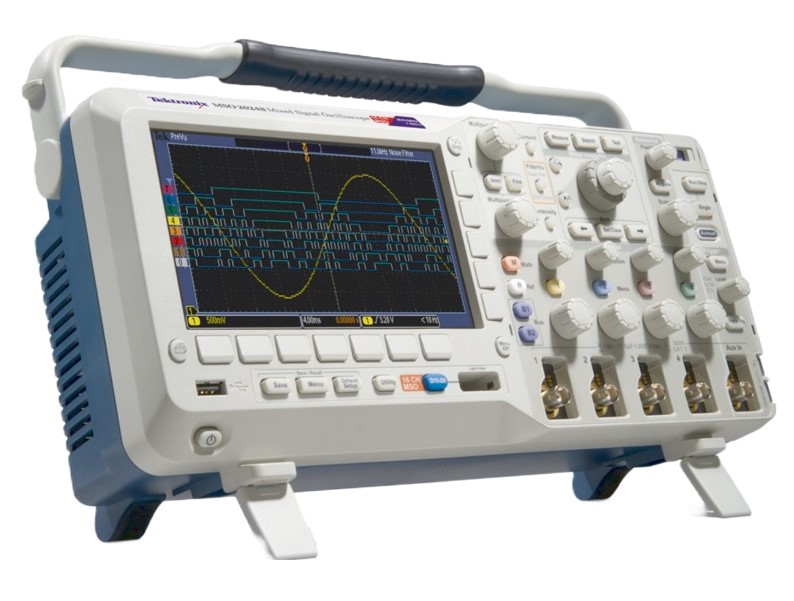

Tektronix DPO2014B Digital Phosphor Oscilloscope
The Tektronix DPO2014B Digital Phosphor Oscilloscope offers a robust set of features to speed every stage of debugging a design problem, from quickly discovering an anomaly and capturing it, to searching your waveform record for the event and analyzing its characteristics and device's behavior. Featuring 5,000 wfm/s maximum waveform capture rate Tektronix DPO2014B Oscilloscope enables you to see glitches and other infrequent transients quickly, revealing the true nature of device faults.
The Tektronix DPO2014B Digital Phosphor Oscilloscope provides a complete set of triggers, including runt, logic, pulse width/glitch, setup/hold violation, serial packet, and parallel data to help quickly find anyr event. Wave Inspector controls of DPO2014B provide easy navigation and automated search of waveform data. This device also features 29 automated measurements, and FFT analysis for simplified waveform analysis. FilterVu variable low-pass filter of this device allows removal of unwanted signal noise while still capturing high-frequency events. Tektronix DPO2014B Digital Phosphor Oscilloscope is having 7 inch (180 mm) wide-screen TFT-LCD color display for seeing intricate signal details. TekVPI probe interface supports active, differential, and cur probes for automatic scaling and units.
Specifications for the Tektronix DPO2014B Digital Phosphor Oscilloscope Include:
| Analog Channels | 4 |
| Bandwidth | 100 MHz |
| Rise time | 3.5 ns |
| Sample rate | 1 GS/s |
