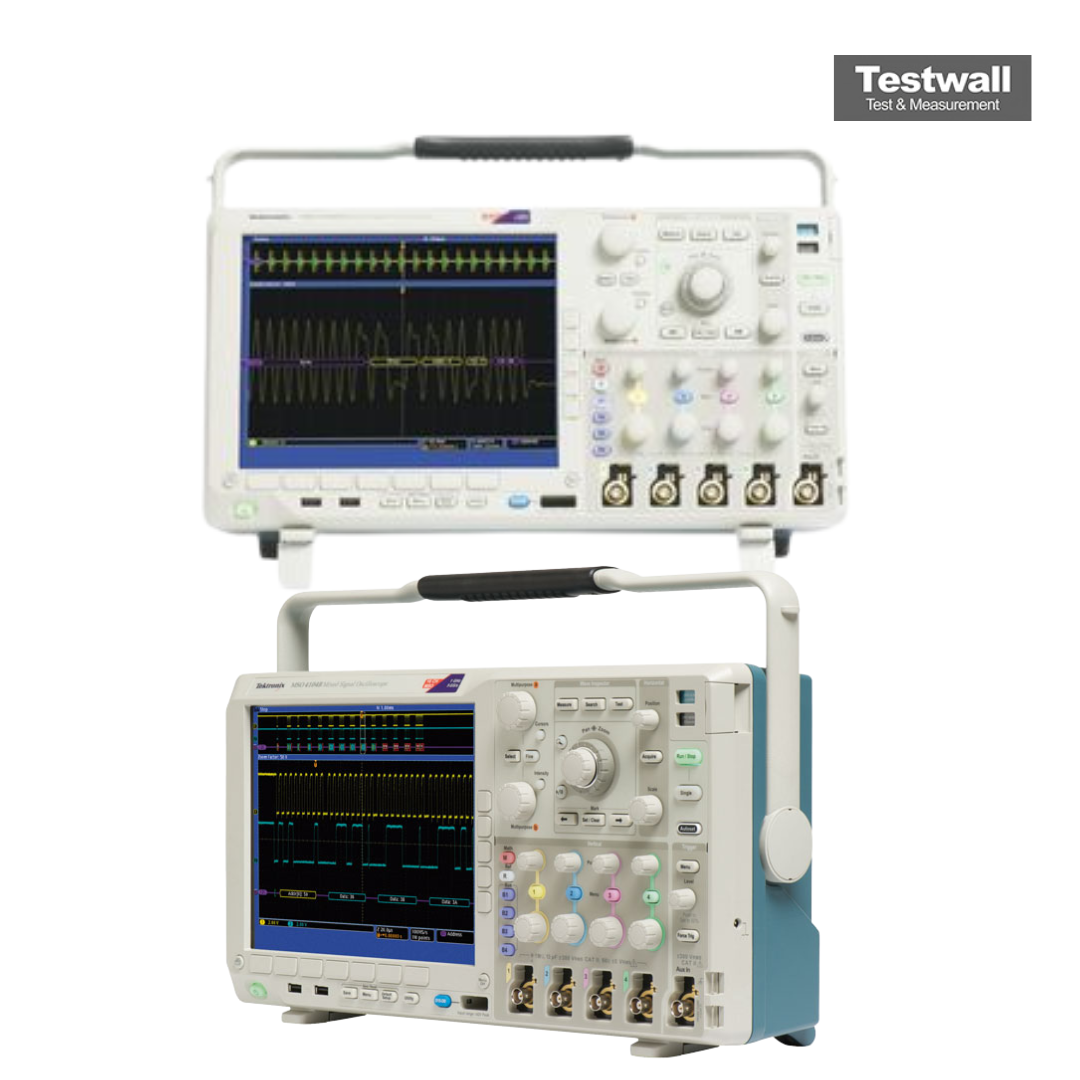

Tektronix MSO4014B
Mixed Signal Oscilloscope, 100 MHz 4 + 16 Ch., 2.5 GS/s
4 voies analogiques + 16 voies logiques numériques Nombre de voies
100 MHz Bande passante
2,5 GS/s (sur toutes les voies) Taux d'échantillonnage
10 M points par voie Longueur d'enregistrement
8 bits Résolution verticale
| Attribut | Valeur |
|---|---|
| Nombre de voies | 4 voies analogiques + 16 voies logiques numériques |
| Bande passante | 100 MHz |
| Taux d'échantillonnage | 2,5 GS/s (sur toutes les voies) |
| Longueur d'enregistrement | 10 M points par voie |
| Résolution verticale | 8 bits |
| Taux de capture des formes d'onde | jusqu'à 50 000 formes d'onde par seconde |
| Écran | Écran couleur TFT LCD 10,4 pouces (264 mm) |
| Sensibilité verticale | 1 mV/div à 10 V/div |
| Base de temps | 1 ns/div à 1000 s/div |
| Interfaces de communication | USB, LAN (LXI), GPIB (en option) |
Tektronix MSO4014B Options:
- MDO4000C - MDO4AFG - Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation
- MDO4000C - MDO4MSO - 16 digital channels; includes P6616 digital probe and accessories
- MDO4000C - SA3 - Integrated spectrum analyzer with frequency range of 9 kHz to 3 GHz
- MDO4000C - SA6 - Integrated spectrum analyzer with frequency range of 9 kHz to 6 GHz
- MDO4000C - MDO4SEC - Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality
- MDO4000C - A0 - North America power plug (115 V, 60 Hz)
- MDO4000C - A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO4000C - A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO4000C - A3 - Australia power plug (240 V, 50 Hz)
- MDO4000C - A5 - Switzerland power plug (220 V, 50 Hz)
- MDO4000C - A6 - Japan power plug (100 V, 50/60 Hz)
- MDO4000C - A10 - China power plug (50 Hz)
- MDO4000C - A11 - India power plug (50 Hz)
- MDO4000C - A12 - Brazil power plug (60 Hz)
- MDO4000C - A99 - No power cord
- MDO4000C - L0 - English front panel label
- MDO4000C - L1 - French front panel overlay
- MDO4000C - L2 - Italian front panel overlay
- MDO4000C - L3 - German front panel overlay
- MDO4000C - L4 - Spanish front panel overlay
- MDO4000C - L5 - Japanese front panel overlay
- MDO4000C - L6 - Portuguese front panel overlay
- MDO4000C - L7 - Simplified Chinese front panel overlay
- MDO4000C - L8 - Traditional Chinese front panel overlay
- MDO4000C - L9 - Korean front panel overlay
- MDO4000C - L10 - Russian front panel overlay
- MDO4000C - C3 - Calibration Service 3 Years
- MDO4000C - C5 - Calibration Service 5 Years
- MDO4000C - D1 - Calibration Data Report
- MDO4000C - D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO4000C - D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO4000C - R5 - Repair Service 5 Years (including warranty)
- MDO4000C - T3 - Three year total protection plan ensures that your equipment remains like-new regardless of what happens
- MDO4000C - T5 - Five year total protection plan ensures that your equipment remains like-new regardless of what happens
- MDO4000C - MDO4SA3 - Add integrated spectrum analyzer with input frequency range of 9 kHz to 3 GHz (post-purchase)
- MDO4000C - MDO4SA6 - Add integrated spectrum analyzer with input frequency range of 9 kHz to 6 GHz (post-purchase)
- MDO4000C - MDO4SA3T6 - 3 GHz to 6 GHz spectrum analyzer upgrade for MDO4000C
- MDO4000C - MDO4BW2T34 - Bandwidth upgrade 200 MHz to 350 MHz (no spectrum analyzer)
- MDO4000C - MDO4BW2T54 - Bandwidth upgrade 200 MHz to 500 MHz (no spectrum analyzer)
- MDO4000C - MDO4BW2T104 - Bandwidth upgrade 200 MHz to 1 GHz (no spectrum analyzer)
- MDO4000C - MDO4BW3T54 - Bandwidth upgrade 350 MHz to 500 MHz (no spectrum analyzer)
- MDO4000C - MDO4BW3T104 - Bandwidth upgrade 350 MHz to 1 GHz (no spectrum analyzer)
- MDO4000C - MDO4BW5T104 - Bandwidth upgrade 500 MHz to 1 GHz (no spectrum analyzer)
- MDO4000C - MDO4BW2T34-SA - Bandwidth upgrade 200 MHz to 350 MHz (with spectrum analyzer)
- MDO4000C - MDO4BW2T54-SA - Bandwidth upgrade 200 MHz to 500 MHz (with spectrum analyzer)
- MDO4000C - MDO4BW2T104-SA - Bandwidth upgrade 200 MHz to 1 GHz (with spectrum analyzer)
- MDO4000C - MDO4BW3T54-SA - Bandwidth upgrade 350 MHz to 500 MHz (with spectrum analyzer)
- MDO4000C - MDO4BW3T104-SA - Bandwidth upgrade 350 MHz to 1 GHz (with spectrum analyzer)
- MDO4000C - MDO4BW5T104-SA - Bandwidth upgrade 500 MHz to 1 GHz (with spectrum analyzer)
| Model | MSO4014B |
|---|
L’oscilloscope mixte Tektronix MSO4014B offre 4 canaux analogiques et 16 numériques, une bande passante de 100 MHz et un taux d’échantillonnage de 5 GS/s. Avec une mémoire de 20M points et une fréquence d’acquisition de >340 000 formes d’onde/s, il garantit une analyse précise. Ses déclenchements avancés, navigation Wave Inspector® et prise en charge de bus série facilitent le débogage complexe.
Conçu pour détecter rapidement les anomalies, le MSO4014B prend en charge l’analyse FFT, le déclenchement automatisé et dispose d’un écran XGA 10,4", parfait pour les tests avancés.
Testwall peut fournir le Tektronix MSO4014B d’occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit des instruments de haute performance, fiables et de qualité. Contactez-nous si vous avez besoin d’une calibration ou d’une réparation du Tektronix MSO4014B.
