Tektronix

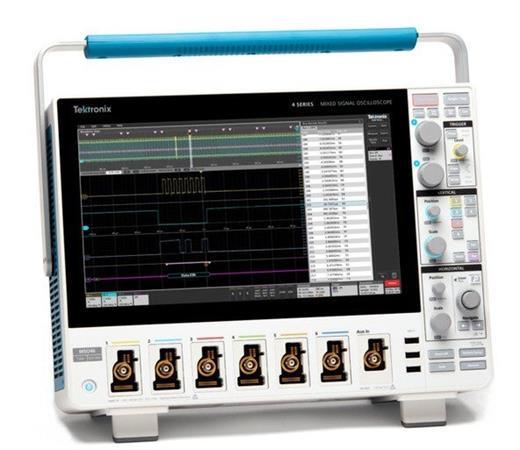

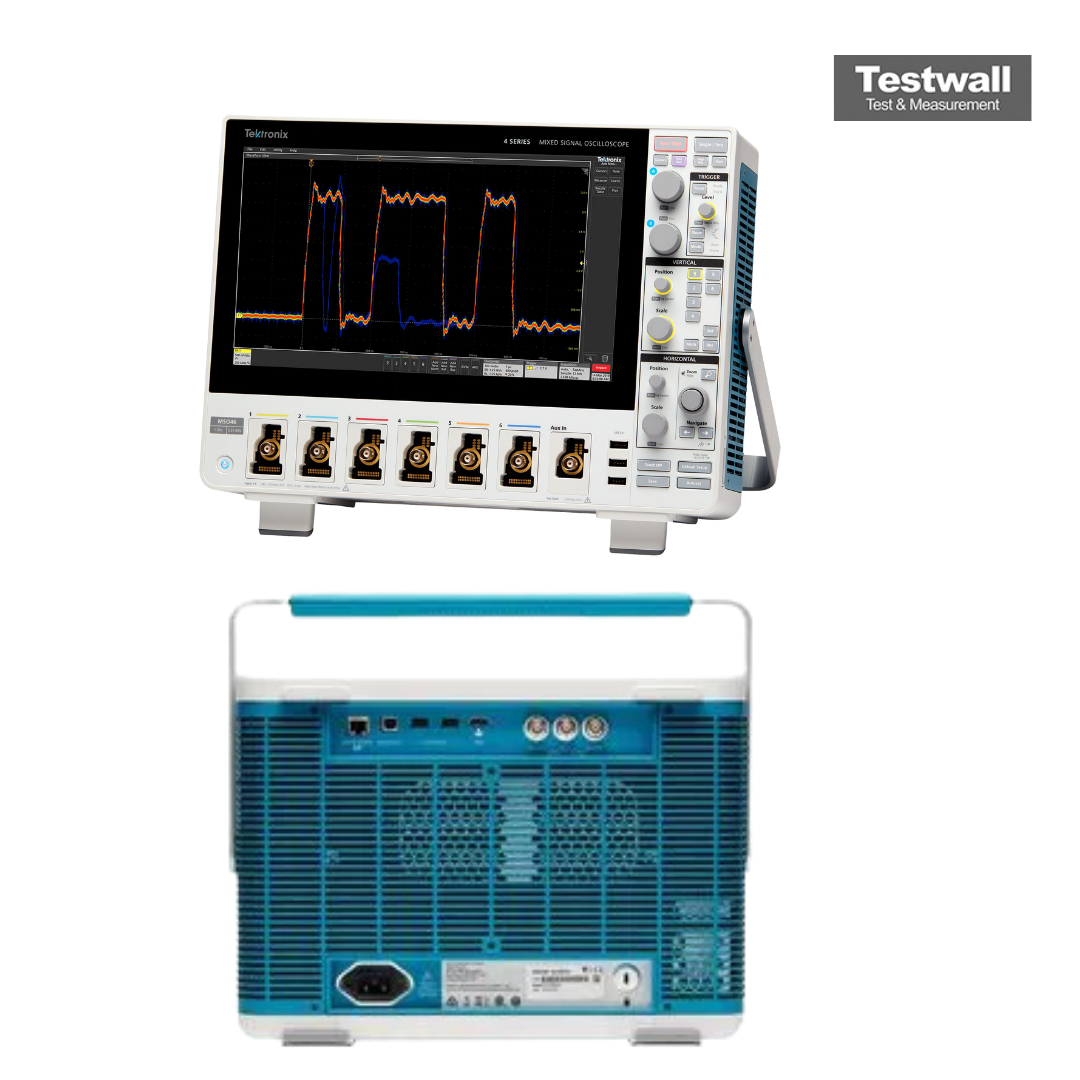

Tektronix MSO44 4-BW-500 4 Series MSO
4 Channel Mixed Domain Oscilloscope, 500 MHz
500 MHz Largeur de bande
4 Nombre de voies analogiques
6,25 GS/s Taux d'échantillonnage
31,25 M points Longueur d'enregistrement
12 bits Résolution verticale
| Attribut | Valeur |
|---|---|
| Largeur de bande | 500 MHz |
| Nombre de voies analogiques | 4 |
| Taux d'échantillonnage | 6,25 GS/s |
| Longueur d'enregistrement | 31,25 M points |
| Résolution verticale | 12 bits |
| Voies numériques (MSO) | 32 voies logiques optionnelles |
| Taille de l'écran | 13,3 pouces (1920 x 1080 pixels) |
| Fréquence de mise à jour des formes d'onde | 500 000 formes d'onde par seconde |
| Interface de connectivité | USB, LAN (LXI), DisplayPort |
| Sensibilité verticale | 1 mV/div à 10 V/div |
Tektronix MSO44 4-BW-500 4 Series MSO Options:
- MSO44 - 4-BW-200 - 200 MHz Bandwidth
- MSO44 - 4-BW-350 - 350 MHz Bandwidth
- MSO44 - 4-BW-500 - 500 MHz Bandwidth
- MSO44 - 4-BW-1000 - 1 GHz Bandwidth
- MSO44 - 4-BW-1500 - 1.5 GHz Bandwidth
- MSO44 - 4-RL-1 - Extend record length from 31.25 Mpoints/channel to 62.5 Mpoints/channel
- MSO44 - 4-AFG - Add Arbitrary / Function Generator
- MSO44 - 4-SEC - Add enhanced security for instrument declassification and password protected enabling and disabling of all USB and Ethernet ports and firmware upgrade
- MSO44 - 4-SRAERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- MSO44 - 4-SRAUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO44 - 4-SRAUTO - Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO44 - 4-SRAUTOSEN - Automotive sensor serial triggering and analysis (SENT)
- MSO44 - 4-SRCOMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- MSO44 - 4-SREMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO44 - 4-SRENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO44 - 4-SRI3C - MIPI I3C serial analysis (I3C decode and search only)
- MSO44 - 4-SRPM - Power Management serial triggering and analysis (SPMI)
- MSO44 - 4-SRUSB2 - USB serial bus triggering and analysis (USB2.0 LS, FS, HS)
- MSO44 - 4-PWR-BAS - Power Measurements and Analysis
- MSO44 - 4-SV-BAS - Spectrum View frequency domain analysis
- MSO44 - 4-PS2 - Power Solution Bundle (4-PWR-BAS, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
- MSO44 - A0 - North America power plug (115 V, 60 Hz)
- MSO44 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO44 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO44 - A3 - Australia power plug (240 V, 50 Hz)
- MSO44 - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO44 - A6 - Japan power plug (100 V, 50/60 Hz)
- MSO44 - A10 - China power plug (50 Hz)
- MSO44 - A11 - India power plug (50 Hz)
- MSO44 - A12 - Brazil power plug (60 Hz)
- MSO44 - A99 - No power cord
- MSO44 - T3 - Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS
- MSO44 - T5 - Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS
- MSO44 - R5 - Standard Warranty Extended to 5 Years
- MSO44 - C3 - Calibration service 3 Years
- MSO44 - C5 - Calibration service 5 Years
- MSO44 - D1 - Calibration Data Report
- MSO44 - D3 - Calibration Data Report 3 Years (with Option C3)
- MSO44 - D5 - Calibration Data Report 5 Years (with Option C5)
| Model | MSO44 |
|---|
Testwall peut fournir l'instrument d'occasion Tektronix MSO44 4-BW-500, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit des performances élevées avec une fiabilité et une qualité de service inégalées. Veuillez nous contacter directement si vous avez besoin d'un étalonnage ou d'une réparation du Tektronix MSO44 4-BW-500.
