Tektronix
Tektronix MSO54B
Mixed Signal Oscilloscope, 350 MHz up to 2 GHz, 4 Flexchannels, 6.25 GS/s
500 MHz Bande passante
4 voies Nombre de voies analogiques
6,25 GS/s Taux d'échantillonnage
31,25 M points par voie Longueur de l'enregistrement
12 bits (16 bits en mode haute résolution) Résolution verticale
| Attribut | Valeur |
|---|---|
| Bande passante | 500 MHz |
| Nombre de voies analogiques | 4 voies |
| Taux d'échantillonnage | 6,25 GS/s |
| Longueur de l'enregistrement | 31,25 M points par voie |
| Résolution verticale | 12 bits (16 bits en mode haute résolution) |
| Voies logiques numériques | jusqu'à 48 voies numériques (avec sondes optionnelles FlexChannel) |
| Taux de capture des formes d'onde | 500 000 formes d'onde par seconde |
| Taille de l'écran | 15,6 pouces (écran tactile HD capacitif) |
| Analyses de protocoles intégrées | I2C, SPI, RS-232/422/485/UART, CAN, LIN, FlexRay, USB, Ethernet, et autres |
| Connectivité | USB, LAN (LXI), DisplayPort, entrée/sortie auxiliaire |
Tektronix MSO54B Options:
- MSO54B - 5-STARTER-1Y - Starter Bundle (1-year): Includes I2C, SPI, RS-232/422/UART serial trigger and analysis, AFG (Arbitrary/Function Generator)
- MSO54B - 5-STARTER-PER - Starter Bundle (Perpetual): Includes I2C, SPI, RS-232/422/UART serial trigger and analysis, AFG (Arbitrary/Function Generator)
- MSO54B - 5-PRO-SERIAL-1Y - Pro Serial Bundle (1-year): Includes 5-STARTER plus 125 MS/ch record length, additional select serial analysis options
- MSO54B - 5-PRO-SERIAL-PER - Pro Serial Bundle (Perpetual): Includes 5-STARTER plus 125 MS/ch record length, additional select serial analysis options
- MSO54B - 5-PRO-POWER-1Y - Pro Power Bundle (1-year): Includes 5-STARTER plus 125 MS/ch record length, select power analysis options
- MSO54B - 5-PRO-POWER-PER - Pro Power Bundle (Perpetual): Includes 5-STARTER plus 125 MS/ch record length, select power analysis options
- MSO54B - 5-PRO-SIGNAL-1Y - Pro Signal Bundle (1-year): Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter and select analysis options
- MSO54B - 5-PRO-SIGNAL-PER - Pro Signal Bundle (Perpetual): Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter and select analysis options
- MSO54B - 5-PRO-COMPL-1Y - Pro Compliance Bundle (1-year): Includes 5-STARTER plus 125 MS/ch record length, advanced select automated compliance test options
- MSO54B - 5-PRO-COMPL-PER - Pro Compliance Bundle (Perpetual): Includes 5-STARTER plus 125 MS/ch record length, advanced select automated compliance test options
- MSO54B - 5-PRO-AUTO-1Y - Pro Automotive Bundle (1-year): Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter and select automotive analysis options
- MSO54B - 5-PRO-AUTO-PER - Pro Automotive Bundle (Perpetual): Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter and select automotive analysis options
- MSO54B - 5-PRO-MILGOV-1Y - Pro Military/Government Bundle (1-year): Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter, mask test, and select serial analysis options
- MSO54B - 5-PRO-MILGOV-PER - Pro Military/Government Bundle (Perpetual): Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter, mask test, and select serial analysis options
- MSO54B - 5-ULTIMATE-1Y - Ultimate Bundle (1-year): Includes 5-STARTER, all 5-PRO bundle options plus 500 MS/ch record length, RF vs. Time traces, triggers, Spectrograms, and IQ capture, extended Spectrum View capture bandwidth, and video trigger options
- MSO54B - 5-ULTIMATE-PER - Ultimate Bundle (Perpetual): Includes 5-STARTER, all 5-PRO bundle options plus 500 MS/ch record length, RF vs. Time traces, triggers, Spectrograms, and IQ capture, extended Spectrum View capture bandwidth, and video trigger options
- MSO54B - 5-STARTER-MNT-1Y - Perpetual Starter Bundle updates for 1 Year
- MSO54B - 5-PRO-MNT-1Y - Perpetual Pro Bundle updates for 1 Year
- MSO54B - 5-ULTIMATE-MNT-1Y - Perpetual Ultimate Bundle updates for 1 Year
- MSO54B - 5-BW-350 - 350 MHz Bandwidth
- MSO54B - 5-BW-500 - 500 MHz Bandwidth
- MSO54B - 5-BW-1000 - 1 GHz Bandwidth
- MSO54B - 5-BW-2000 - 2 GHz Bandwidth
- MSO54B - 5-RL-125M - Extend record length from 62.5 Mpoints/channel to 125 Mpoints/channel
- MSO54B - 5-RL-250M - Extend record length from 62.5 Mpoints/channel to 250 Mpoints/channel
- MSO54B - 5-RL-500M - Extend record length from 62.5 Mpoints/channel to 500 Mpoints/channel
- MSO54B - 5B-WIN - Add removable SSD with Microsoft Windows 10 operating system license
- MSO54B - 5-AFG - Add Arbitrary / Function Generator
- MSO54B - 5-SEC - Add enhanced security for instrument declassification and password-protected enabling and disabling of all USB ports and firmware upgrade
- MSO54B - 5-RFNFC - ISO/IEC 15693 and ISO/IEC14443A (decode and search only)
- MSO54B - 5-SRAERO - Aerospace (MIL-STD-1553, ARINC 429)
- MSO54B - 5-SRAUDIO - Audio (I2S, LJ, RJ, TDM)
- MSO54B - 5-SRAUTO - Automotive (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO54B - 5-SRAUTOEN1 - 100BASE-T1 Automotive Ethernet serial analysis
- MSO54B - 5-SRAUTOSEN - Automotive sensor (SENT)
- MSO54B - 5-SRCOMP - Computer (RS-232/422/485/UART)
- MSO54B - 5-SRCPHY - MIPI C-PHY Vx.x (DSI-2, CSI-2 decode and search only)
- MSO54B - 5-SRCXPI - CXPI (decode and search only)
- MSO54B - 5-SRDPHY - MIPI D-PHY (DSI-1, CSI-2 decode and search only)
- MSO54B - 5-SREMBD - Embedded (I2C, SPI)
- MSO54B - 5-SRENET - Ethernet (10BASE-T, 100BASE-TX)
- MSO54B - 5-SRESPI - eSPI (decode and search only)
- MSO54B - 5-SRETHERCAT - EtherCAT (decode and search only)
- MSO54B - 5-SR8B10B - 8B/10B (decode and search only)
- MSO54B - 5-SRI3C - MIPI I3C
- MSO54B - 5-SRMANCH - Manchester (decode and search only)
- MSO54B - 5-SRMDIO - MDIO (decode and search only)
- MSO54B - 5-SRNRZ - NRZ (decode and search only)
- MSO54B - 5-SRONEWIRE - One wire (1-Wire decode and search only)
- MSO54B - 5-SRPM - Power Management (SPMI)
- MSO54B - 5-SRPSI5 - PSI5 (decode and search only)
- MSO54B - 5-SRSDLC - Synchronous Data Link Control Protocol Decode & Search
- MSO54B - 5-SRSMBUS - SMBus (decode and search only)
- MSO54B - 5-SRSPACEWIRE - Spacewire (decode and search only)
- MSO54B - 5-SRSVID - SVID
- MSO54B - 5-SRUSB2 - USB (USB2.0 LS, FS, HS)
- MSO54B - 5-SREUSB2 - eUSB2.0 (decode and search only)
- MSO54B - 5-CMAUTOEN - Automotive Ethernet (100Base-T1, 1000Base-T1) automated compliance test solution
- MSO54B - 5-CMAUTOEN10 - Automotive Ethernet (10BASE-T1S Short Reach) automated compliance test solution
- MSO54B - 5-AUTOEN-BND - Automotive Ethernet Compliance, Signal Separation, PAM3 Analysis, 100Base-T1 Decode software (requires options 5-DJA)
- MSO54B - 5-AUTOEN-SS - Automotive Ethernet Signal Separation
- MSO54B - 5-CMINDUEN10 - Industrial Ethernet (10Base-T1L Long Reach) automated compliance test solution
- MSO54B - 5-CMENET - Ethernet automated compliance test solution (10BASE-T/100BASE-T/1000BASE-T)
- MSO54B - 5-CMENETML - Multilane Ethernet (10Base-T, 100Base-T, 1000Base-T) automated compliance test solution
- MSO54B - 5-CMUSB2 - USB2.0 automated compliance test solution
- MSO54B - 5-DBLVDS - TekExpress automated LVDS test solution (requires options 5-DJA and 5B-WIN)
- MSO54B - 5-DJA - Advanced Jitter and Eye Analysis
- MSO54B - 5-DPM - Digital Power Management
- MSO54B - 5-DPMBAS - Basic Digital Power Management
- MSO54B - 5-MTM - Mask and Limit testing
- MSO54B - 5-PAM3 - PAM3 analysis (requires options 5-DJA and 5B-WIN)
- MSO54B - 5-PWR - Power Measurement and Analysis
- MSO54B - 5-SV-BW-1 - Increase Spectrum View Capture Bandwidth to 500 MHz
- MSO54B - 5-SV-RFVT - Spectrum View RF vs. Time traces, triggers, Spectrograms, and IQ capture
- MSO54B - 5-UDFLT - User Defined Filter Creation Tool
- MSO54B - 5-VID - NTSC, PAL, and SECAM video triggering
- MSO54B - 5-WBG-DPT - Wide Bandgap SiC/GaN Double Pulse Test Measurements and Analysis
- MSO54B - A0 - North America power plug (115 V, 60 Hz)
- MSO54B - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO54B - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO54B - A3 - Australia power plug (240 V, 50 Hz)
- MSO54B - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO54B - A6 - Japan power plug (100 V, 50/60 Hz)
- MSO54B - A10 - China power plug (50 Hz)
- MSO54B - A11 - India power plug (50 Hz)
- MSO54B - A12 - Brazil power plug (60 Hz)
- MSO54B - A99 - No power cord
- MSO54B - T3 - Three-year Total Product Protection, includes repair or replacement coverage from wear and tear, accidental damage, ESD or Electrical Over-stress plus standard warranty extended to 3 years
- MSO54B - R3 - Standard warranty extended to 3 years
- MSO54B - C3 - Calibration service for 3 years
- MSO54B - T5 - Five-year Total Product Protection, includes repair or replacement coverage from wear and tear, accidental damage, ESD or Electrical Overstress plus standard warranty extended to 5 years
- MSO54B - R5 - Standard warranty extended to 5 years
- MSO54B - C5 - Calibration service for 5 years
- MSO54B - SUP5B-BW4 / 5B-BW3T5-4 - Bandwidth Upgrade: 350 MHz to 500 MHz on 4 FlexChannel model
- MSO54B - SUP5B-BW4 / 5B-BW3T10-4 - Bandwidth Upgrade: 350 MHz to 1 GHz on 4 FlexChannel model
- MSO54B - SUP5B-BW4 / 5B-BW5T10-4 - Bandwidth Upgrade: 500 MHz to 1 GHz on 4 FlexChannel model
- MSO54B - SUP5B-BW10T204 - Bandwidth Upgrade: 1 GHz to 2 GHz on 4 FlexChannel model
- MSO54B - SUP5B-BW3T204 - Bandwidth Upgrade: 350 MHz to 2 GHz on 4 FlexChannel model
- MSO54B - SUP5B-BW5T204 - Bandwidth Upgrade: 500 MHz to 2 GHz on 4 FlexChannel model
| Model | MSO54B |
|---|

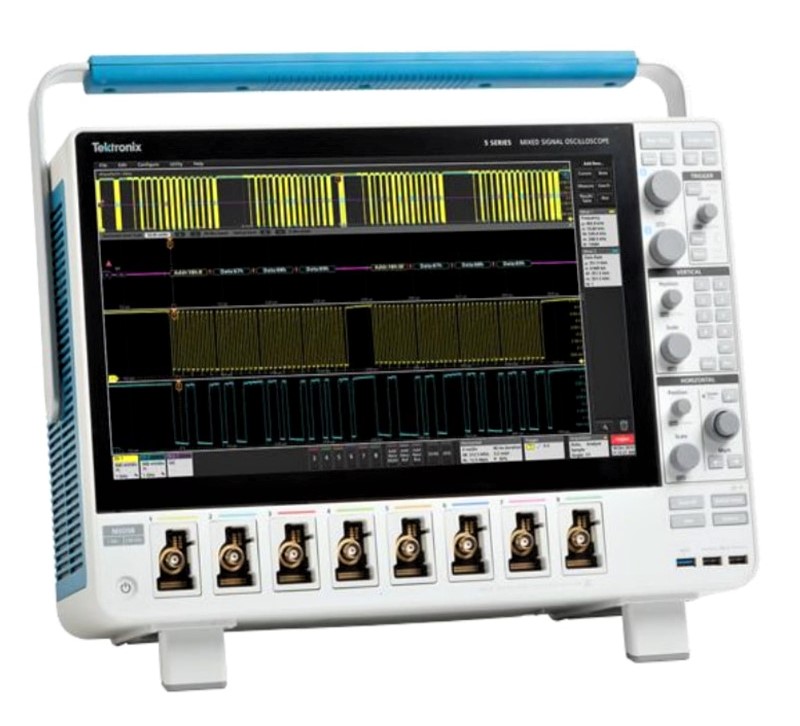

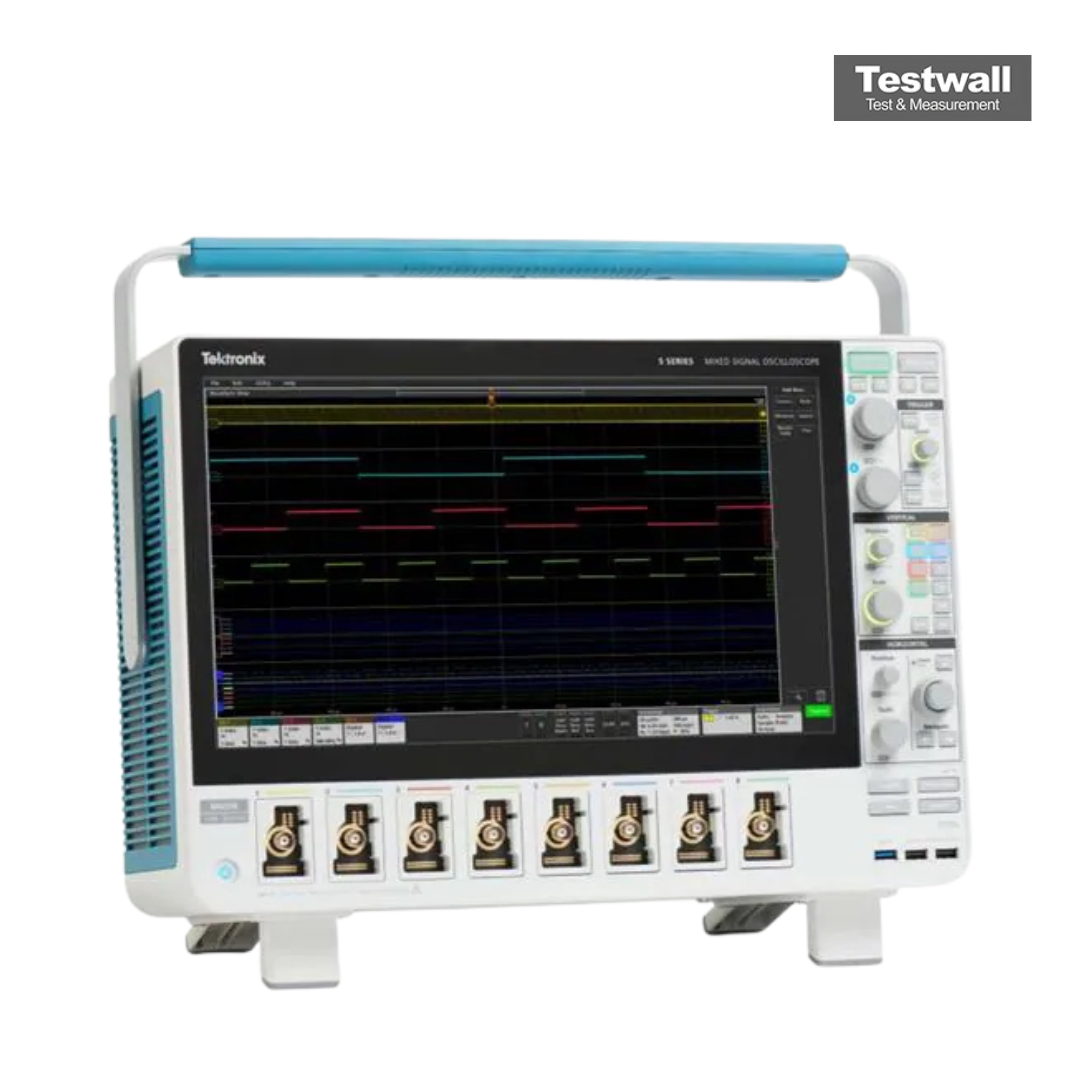

TEKTRONIX MSO54B Mixed Signal Oscilloscope
The Tektronix MSO54B offers an advanced Mixed Signal Oscilloscope solution, providing better visibility into complex systems with four analog channels, featuring a large 15.6-inch high-definition display. This scope is ideal for applications such as embedded systems, automotive electronics, power supply design, and more, where multiple analog signals need to be observed and characterized for device performance verification and system debugging. The FlexChannel technology enables each input to be used as a single analog channel, eight digital logic inputs (with the TLP058 logic probe), or as simultaneous analog and spectrum views. The Tektronix MSO54B Mixed Signal Oscilloscope redefines oscilloscope capabilities with its flexibility and configurability, providing users with ample options to view and analyze waveforms efficiently.
The MSO54B Mixed Signal Oscilloscope excels in performance, featuring up to 2 GHz analog bandwidth, 6.25 GS/s sample rates, and a 12-bit analog-to-digital converter, providing accurate signal fidelity and resolution for precise waveform analysis. It employs Digital Phosphor technology with FastAcq for fast waveform capture, enabling the observation of infrequent and complex system problems. The oscilloscope also offers comprehensive triggering options, including Visual Trigger, which scans through all acquisitions and triggers based on on-screen geometric shapes. With the TekVPI probe interface and IsoVu Isolated Measurement System, the MSO54B ensures precise and reliable measurements while minimizing the effects of common mode interference. Overall, this oscilloscope provides an intuitive user interface, powerful analysis tools, and extensive search and navigation capabilities, making it an excellent choice for demanding measurement and debugging tasks in various applications.
Specifications for the TEKTRONIX MSO54B Mixed Signal Oscilloscope Include:
| Bandwidth | 2 GHz |
| Channels | 4 analog/32 digital ch. |
| Sample Rate | 6.25 GS/s on all analog/digital ch. |
| Record Length | 62.5 Mpoints on all analog/digital ch. |
