Tektronix

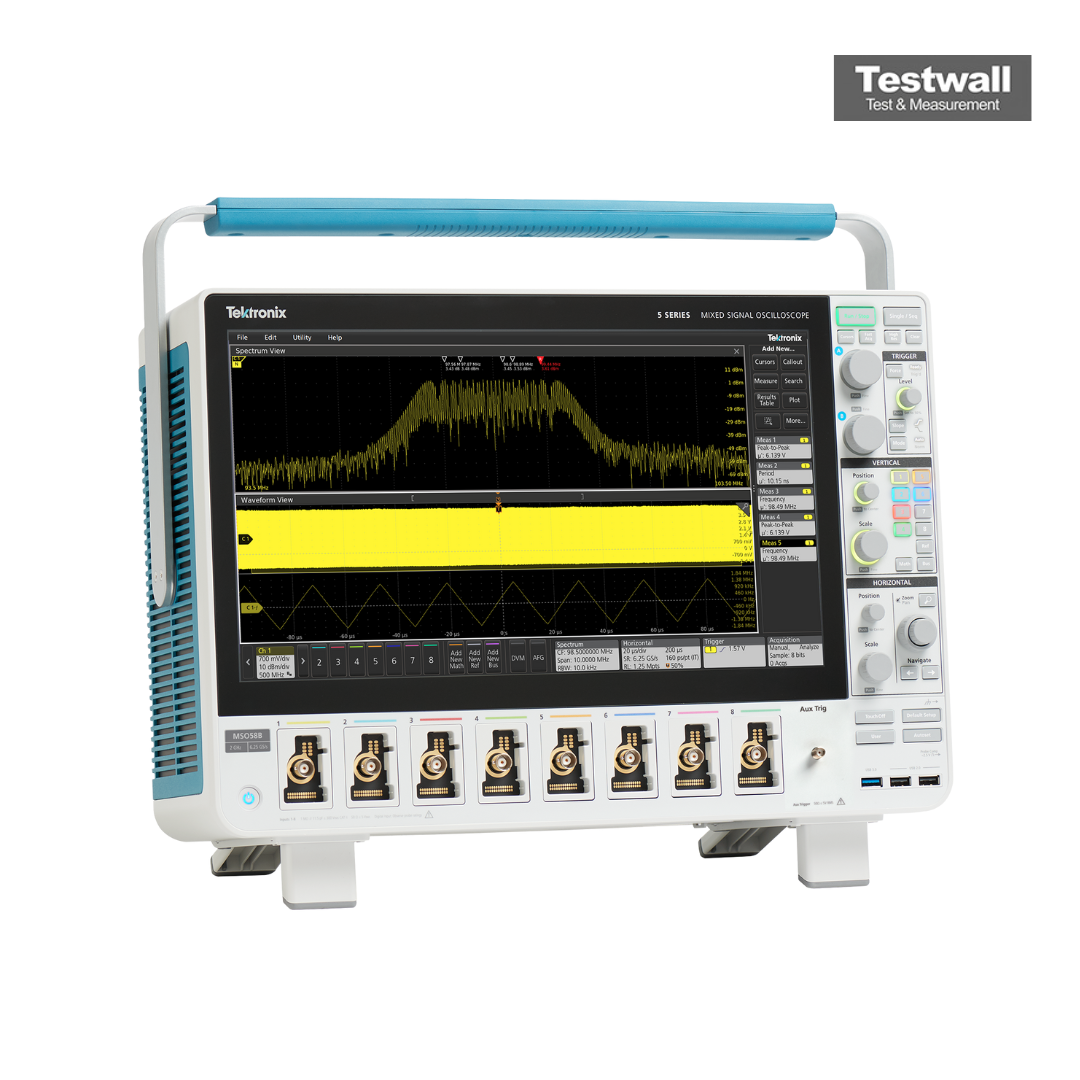

Tektronix MSO58B
Mixed Signal Oscilloscope, 350 MHz up to 2 GHz, 8 Flexchannels, 6.25 GS/s
8 voies analogiques Nombre de voies analogiques
1 GHz (extensible jusqu'à 2 GHz) Bande passante
6,25 GS/s sur toutes les voies simultanément Taux d'échantillonnage
12 bits (jusqu'à 16 bits en mode haute résolution) Résolution verticale
Jusqu'à 62,5 Mpoints par voie Longueur d'enregistrement
| Attribut | Valeur |
|---|---|
| Nombre de voies analogiques | 8 voies analogiques |
| Bande passante | 1 GHz (extensible jusqu'à 2 GHz) |
| Taux d'échantillonnage | 6,25 GS/s sur toutes les voies simultanément |
| Résolution verticale | 12 bits (jusqu'à 16 bits en mode haute résolution) |
| Longueur d'enregistrement | Jusqu'à 62,5 Mpoints par voie |
| Voies numériques | 64 voies logiques numériques (via sondes optionnelles FlexChannel) |
| Écran | Écran tactile capacitif HD 15,6 pouces (1920 x 1080) |
| Taux de capture des formes d'onde | Jusqu'à 500 000 formes d'onde par seconde |
| Analyses série intégrées | Décodage de protocoles série : I2C, SPI, USB, CAN, LIN, RS-232/422/485, et autres |
| Connectivité et interfaces | USB 3.0, port LAN (1000BASE-T), DisplayPort, Wi-Fi en option |
Tektronix MSO58B Options:
- MSO58B - 5-STARTER-1Y - Starter Bundle 1-Year License: Includes I2C, SPI, RS-232/422/UART serial trigger and analysis, AFG (Arbitrary/Function Generator)
- MSO58B - 5-STARTER-PER - Starter Bundle Perpetual License: Includes I2C, SPI, RS-232/422/UART serial trigger and analysis, AFG (Arbitrary/Function Generator)
- MSO58B - 5-PRO-SERIAL-1Y - Pro Serial Bundle 1-Year License: Includes 5-STARTER plus 125 MS/ch record length, additional select serial analysis options
- MSO58B - 5-PRO-SERIAL-PER - Pro Serial Bundle Perpetual License: Includes 5-STARTER plus 125 MS/ch record length, additional select serial analysis options
- MSO58B - 5-PRO-POWER-1Y - Pro Power Bundle 1-Year License: Includes 5-STARTER plus 125 MS/ch record length, select power analysis options
- MSO58B - 5-PRO-POWER-PER - Pro Power Bundle Perpetual License: Includes 5-STARTER plus 125 MS/ch record length, select power analysis options
- MSO58B - 5-PRO-SIGNAL-1Y - Pro Signal Bundle 1-Year License: Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter and select analysis options
- MSO58B - 5-PRO-SIGNAL-PER - Pro Signal Bundle Perpetual License: Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter and select analysis options
- MSO58B - 5-PRO-COMPL-1Y - Pro Compliance Bundle 1-Year License: Includes 5-STARTER plus 125 MS/ch record length, advanced select automated compliance test options
- MSO58B - 5-PRO-COMPL-PER - Pro Compliance Bundle Perpetual License: Includes 5-STARTER plus 125 MS/ch record length, advanced select automated compliance test options
- MSO58B - 5-PRO-AUTO-1Y - Pro Automotive Bundle 1-Year License: Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter and select automotive analysis options
- MSO58B - 5-PRO-AUTO-PER - Pro Automotive Bundle Perpetual License: Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter and select automotive analysis options
- MSO58B - 5-PRO-MILGOV-1Y - Pro Military/Government Bundle 1-Year License: Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter, mask test, and select serial analysis options
- MSO58B - 5-PRO-MILGOV-PER - Pro Military/Government Bundle Perpetual License: Includes 5-STARTER plus 125 MS/ch record length, advanced Jitter, mask test, and select serial analysis options
- MSO58B - 5-ULTIMATE-1Y - Ultimate Bundle 1-Year License: Includes 5-STARTER, all 5-PRO bundle options plus 500 MS/ch record length, RF vs. Time traces, triggers, Spectrograms, IQ capture, extended Spectrum View capture bandwidth, and video trigger options
- MSO58B - 5-ULTIMATE-PER - Ultimate Bundle Perpetual License: Includes 5-STARTER, all 5-PRO bundle options plus 500 MS/ch record length, RF vs. Time traces, triggers, Spectrograms, IQ capture, extended Spectrum View capture bandwidth, and video trigger options
- MSO58B - 5-STARTER-MNT-1Y - Perpetual Starter Bundle updates for 1 Year
- MSO58B - 5-PRO-MNT-1Y - Perpetual Pro Bundle updates for 1 Year
- MSO58B - 5-ULTIMATE-MNT-1Y - Perpetual Ultimate Bundle updates for 1 Year
- MSO58B - 5-BW-350 - 350 MHz Bandwidth
- MSO58B - 5-BW-500 - 500 MHz Bandwidth
- MSO58B - 5-BW-1000 - 1 GHz Bandwidth
- MSO58B - 5-BW-2000 - 2 GHz Bandwidth
- MSO58B - 5-RL-125M - Extend record length from 62.5 Mpoints/channel to 125 Mpoints/channel
- MSO58B - 5-RL-250M - Extend record length from 62.5 Mpoints/channel to 250 Mpoints/channel
- MSO58B - 5-RL-500M - Extend record length from 62.5 Mpoints/channel to 500 Mpoints/channel
- MSO58B - 5B-WIN - Add removable SSD with Microsoft Windows 10 operating system license
- MSO58B - 5-AFG - Add Arbitrary / Function Generator
- MSO58B - 5-SEC - Add enhanced security for instrument declassification and password-protected enabling and disabling of all USB ports and firmware upgrade
- MSO58B - 5-RFNFC - ISO/IEC 15693 and ISO/IEC14443A (decode and search only)
- MSO58B - 5-SRAERO - Aerospace (MIL-STD-1553, ARINC 429)
- MSO58B - 5-SRAUDIO - Audio (I2S, LJ, RJ, TDM)
- MSO58B - 5-SRAUTO - Automotive (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO58B - 5-SRAUTOEN1 - 100BASE-T1 Automotive Ethernet serial analysis
- MSO58B - 5-SRAUTOSEN - Automotive sensor (SENT)
- MSO58B - 5-SRCOMP - Computer (RS-232/422/485/UART)
- MSO58B - 5-SRCPHY - MIPI C-PHY Vx.x (DSI-2, CSI-2 decode and search only)
- MSO58B - 5-SRCXPI - CXPI (decode and search only)
- MSO58B - 5-SRDPHY - MIPI D-PHY (DSI-1, CSI-2 decode and search only)
- MSO58B - 5-SREMBD - Embedded (I2C, SPI)
- MSO58B - 5-SRENET - Ethernet (10BASE-T, 100BASE-TX)
- MSO58B - 5-SRESPI - eSPI (decode and search only)
- MSO58B - 5-SRETHERCAT - EtherCAT (decode and search only)
- MSO58B - 5-SR8B10B - 8B/10B (decode and search only)
- MSO58B - 5-SRI3C - MIPI I3C
- MSO58B - 5-SRMANCH - Manchester (decode and search only)
- MSO58B - 5-SRMDIO - MDIO (decode and search only)
- MSO58B - 5-SRNRZ - NRZ (decode and search only)
- MSO58B - 5-SRONEWIRE - One wire (1-Wire decode and search only)
- MSO58B - 5-SRPM - Power Management (SPMI)
- MSO58B - 5-SRPSI5 - PSI5 (decode and search only)
- MSO58B - 5-SRSDLC - Synchronous Data Link Control Protocol Decode & Search
- MSO58B - 5-SRSMBUS - SMBus (decode and search only)
- MSO58B - 5-SRSPACEWIRE - Spacewire (decode and search only)
- MSO58B - 5-SRSVID - SVID
- MSO58B - 5-SRUSB2 - USB (USB2.0 LS, FS, HS)
- MSO58B - 5-SREUSB2 - eUSB2.0 (decode and search only)
- MSO58B - 5-CMAUTOEN - Automotive Ethernet (100Base-T1, 1000Base-T1) automated compliance test solution
- MSO58B - 5-CMAUTOEN10 - Automotive Ethernet (10BASE-T1S Short Reach) automated compliance test solution
- MSO58B - 5-AUTOEN-BND - Automotive Ethernet Compliance, Signal Separation, PAM3 Analysis, 100Base-T1 Decode software (requires option 5-DJA)
- MSO58B - 5-AUTOEN-SS - Automotive Ethernet Signal Separation
- MSO58B - 5-CMINDUEN10 - Industrial Ethernet (10Base-T1L Long Reach) automated compliance test solution
- MSO58B - 5-CMENET - Ethernet automated compliance test solution (10BASE-T/100BASE-T/1000BASE-T)
- MSO58B - 5-CMENETML - Multilane Ethernet (10Base-T, 100Base-T, 1000Base-T) automated compliance test solution
- MSO58B - 5-CMUSB2 - USB2.0 automated compliance test solution
- MSO58B - 5-DBLVDS - TekExpress automated LVDS test solution (requires options 5-DJA and 5B-WIN)
- MSO58B - 5-DJA - Advanced Jitter and Eye Analysis
- MSO58B - 5-DPM - Digital Power Management
- MSO58B - 5-DPMBAS - Basic Digital Power Management
- MSO58B - 5-IMDA - Inverter Motor Drive Analysis
- MSO58B - 5-IMDA-DQ0 - DQ0 feature for Inverter Motor Drive Analysis (requires option 5-IMDA)
- MSO58B - 5-IMDA-MECH - Mechanical measurements for Inverter Motor Drive Analysis (requires option 5-IMDA)
- MSO58B - 5-MTM - Mask and Limit testing
- MSO58B - 5-PAM3 - PAM3 analysis (requires options 5-DJA and 5B-WIN)
- MSO58B - 5-PS2 - Power Solution Bundle (5-PWR, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
- MSO58B - 5-PS2FRA - Power Solution Bundle (5-PWR, THDP0200, TCP0030A, two TPP0502, 067-1686-xx deskew fixture)
- MSO58B - 5-PWR - Power Measurement and Analysis
- MSO58B - 5-SV-BW-1 - Increase Spectrum View Capture Bandwidth to 500 MHz
- MSO58B - 5-SV-RFVT - Spectrum View RF vs. Time traces, triggers, Spectrograms, and IQ capture
- MSO58B - 5-UDFLT - User Defined Filter Creation Tool
- MSO58B - 5-VID - NTSC, PAL, and SECAM video triggering
- MSO58B - 5-WBG-DPT - Wide Bandgap SiC/GaN Double Pulse Test Measurements and Analysis
- MSO58B - SUP5B-BW10T208 - Bandwidth upgrade; from 1 GHz to 2 GHz on (8) FlexChannel models of 5 Series B oscilloscopes
- MSO58B - SUP5B-BW3T208 - Bandwidth upgrade; from 350 MHz to 2 GHz on (8) FlexChannel models of 5 Series B oscilloscopes
- MSO58B - SUP5B-BW5T208 - Bandwidth upgrade; from 500 MHz to 2 GHz on (8) FlexChannel models of 5 Series B oscilloscopes
- MSO58B - T3 - Three-year Total Product Protection, includes repair or replacement coverage from wear and tear, accidental damage, ESD or Electrical Over-stress plus standard warranty extended to 3 years
- MSO58B - R3 - Standard warranty extended to 3 years
- MSO58B - C3 - Calibration service for 3 years
- MSO58B - T5 - Five-year Total Product Protection, includes repair or replacement coverage from wear and tear, accidental damage, ESD or Electrical Overstress plus standard warranty extended to 5 years
- MSO58B - R5 - Standard warranty extended to 5 years
- MSO58B - C5 - Calibration service for 5 years
- MSO58B - A0 - North America power plug (115 V, 60 Hz)
- MSO58B - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO58B - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO58B - A3 - Australia power plug (240 V, 50 Hz)
- MSO58B - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO58B - A6 - Japan power plug (100 V, 50/60 Hz)
- MSO58B - A10 - China power plug (50 Hz)
- MSO58B - A11 - India power plug (50 Hz)
- MSO58B - A12 - Brazil power plug (60 Hz)
- MSO58B - A99 - No power cord
| Model | MSO58B |
|---|

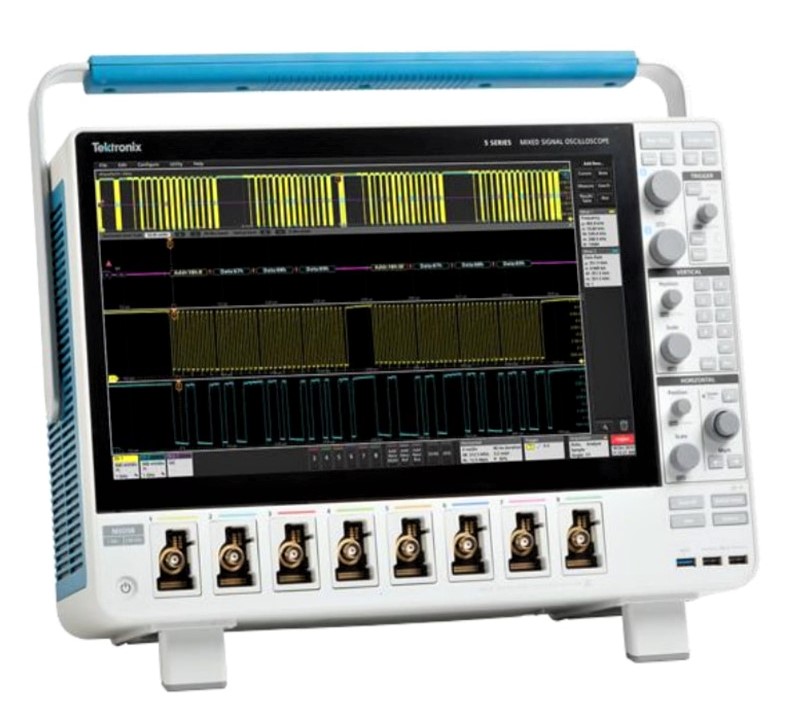

TEKTRONIX MSO58B Mixed Signal Oscilloscope
The Tektronix MSO58B offers an advanced Mixed Signal Oscilloscope solution, providing better visibility into complex systems with eight analog channels, featuring a large 15.6-inch high-definition display. This scope is ideal for applications such as embedded systems, automotive electronics, power supply design, and more, where multiple analog signals need to be observed and characterized for device performance verification and system debugging. The FlexChannel technology enables each input to be used as a single analog channel, eight digital logic inputs (with the TLP058 logic probe), or as simultaneous analog and spectrum views. The Tektronix MSO58B Mixed Signal Oscilloscope redefines oscilloscope capabilities with its flexibility and configurability, providing users with ample options to view and analyze waveforms efficiently.
The MSO58B Mixed Signal Oscilloscope excels in performance, featuring up to 2 GHz analog bandwidth, 6.25 GS/s sample rates, and a 12-bit analog-to-digital converter, providing accurate signal fidelity and resolution for precise waveform analysis. It employs Digital Phosphor technology with FastAcq for fast waveform capture, enabling the observation of infrequent and complex system problems. The oscilloscope also offers comprehensive triggering options, including Visual Trigger, which scans through all acquisitions and triggers based on on-screen geometric shapes. With the TekVPI probe interface and IsoVu Isolated Measurement System, the MSO58B ensures precise and reliable measurements while minimizing the effects of common mode interference. Overall, this oscilloscope provides an intuitive user interface, powerful analysis tools, and extensive search and navigation capabilities, making it an excellent choice for demanding measurement and debugging tasks in various applications.
Specifications for the TEKTRONIX MSO58B Mixed Signal Oscilloscope Include:
| Bandwidth | 2 GHz |
| Channels | 8 analog/64 digital ch. |
| Sample Rate | 6.25 GS/s on all analog/digital ch. |
| Record Length | 62.5 Mpoints on all analog/digital ch. |
