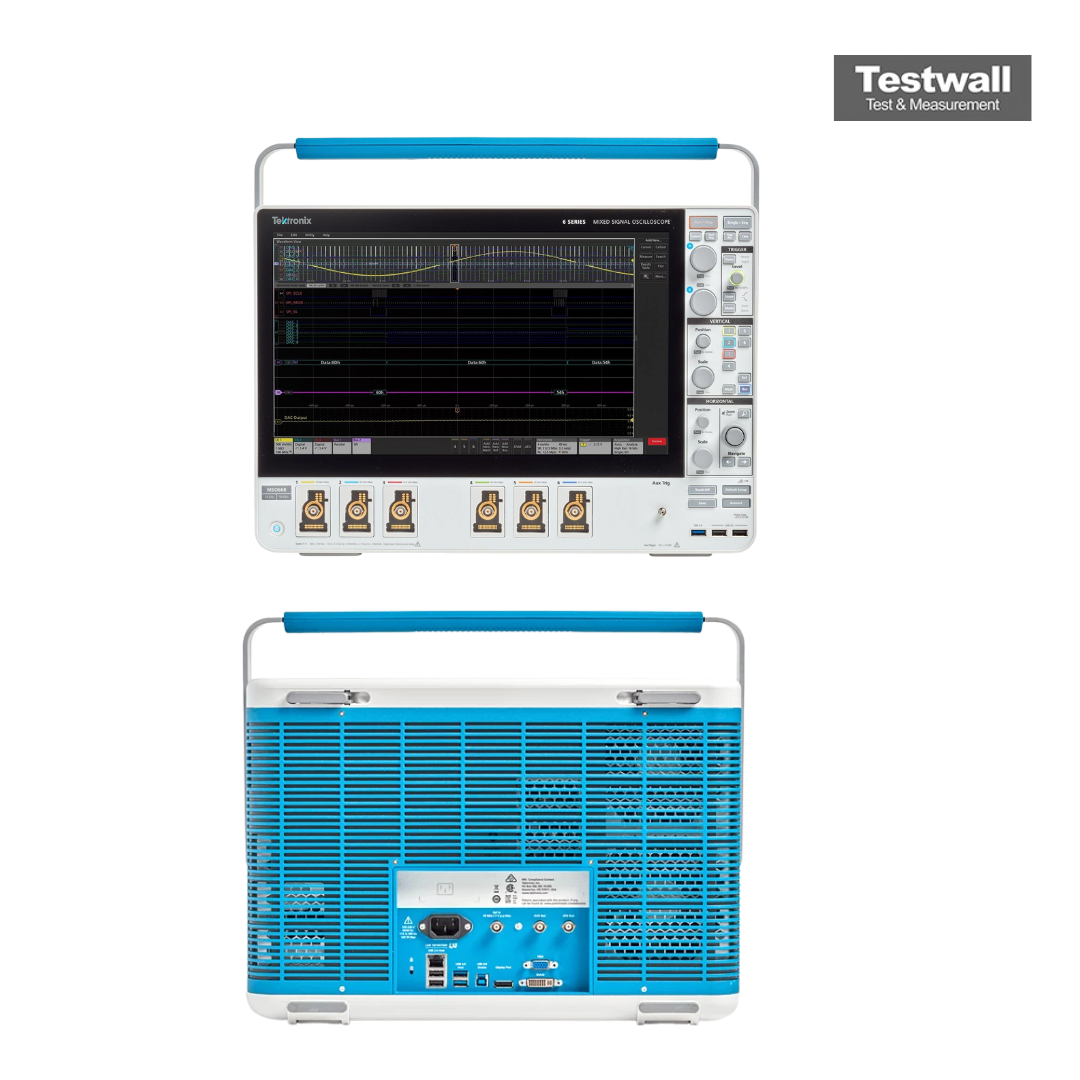

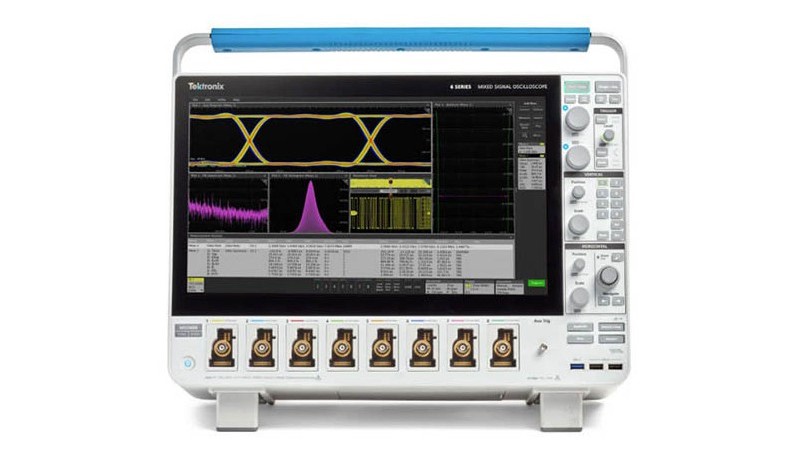

Tektronix MSO66B

 TEKTRONIX MSO66B Mixed Signal Oscilloscope

With the lowest input noise and up to 10 GHz analog bandwidth, the Tektronix MSO66B provides the best signal fidelity for analyzing and debugging today's embedded systems with GHz clock and bus speeds.  Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and Power Integrity require the observation of more than four analog signals to verify and characterize device performance and to debug challenging system issues. With the industry's largest high definition display and 4 FlexChannel inputs,  Tektronix MSO66B let you measure one analog or  four  digital signals per channel.

The Tektronix MSO66B provides the performance to capture the signals of interest while minimizing the effects of unwanted noise when you need to capture high-amplitude signals while seeing smaller signal details.  12-bit analog-to-digital converters (ADCs) provides 16 times the vertical resolution of traditional 8-bit ADCs.  A new High Res mode applies a hardware-based unique Finite Impulse Response (FIR) filter based on the selected sample rate.  The oscilloscope has a large, high-resolution color display with a user-friendly interface that makes it easy  to connect to a PC or other devices for data transfer and remote control. The Tektronix MSO66B has the performance you need to capture waveforms with the best possible signal fidelity and resolution for seeing small waveform details.

Specifications for the  TEKTRONIX MSO66B Mixed Signal Oscilloscope Include:
