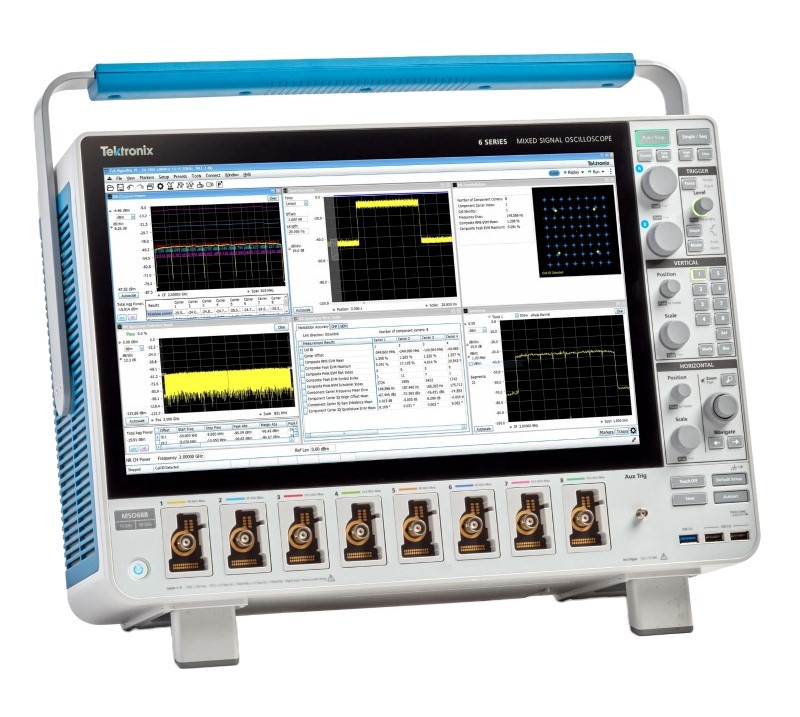

Tektronix MSO68B
| Attribut | Valeur |
|---|---|
| Nombre de voies analogiques | 8 voies analogiques |
| Bande passante | 1 GHz (extensible jusqu'à 2 GHz) |
| Taux d'échantillonnage | 6,25 GS/s sur toutes les voies simultanément |
| Résolution verticale | 12 bits (jusqu'à 16 bits en mode haute résolution) |
| Longueur de mémoire | 62,5 Mpoints standard (jusqu'à 125 Mpoints en option) |
| Voies numériques | 8 ou 16 voies logiques via sondes FlexChannel |
| Écran | Écran tactile capacitif 13,3 pouces HD (1920 x 1080 pixels) |
| Fréquence de mise à jour des formes d'onde | 500 000 formes d'onde par seconde |
| Analyses de protocoles série | Prise en charge de I²C, SPI, USB, CAN, LIN, RS-232/422/485, FlexRay, MIL-STD-1553 et autres |
| Connectivité | USB 3.0, LAN (1000BASE-T), DisplayPort, Wi-Fi en option |
Tektronix MSO68B Options:
- MSO68B - 6-BW-1000 - 1 GHz Bandwidth
- MSO68B - 6-BW-2500 - 2.5 GHz Bandwidth
- MSO68B - 6-BW-4000 - 4 GHz Bandwidth
- MSO68B - 6-BW-6000 - 6 GHz Bandwidth
- MSO68B - 6-BW-8000 - 8 GHz Bandwidth
- MSO68B - 6-BW-10000 - 10 GHz Bandwidth
- MSO68B - 6-RL-1 - Extend record length from 62.5 Mpoints/channel to 125 Mpoints/channel
- MSO68B - 6-RL-2 - Extend record length from 62.5 Mpts/channel to 250 Mpts/channel
- MSO68B - 6-RL-3 - Extend record length from 62.5 Mpoints/channel to 500 Mpoints/channel
- MSO68B - 6-RL-4 - Extend record length from 62.5 Mpoints/channel to 1 Gpoints/channel
- MSO68B - 6-AFG - Add Arbitrary / Function Generator
- MSO68B - 6-SEC - Add enhanced security for instrument declassification and password-protected enabling and disabling of all USB ports and firmware upgrade
- MSO68B - 6-WIN - Add removable SSD with Microsoft Windows 10 operating system license
- MSO68B - 6-SRAERO - Aerospace serial bus triggering, decode and analysis (MIL-STD-1553, ARINC 429)
- MSO68B - 6-SRAUDIO - Audio serial bus triggering, decode and analysis (I2S, LJ, RJ, TDM)
- MSO68B - 6-SRAUTO - Automotive serial bus triggering, decode and analysis (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO68B - 6-SRAUTOEN1 - 100BASE-T1 Automotive Ethernet serial analysis
- MSO68B - 6-SRAUTOSEN - Automotive sensor serial bus triggering, decode and analysis (SENT)
- MSO68B - 6-SRCOMP - Computer serial bus triggering, decode and analysis (RS-232/422/485/UART)
- MSO68B - 6-SRDPHY - MIPI D-PHY serial analysis (DSI-1, CSI-2 decode and search only)
- MSO68B - 6-SREMBD - Embedded serial bus triggering, decode and analysis (I2C, SPI)
- MSO68B - 6-SRENET - Ethernet serial bus triggering, decode and analysis (10BASE-T, 100BASE-TX)
- MSO68B - 6-SR8B10B - 8B/10B decode and search only
- MSO68B - 6-SRI3C - MIPI I3C decode and search only
- MSO68B - 6-SRMANCH - Manchester decode and search only
- MSO68B - 6-SRMDIO - MDIO decode and search only
- MSO68B - 6-SRNRZ - NRZ decode and search only
- MSO68B - 6-SRPM - Power Management serial bus triggering, decode and analysis (SPMI)
- MSO68B - 6-SRPSI5 - PSI5 decode and search only
- MSO68B - 6-SRSPACEWIRE - Spacewire decode and search only
- MSO68B - 6-SRSVID - SVID decode and search only
- MSO68B - 6-SRUSB2 - USB 2.0 serial bus triggering, decode and analysis (LS, FS, HS)
- MSO68B - 6-SREUSB2 - eUSB2.0 decode and search only
- MSO68B - 6-CMAUTOEN - Automotive Ethernet automated compliance test solution (100Base-T1, 1000Base-T1)
- MSO68B - 6-CMAUTOEN10 - Automotive Ethernet (10BASE-T1S Short Reach) automated compliance test solution
- MSO68B - 6-AUTOEN-BND - Automotive Ethernet Compliance, Signal Separation, PAM3 Analysis, 100Base-T1 Decode software (requires options 6-DJA and 6-WIN)
- MSO68B - 6-AUTOEN-SS - Automotive Ethernet Signal Separation
- MSO68B - 6-CMINDUEN10 - Industrial Ethernet (10Base-T1L Long Reach) automated compliance test solution
- MSO68B - 6-CMDPHY - MIPI D-DPHY 1.2 automated compliance test solution
- MSO68B - 6-CMDPHY21 - MIPI D-PHY 2.1 Tx Test automated compliance test solution (requires option 6-DJA)
- MSO68B - 6-CMENET - Ethernet automated compliance test solution (10BASE-T/100BASE-T/1000BASE-T)
- MSO68B - 6-CMENETML - Multilane Ethernet automated compliance test solution (10Base-T, 100Base-T, 1000Base-T)
- MSO68B - 6-CMNBASET - 2.5 and 5 GBASE-T Ethernet automated compliance test solution
- MSO68B - 6-CMXGBT - 10 GBASE-T Ethernet automated compliance test solution
- MSO68B - 6-CMUSB2 - USB2.0 automated compliance test solution
- MSO68B - 6-DBDDR3 - DDR3 and LPDDR3 Debug and Analysis
- MSO68B - 6-CMDDR3 - DDR3 and LPDDR3 automated compliance test solution using TekExpress Automation Platform
- MSO68B - 6-DBLVDS - TekExpress automated LVDS test solution (requires options 6-DJA and 6-WIN)
- MSO68B - 6-DJA - Advanced Jitter and Eye Analysis
- MSO68B - 6-DPM - Digital Power Management
- MSO68B - 6-IMDA - Inverter Motor Drive Analysis
- MSO68B - 6-IMDA-DQ0 - DQ0 feature for Inverter Motor Drive Analysis (requires option 6-IMDA)
- MSO68B - 6-MTM - Mask and Limit Testing
- MSO68B - 6-PAM3 - PAM3 Analysis (requires options 6-DJA and 6-WIN)
- MSO68B - 6-PS2 - Power solution bundle (6-PWR, THDP0200, TCP0030A, 067-1686-XX deskew fixture)
- MSO68B - 6-PWR - Power Measurement and Analysis
- MSO68B - 6-SV-BW-1 - Increase Spectrum View Capture Bandwidth to 2 GHz
- MSO68B - 6-SV-RFVT - Spectrum View RF versus Time analysis and remote IQ data transferring
- MSO68B - 6-VID - NTSC, PAL, and SECAM video triggering
- MSO68B - A0 - North America power plug (115 V, 60 Hz)
- MSO68B - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO68B - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO68B - A3 - Australia power plug (240 V, 50 Hz)
- MSO68B - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO68B - A6 - Japan power plug (100 V, 50/60 Hz)
- MSO68B - A10 - China power plug (50 Hz)
- MSO68B - A11 - India power plug (50 Hz)
- MSO68B - A12 - Brazil power plug (60 Hz)
- MSO68B - A99 - No power cord
- MSO68B - T3 - Three Year Total Protection Plan
- MSO68B - T5 - Five Year Total Protection Plan
- MSO68B - R3 - Standard Warranty Extended to 3 Years
- MSO68B - R5 - Standard Warranty Extended to 5 Years
- MSO68B - C3 - Calibration service 3 Years
- MSO68B - C5 - Calibration service 5 Years
- MSO68B - D1 - Calibration Data Report
- MSO68B - D3 - Calibration Data Report 3 Years (with Option C3)
- MSO68B - D5 - Calibration Data Report 5 Years (with Option C5)
| Model | MSO68B |
|---|

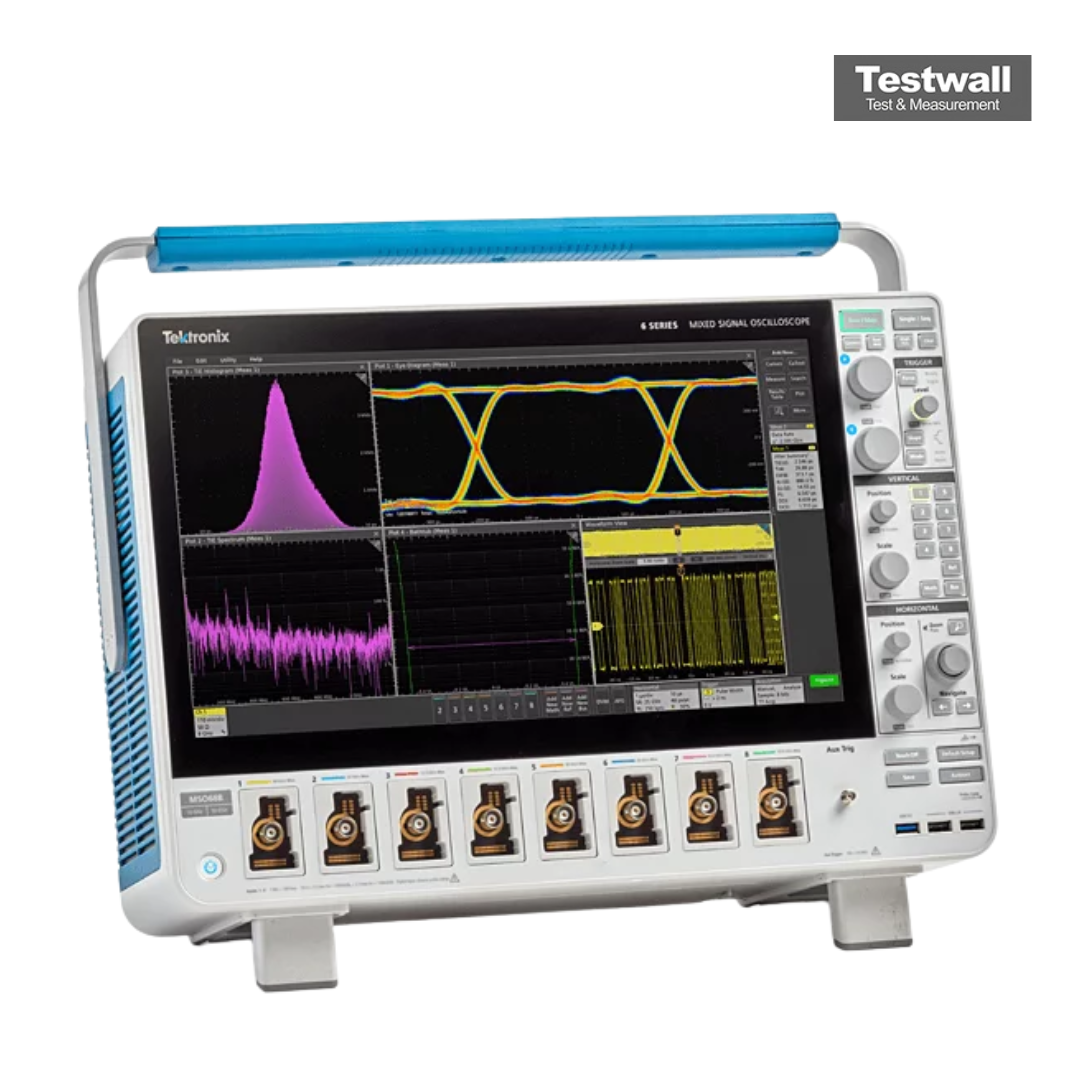

TEKTRONIX MSO68B Mixed Signal Oscilloscope
With the lowest input noise and up to 10 GHz analog bandwidth, the Tektronix MSO68B provides the best signal fidelity for analyzing and debugging today's embedded systems with GHz clock and bus speeds. Many applications, such as embedded systems, three-phase power electronics, automotive electronics, power supply design, and Power Integrity require the observation of more than four analog signals to verify and characterize device performance and to debug challenging system issues. With the industry's largest high definition display and 8 FlexChannel inputs that let you measure one analog or eight digital signals per channel, the Tektronix MSO68B is ready for today's toughest challenges and tomorrow's too.
The Tektronix MSO68B provides the performance to capture the signals of interest while minimizing the effects of unwanted noise when you need to capture high-amplitude signals while seeing smaller signal details. 12-bit analog-to-digital converters (ADCs) provides 16 times the vertical resolution of traditional 8-bit ADCs. A new High Res mode applies a hardware-based unique Finite Impulse Response (FIR) filter based on the selected sample rate. The Tektronix MSO68B has a new 50 GS/s low noise interleave sample rate on up to two channels that reduces noise by almost 3 dB at higher volts/div settings, furthering the advantage over competitive scopes in low noise performance. With up to 10 GHz analog bandwidth, 50 GS/s sample rates, standard 62.5 Mpts record length and a 12-bit analog to digital converter (ADC), the Tektronix MSO68B has the performance you need to capture waveforms with the best possible signal fidelity and resolution for seeing small waveform details.
Specifications for the TEKTRONIX MSO68B Mixed Signal Oscilloscope Include:
| Bandwidth | 1 GHz up to 10 GHz |
| Channels (Analog/Digital) | 8/64 |
| ADC Resolution | 12 bit |
| Sample Rate | up to 50 GS/s |
