Tektronix

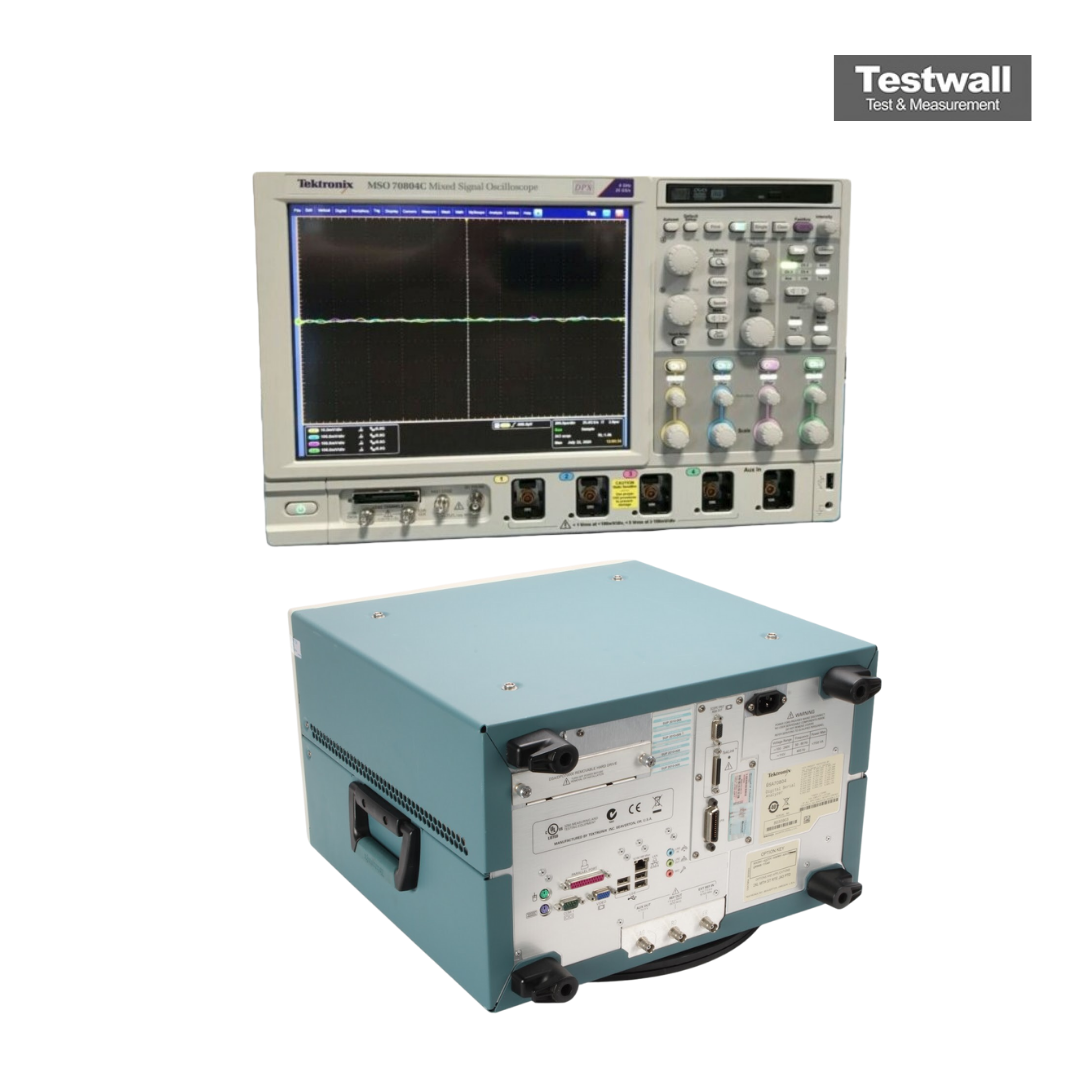

Tektronix MSO70804
4 / 16 Channel 8GHz 25GS/s Mixed Signal DSO
8 GHz Bande passante
4 voies Nombre de voies analogiques
25 GS/s Taux d'échantillonnage
250 Mpoints par voie Longueur de l'enregistrement
8 bits Résolution verticale
| Attribut | Valeur |
|---|---|
| Bande passante | 8 GHz |
| Nombre de voies analogiques | 4 voies |
| Taux d'échantillonnage | 25 GS/s |
| Longueur de l'enregistrement | 250 Mpoints par voie |
| Résolution verticale | 8 bits |
| Voies numériques (MSO) | 16 voies logiques |
| Taux de capture des formes d'onde | 300 000 formes d'onde par seconde |
| Affichage | Écran couleur XGA 12,1 pouces |
| Sensibilité verticale | 1 mV/div à 1 V/div |
| Connectivité | USB, LAN (LXI), GPIB en option |
Tektronix MSO70804 Options:
- MSO70804 - Opt. 5XL - 62.5 MS/Ch (Standard on MSO models)
- MSO70804 - Opt. 10XL - 125 MS/Ch
- MSO70804 - Opt. 20XL - 250 MS/Ch (For models of bandwidth ≥12.5 GHz only)
- MSO70804 - Opt. 50XL - 500 MS/Ch on 4 channels, 1 G/Ch on 2 channels (DX models only)
- MSO70804 - Opt. SSD - Additional Removable Disk – Solid State Drive (C models only)
- MSO70804 - Opt. LT - Waveform Limit Testing
- MSO70804 - Opt. MTH - Mask Testing for Serial Standards. Includes hardware clock recovery for up to 3.125 Gb/s (standard on MSO models)
- MSO70804 - Opt. ST6G - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals (Up to 6.25 Gb/s). Includes hardware clock recovery and pattern lock triggering (standard on MSO models)
- MSO70804 - Opt. D-PHY - MIPI® D-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO70804 - Opt. DDRA - DDR Memory Bus Analysis (Requires Opt. DJA)
- MSO70804 - Opt. DJA - DPOJET Advanced Jitter and Eye Diagram Analysis (standard on MSO models)
- MSO70804 - Opt. DP12 - DisplayPort 1.2 Source Test Automation Software (Requires Opt. DJA) (Requires Opt. 5XL or higher)
- MSO70804 - Opt. DSA - Digital Serial Analysis Bundle (includes 5XL, DJA, MTH, ST6G)
- MSO70804 - Opt. ERRDT - Frame and Bit Error Rate Detector for High-speed Serial Standards (Requires Opt. ST6G)
- MSO70804 - Opt. ET3 - Ethernet Compliance Test Software (Requires Ethernet Test Fixture)
- MSO70804 - Opt. FC-16G - Fiber Channel - 16G DPOJET Essentials
- MSO70804 - Opt. HSIC - HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA)
- MSO70804 - Opt. HT3 - HDMI Compliance Test Software
- MSO70804 - Opt. HT3DS - HDMI Direct Synthesis for HDMI 1.4
- MSO70804 - Opt. MHD - MHL Advanced Analysis and Compliance Software (Requires Opt. DJA and Opt 2XL or higher)
- MSO70804 - Opt. MOST - Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA)
- MSO70804 - Opt. M-PHY - MIPI® M-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO70804 - Opt. M-PHYTX - M-PHY Automated Transmitter Solution (Requires Opt. DJA)
- MSO70804 - Opt. M-PHYRX - M-PHY Automated Receiver Solution (Requires Opt. ST6G) (Requires Opt. ERRDT)
- MSO70804 - Opt. PCE3 - PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only)
- MSO70804 - Opt. PWR - Advanced Power Measurement and Analysis Software
- MSO70804 - Opt. SAS3 - SAS3 12 GB/s Essentials (Requires Opt. DJA and 2XL or higher) (For models of bandwidth ≥20 GHz only)
- MSO70804 - Opt. SFP-TX - SFP+ Compliance and Debug Solution (Requires Opt. DJA)
- MSO70804 - Opt. SFP-WDP - SFP+ Compliance and Debug Solution – WDP Measurement (Requires Opt. DJA)
- MSO70804 - Opt. SDLA64 - Serial Data Link Analysis Visualizer
- MSO70804 - Opt. SR-AERO - Aerospace Serial Triggering and Analysis (MIL-STD-1553B)
- MSO70804 - Opt. SR-AUTO - Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay)
- MSO70804 - Opt. SR-COMP - Computer Serial Triggering and Analysis (RS-232/422/485/UART)
- MSO70804 - Opt. SR-CUST - Custom Serial Analysis (standard on all models)
- MSO70804 - Opt. SR-DPHY - MIPI® D-PHY (DSI / CSI2) Serial Analysis
- MSO70804 - Opt. SR-EMBD - Embedded Serial Triggering and Analysis (I2C, SPI) (standard on MSO models)
- MSO70804 - Opt. SR-ENET - Ethernet Serial Analysis (10BASE-T and 100BASE-TX)
- MSO70804 - Opt. SR-PCIE - PCI Express Serial Analysis (Opt. ST6G required for triggering)
- MSO70804 - Opt. SR-USB - USB Serial Triggering and Analysis
- MSO70804 - Opt. SVA - AM/FM/PM Audio Signal Analysis (Requires Opt. SVE)
- MSO70804 - Opt. SVE - SignalVu® Essentials – Vector Signal Analysis Software
- MSO70804 - Opt. SVM - General Purpose Modulation Analysis (Requires Opt. SVE)
- MSO70804 - Opt. SVO - Flexible OFDM Analysis (Requires Opt. SVE)
- MSO70804 - Opt. SVP - Advanced Signal Analysis (including pulse measurements) (Requires Opt. SVE)
- MSO70804 - Opt. SVT - Frequency and Phase Settling Time Measurements (Requires Opt. SVE)
- MSO70804 - Opt. SV23 - WLAN 802.11a/b/g/j/p measurement application (requires Opt. SVE)
- MSO70804 - Opt. SV24 - WLAN 802.11n measurement application (requires Opt. SV23)
- MSO70804 - Opt. SV25 - WLAN 802.11ac measurement application (requires Opt. SV24) (For models of bandwidth ≥6 GHz only)
- MSO70804 - Opt. SV26 - APCO P25 compliance testing and analysis application (requires Opt. SVE)
- MSO70804 - Opt. UHS2 - UHS-II-Host-Tx and UHS-ii-Device-Tx Measurements (For models of bandwidth ≥6 GHz only)
- MSO70804 - Opt. USBHSIC - USB2.0 and HSIC Bundle, includes options Opt. DJA, HSIC, SR-USB, and USB
- MSO70804 - Opt. USB3 - USB 3.0 Compliance and Analysis Software (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only)
- MSO70804 - Opt. VET - Visual Trigger
- MSO70804 - Opt. C3 - Calibration Service 3 Years
- MSO70804 - Opt. C5 - Calibration Service 5 Years
- MSO70804 - Opt. D1 - Calibration Data Report
- MSO70804 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO70804 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO70804 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MSO70804 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MSO70804 - Opt. R3 - Repair Service 3 Years (including warranty)
- MSO70804 - Opt. R5 - Repair Service 5 Years (including warranty)
- MSO70804 - Opt. L0 - English manual
- MSO70804 - Opt. L1 - French manual
- MSO70804 - Opt. L3 - German manual
- MSO70804 - Opt. L5 - Japanese manual
- MSO70804 - Opt. L7 - Simplified Chinese manual
- MSO70804 - Opt. L8 - Traditional Chinese manual
- MSO70804 - Opt. L9 - Korean manual
- MSO70804 - Opt. L10 - Russian manual
- MSO70804 - Opt. L99 - No manual
- MSO70804 - Opt. A0 - North America power plug (115 V, 60 Hz)
- MSO70804 - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO70804 - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO70804 - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MSO70804 - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MSO70804 - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- MSO70804 - Opt. A10 - China power plug (50 Hz)
- MSO70804 - Opt. A11 - India power plug (50 Hz)
- MSO70804 - Opt. A12 - Brazil power plug (60 Hz)
- MSO70804 - Opt. A99 - No power cord
Le Tektronix MSO70804 est un DSO à signaux mixtes combinant 4 canaux analogiques et 16 entrées numériques. Il offre une bande passante analogique de 8 GHz et jusqu’à 25 GS/s en temps réel, permettant une visibilité précise des transitions rapides et des relations temporelles. L’architecture mixed‑signal affiche des formes d’onde analogiques et des états logiques synchronisés dans une seule acquisition.
Utilisez‑le pour observer des événements haute vitesse jusqu’à 8 GHz tout en corrélant les mesures analogiques sur 4 canaux avec l’activité numérique sur 16 canaux. Le débit de 25 GS/s apporte une finesse temporelle pour la validation et le dépannage.
Testwall peut fournir le Tektronix MSO70804 d’occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit une instrumentation haute performance avec une fiabilité et une qualité de service inégalées. Veuillez nous contacter directement si vous avez besoin de calibration ou de réparation du Tektronix MSO70804.
