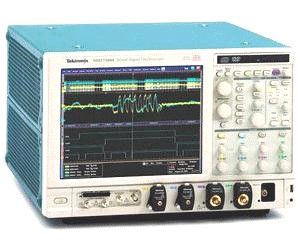

Tektronix MSO71254
Mixed Signal Oscilloscope, 12 GHz, 4 + 16 Ch., 50 GS/s
12,5 GHz Largeur de bande
4 voies Nombre de voies analogiques
50 GS/s (sur une voie), 25 GS/s (sur deux voies) Taux d'échantillonnage
jusqu'à 250 Mpoints par voie Longueur d'enregistrement
8 bits (jusqu'à 11 bits en mode haute résolution) Résolution verticale
| Attribut | Valeur |
|---|---|
| Largeur de bande | 12,5 GHz |
| Nombre de voies analogiques | 4 voies |
| Taux d'échantillonnage | 50 GS/s (sur une voie), 25 GS/s (sur deux voies) |
| Longueur d'enregistrement | jusqu'à 250 Mpoints par voie |
| Résolution verticale | 8 bits (jusqu'à 11 bits en mode haute résolution) |
| Voies numériques (MSO) | 16 voies logiques numériques |
| Taux de capture des formes d'onde | jusqu'à 300 000 formes d'onde par seconde |
| Écran | Écran couleur haute résolution 12,1 pouces (XGA) |
| Sensibilité verticale | 1 mV/div à 1 V/div |
| Connectivité et interfaces | USB, LAN (LXI), GPIB en option, sortie XGA |
Tektronix MSO71254 Options:
- MSO71254 - Opt. 5XL - 62.5 MS/Ch (Standard on MSO models)
- MSO71254 - Opt. 10XL - 125 MS/Ch
- MSO71254 - Opt. 20XL - 250 MS/Ch (For models of bandwidth ≥12.5 GHz only)
- MSO71254 - Opt. 50XL - 500 MS/Ch on 4 channels, 1 G/Ch on 2 channels (DX models only)
- MSO71254 - Opt. SSD - Additional Removable Disk – Solid State Drive (C models only)
- MSO71254 - Opt. LT - Waveform Limit Testing
- MSO71254 - Opt. MTH - Mask Testing for Serial Standards. Includes hardware clock recovery for up to 3.125 Gb/s (standard on MSO models)
- MSO71254 - Opt. ST6G - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals (Up to 6.25 Gb/s). Includes hardware clock recovery and pattern lock triggering (standard on MSO models)
- MSO71254 - Opt. D-PHY - MIPI® D-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO71254 - Opt. DDRA - DDR Memory Bus Analysis (Requires Opt. DJA)
- MSO71254 - Opt. DJA - DPOJET Advanced Jitter and Eye Diagram Analysis (standard on MSO models)
- MSO71254 - Opt. DP12 - DisplayPort 1.2 Source Test Automation Software (Requires Opt. DJA) (Requires Opt. 5XL or higher)
- MSO71254 - Opt. DSA - Digital Serial Analysis Bundle (includes 5XL, DJA, MTH, ST6G)
- MSO71254 - Opt. ERRDT - Frame and Bit Error Rate Detector for High-speed Serial Standards (Requires Opt. ST6G)
- MSO71254 - Opt. ET3 - Ethernet Compliance Test Software (Requires Ethernet Test Fixture)
- MSO71254 - Opt. FC-16G - Fiber Channel - 16G DPOJET Essentials
- MSO71254 - Opt. HSIC - HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA)
- MSO71254 - Opt. HT3 - HDMI Compliance Test Software
- MSO71254 - Opt. HT3DS - HDMI Direct Synthesis for HDMI 1.4
- MSO71254 - Opt. MHD - MHL Advanced Analysis and Compliance Software (Requires Opt. DJA and Opt 2XL or higher)
- MSO71254 - Opt. MOST - Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA)
- MSO71254 - Opt. M-PHY - MIPI® M-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO71254 - Opt. M-PHYTX - M-PHY Automated Transmitter Solution (Requires Opt. DJA)
- MSO71254 - Opt. M-PHYRX - M-PHY Automated Receiver Solution (Requires Opt. ST6G) (Requires Opt. ERRDT)
- MSO71254 - Opt. PCE3 - PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only)
- MSO71254 - Opt. PWR - Advanced Power Measurement and Analysis Software
- MSO71254 - Opt. SAS3 - SAS3 12 GB/s Essentials (Requires Opt. DJA and 2XL or higher) (For models of bandwidth ≥20 GHz only)
- MSO71254 - Opt. SFP-TX - SFP+ Compliance and Debug Solution (Requires Opt. DJA)
- MSO71254 - Opt. SFP-WDP - SFP+ Compliance and Debug Solution – WDP Measurement (Requires Opt. DJA)
- MSO71254 - Opt. SDLA64 - Serial Data Link Analysis Visualizer
- MSO71254 - Opt. SR-AERO - Aerospace Serial Triggering and Analysis (MIL-STD-1553B)
- MSO71254 - Opt. SR-AUTO - Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay)
- MSO71254 - Opt. SR-COMP - Computer Serial Triggering and Analysis (RS-232/422/485/UART)
- MSO71254 - Opt. SR-CUST - Custom Serial Analysis (standard on all models)
- MSO71254 - Opt. SR-DPHY - MIPI® D-PHY (DSI / CSI2) Serial Analysis
- MSO71254 - Opt. SR-EMBD - Embedded Serial Triggering and Analysis (I2C, SPI) (standard on MSO models)
- MSO71254 - Opt. SR-ENET - Ethernet Serial Analysis (10BASE-T and 100BASE-TX)
- MSO71254 - Opt. SR-PCIE - PCI Express Serial Analysis (Opt. ST6G required for triggering)
- MSO71254 - Opt. SR-USB - USB Serial Triggering and Analysis
- MSO71254 - Opt. SVA - AM/FM/PM Audio Signal Analysis (Requires Opt. SVE)
- MSO71254 - Opt. SVE - SignalVu® Essentials – Vector Signal Analysis Software
- MSO71254 - Opt. SVM - General Purpose Modulation Analysis (Requires Opt. SVE)
- MSO71254 - Opt. SVO - Flexible OFDM Analysis (Requires Opt. SVE)
- MSO71254 - Opt. SVP - Advanced Signal Analysis (including pulse measurements) (Requires Opt. SVE)
- MSO71254 - Opt. SVT - Frequency and Phase Settling Time Measurements (Requires Opt. SVE)
- MSO71254 - Opt. SV23 - WLAN 802.11a/b/g/j/p measurement application (requires Opt. SVE)
- MSO71254 - Opt. SV24 - WLAN 802.11n measurement application (requires Opt. SV23)
- MSO71254 - Opt. SV25 - WLAN 802.11ac measurement application (requires Opt. SV24) (For models of bandwidth ≥6 GHz only)
- MSO71254 - Opt. SV26 - APCO P25 compliance testing and analysis application (requires Opt. SVE)
- MSO71254 - Opt. UHS2 - UHS-II-Host-Tx and UHS-ii-Device-Tx Measurements (For models of bandwidth ≥6 GHz only)
- MSO71254 - Opt. USBHSIC - USB2.0 and HSIC Bundle, includes options Opt. DJA, HSIC, SR-USB, and USB
- MSO71254 - Opt. USB3 - USB 3.0 Compliance and Analysis Software (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only)
- MSO71254 - Opt. VET - Visual Trigger
- MSO71254 - Opt. C3 - Calibration Service 3 Years
- MSO71254 - Opt. C5 - Calibration Service 5 Years
- MSO71254 - Opt. D1 - Calibration Data Report
- MSO71254 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO71254 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO71254 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MSO71254 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MSO71254 - Opt. R3 - Repair Service 3 Years (including warranty)
- MSO71254 - Opt. R5 - Repair Service 5 Years (including warranty)
- MSO71254 - Opt. L0 - English manual
- MSO71254 - Opt. L1 - French manual
- MSO71254 - Opt. L3 - German manual
- MSO71254 - Opt. L5 - Japanese manual
- MSO71254 - Opt. L7 - Simplified Chinese manual
- MSO71254 - Opt. L8 - Traditional Chinese manual
- MSO71254 - Opt. L9 - Korean manual
- MSO71254 - Opt. L10 - Russian manual
- MSO71254 - Opt. L99 - No manual
- MSO71254 - Opt. A0 - North America power plug (115 V, 60 Hz)
- MSO71254 - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO71254 - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO71254 - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MSO71254 - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MSO71254 - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- MSO71254 - Opt. A10 - China power plug (50 Hz)
- MSO71254 - Opt. A11 - India power plug (50 Hz)
- MSO71254 - Opt. A12 - Brazil power plug (60 Hz)
- MSO71254 - Opt. A99 - No power cord
| Model | MSO71254 |
|---|
Tektronix Signal Oscilloscope
Tektronix MSO71254 Mixed Signal Oscilloscope, 12 GHz, 4 + 16 Ch., 50 GS/s
Engineers rely on an oscilloscope throughout their design cycle, from prototype turn-on to production testing. The Tektronix MSO/DPO70000 Series oscilloscopes' unique capabilities combined with exceptional signal acquisition performance and analysis accelerate your measurement tasks.
Features and Specifications of the Tektronix MSO71254 includes:
- Analog Channels: 4
- Digital Channels: 16
- Analog Bandwidth: 12.5 GHz
- Hardware Analog: 12.5 GHz
- Rise Time: 10% to 90%: 32 ps 20% to 80%: 22 ps
- USB 2.0 host port on both the front panel and rear panel for quick and easy data storage, printing, and connecting a USB keyboard
- Integrated 10/100 Ethernet port for network connection and Video Out port to export the oscilloscope display to a monitor or projector
