Tektronix

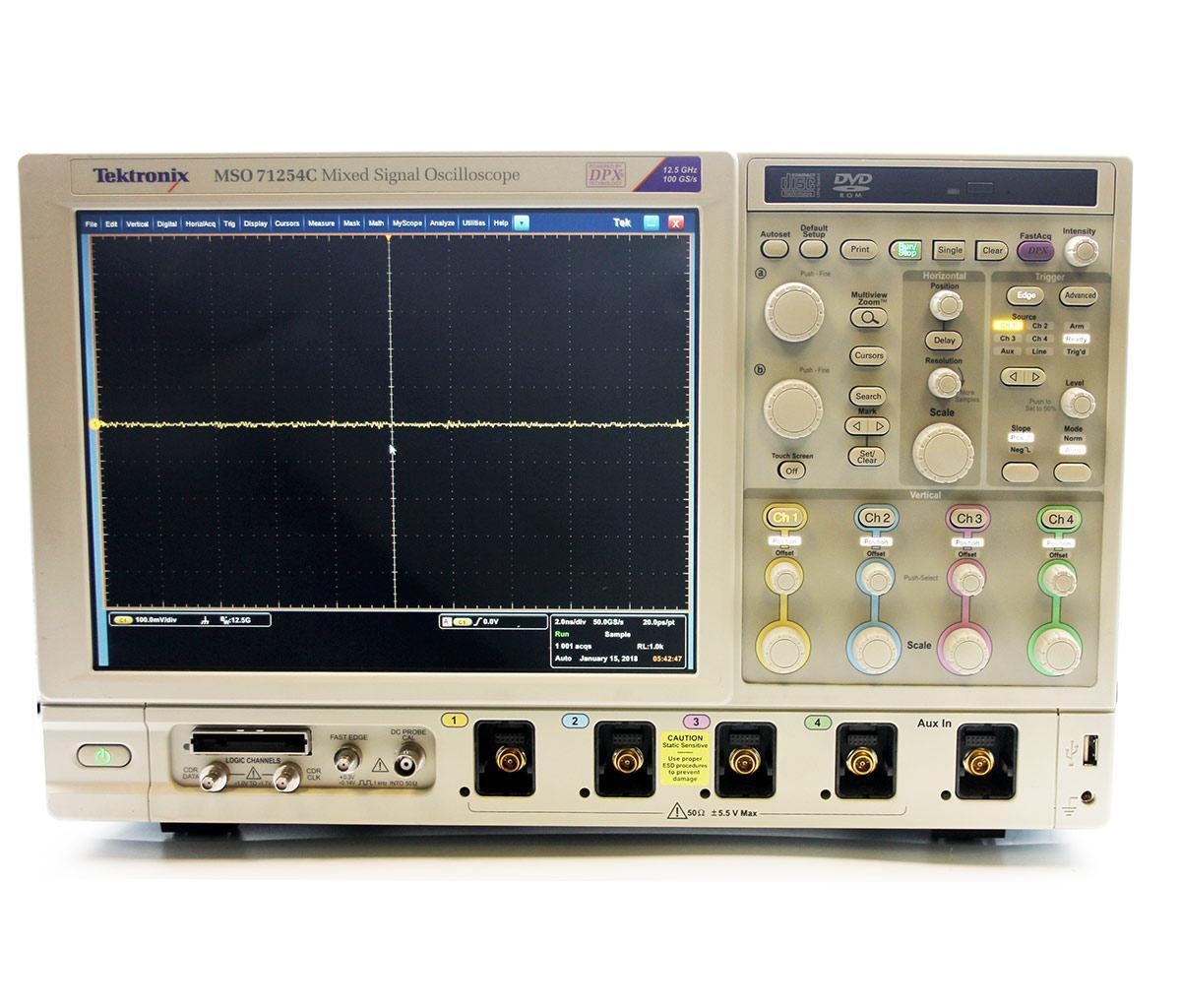

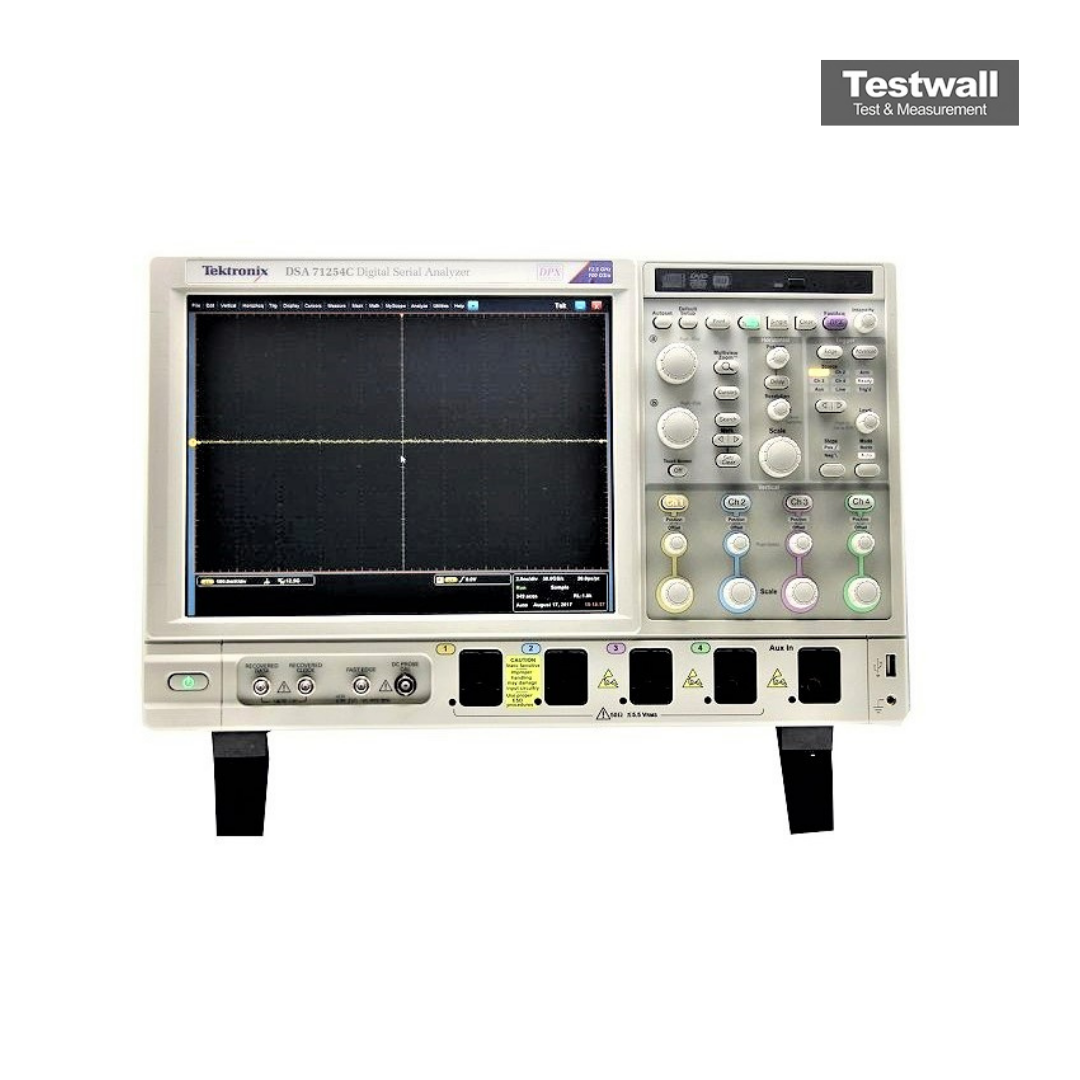

Tektronix MSO71254C
4+16-CH, DIGITAL, 12.5GHz Mixed Signal Oscilloscope
12,5 GHz Largeur de bande passante
4 canaux analogiques + 16 canaux numériques Nombre de canaux
100 GS/s (en temps réel) Taux d'échantillonnage
250 Mpoints (standard), jusqu'à 2 Gpoints (en option) Longueur d'enregistrement
8 bits (jusqu'à 11 bits en mode haute résolution) Résolution verticale
| Attribut | Valeur |
|---|---|
| Largeur de bande passante | 12,5 GHz |
| Nombre de canaux | 4 canaux analogiques + 16 canaux numériques |
| Taux d'échantillonnage | 100 GS/s (en temps réel) |
| Longueur d'enregistrement | 250 Mpoints (standard), jusqu'à 2 Gpoints (en option) |
| Résolution verticale | 8 bits (jusqu'à 11 bits en mode haute résolution) |
| Sensibilité verticale | 1 mV/div à 1 V/div |
| Base de temps | 20 ps/div à 1000 s/div |
| Gigue (Jitter) de déclenchement | Moins de 1 ps RMS |
| Connectivité et interface | USB, LAN (LXI), DisplayPort, Windows 10 |
| Système d'exploitation embarqué | Microsoft Windows 10 (64 bits) |
Tektronix MSO71254C Options:
- MSO71254C - Opt. 5XL - 62.5 MS/Ch (Standard on MSO models)
- MSO71254C - Opt. 10XL - 125 MS/Ch
- MSO71254C - Opt. 20XL - 250 MS/Ch (For models of bandwidth ≥12.5 GHz only)
- MSO71254C - Opt. SSD - Additional Removable Disk – Solid State Drive (Standard on DX models)
- MSO71254C - Opt. LT - Waveform Limit Testing
- MSO71254C - Opt. MTH - Mask Testing for Serial Standards. Includes hardware clock recovery for up to 3.125 Gb/s (standard on MSO models)
- MSO71254C - Opt. ST6G - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals (Up to 6.25 Gb/s). Includes hardware clock recovery and pattern lock triggering (standard on MSO models)
- MSO71254C - Opt. D-PHY - MIPI® D-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO71254C - Opt. DDRA - DDR Memory Bus Analysis (Requires Opt. DJA)
- MSO71254C - Opt. DJA - DPOJET Advanced Jitter and Eye Diagram Analysis (standard on MSO models)
- MSO71254C - Opt. DP12 - DisplayPort 1.2 Source Test Automation Software (Requires Opt. DJA) (Requires Opt. 5XL or higher)
- MSO71254C - Opt. DSA - Digital Serial Analysis Bundle (includes 5XL, DJA, MTH, ST6G)
- MSO71254C - Opt. ERRDT - Frame and Bit Error Rate Detector for High-speed Serial Standards (Requires Opt. ST6G)
- MSO71254C - Opt. ET3 - Ethernet Compliance Test Software (Requires Ethernet Test Fixture)
- MSO71254C - Opt. FC-16G - Fiber Channel - 16G DPOJET Essentials
- MSO71254C - Opt. HSIC - HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA)
- MSO71254C - Opt. HT3 - HDMI Compliance Test Software
- MSO71254C - Opt. HT3DS - HDMI Direct Synthesis for HDMI 1.4
- MSO71254C - Opt. MHD - MHL Advanced Analysis and Compliance Software (Requires Opt. DJA and Opt 2XL or higher)
- MSO71254C - Opt. MOST - Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA)
- MSO71254C - Opt. M-PHY - MIPI® M-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO71254C - Opt. M-PHYTX - M-PHY Automated Transmitter Solution (Requires Opt. DJA)
- MSO71254C - Opt. M-PHYRX - M-PHY Automated Receiver Solution (Requires Opt. ST6G) (Requires Opt. ERRDT)
- MSO71254C - Opt. PCE3 - PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only)
- MSO71254C - Opt. PWR - Power Measurement and Analysis Software
- MSO71254C - Opt. SFP-TX - SFP+ Compliance and Debug Solution (Requires Opt. DJA)
- MSO71254C - Opt. SFP-WDP - SFP+ Compliance and Debug Solution – WDP Measurement (Requires Opt. DJA)
- MSO71254C - Opt. SDLA64 - Serial Data Link Analysis Visualizer
- MSO71254C - Opt. SR-AERO - Aerospace Serial Triggering and Analysis (MIL-STD-1553B)
- MSO71254C - Opt. SR-AUTO - Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay)
- MSO71254C - Opt. SR-COMP - Computer Serial Triggering and Analysis (RS-232/422/485/UART)
- MSO71254C - Opt. SR-CUST - Custom Serial Analysis (standard on all models)
- MSO71254C - Opt. SR-DPHY - MIPI® D-PHY (DSI / CSI2) Serial Analysis
- MSO71254C - Opt. SR-EMBD - Embedded Serial Triggering and Analysis (I2C, SPI) (standard on MSO models)
- MSO71254C - Opt. SR-ENET - Ethernet Serial Analysis (10BASE-T and 100BASE-TX)
- MSO71254C - Opt. SR-PCIE - PCI Express Serial Analysis (Opt. ST6G required for triggering)
- MSO71254C - Opt. SR-USB - USB Serial Triggering and Analysis
- MSO71254C - Opt. SVA - AM/FM/PM Audio Signal Analysis (Requires Opt. SVE)
- MSO71254C - Opt. SVE - SignalVu® Essentials – Vector Signal Analysis Software
- MSO71254C - Opt. SVM - General Purpose Modulation Analysis (Requires Opt. SVE)
- MSO71254C - Opt. SVO - Flexible OFDM Analysis (Requires Opt. SVE)
- MSO71254C - Opt. SVP - Advanced Signal Analysis (including pulse measurements) (Requires Opt. SVE)
- MSO71254C - Opt. SVT - Frequency and Phase Settling Time Measurements (Requires Opt. SVE)
- MSO71254C - Opt. SV23 - WLAN 802.11a/b/g/j/p measurement application (requires Opt SVE)
- MSO71254C - Opt. SV24 - WLAN 802.11n measurement application (requires Opt SV23)
- MSO71254C - Opt. SV25 - WLAN 802.11ac measurement application (requires Opt SV24)
- MSO71254C - Opt. UHS2 - UHS-II-Host-Tx and UHS-ii-Device-Tx Measurements (For models of bandwidth ≥6 GHz only)
- MSO71254C - Opt. USB - USB 2.0 Compliance Test Software (Requires TDSUSBF USB Test Fixture)
- MSO71254C - Opt. USBHSIC - USB2.0 and HSIC Bundle, includes options Opt. DJA, HSIC, SR-USB, and USB
- MSO71254C - Opt. USB3 - USB 3.0 Compliance and Analysis Software (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only)
- MSO71254C - Opt. VET - Visual Trigger
- MSO71254C - Opt. L0 - English manual
- MSO71254C - Opt. L1 - French manual
- MSO71254C - Opt. L3 - German manual
- MSO71254C - Opt. L5 - Japanese manual
- MSO71254C - Opt. L7 - Simplified Chinese manual
- MSO71254C - Opt. L8 - Traditional Chinese manual
- MSO71254C - Opt. L9 - Korean manual
- MSO71254C - Opt. L10 - Russian manual
- MSO71254C - Opt. L99 - No manual
- MSO71254C - Opt. A0 - North America power plug (115 V, 60 Hz)
- MSO71254C - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO71254C - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO71254C - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MSO71254C - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MSO71254C - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- MSO71254C - Opt. A10 - China power plug (50 Hz)
- MSO71254C - Opt. A11 - India power plug (50 Hz)
- MSO71254C - Opt. A12 - Brazil power plug (60 Hz)
- MSO71254C - Opt. A99 - No power cord
- MSO71254C - Opt. C3 - Calibration Service 3 Years
- MSO71254C - Opt. C5 - Calibration Service 5 Years
- MSO71254C - Opt. D1 - Calibration Data Report
- MSO71254C - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO71254C - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO71254C - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MSO71254C - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MSO71254C - Opt. IF - Upgrade Installation Service
- MSO71254C - Opt. R3 - Repair Service 3 Years (including warranty)
- MSO71254C - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | MSO71254C |
|---|
L'oscilloscope mixte Tektronix MSO71254C offre une bande passante analogique de 12,5 GHz, un taux d'échantillonnage de 50 à 100 GS/s, et une mémoire d'enregistrement allant jusqu'à 250M, avec 4 canaux analogiques et 16 logiques. La résolution temporelle de 80 ps et l'iCapture™ facilitent l'analyse sans changement de connexion.
Le déclenchement sur motifs série avec récupération d'horloge prend en charge USB 3.0 et le décodage 8b/10b jusqu'à 6,25 Gb/s, tandis que les outils DPOJET accélèrent l'analyse de gigue et diagrammes d'œil.
Testwall peut fournir l'oscilloscope mixte Tektronix MSO71254C d'occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit une instrumentation hautes performances avec une fiabilité et une qualité de service inégalées. Veuillez nous contacter si vous avez besoin de calibration ou de réparation du Tektronix MSO71254C.
