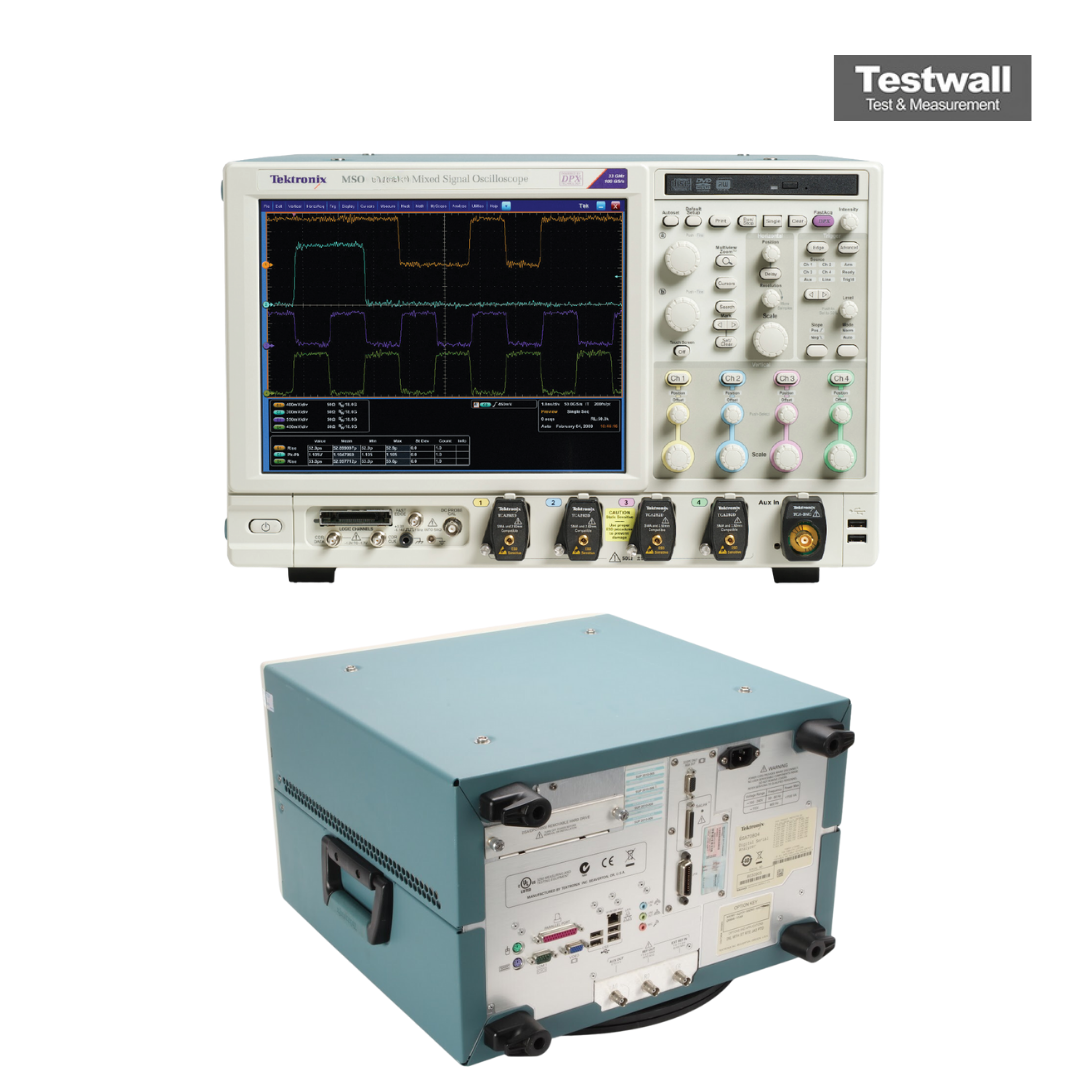

Tektronix MSO71254DX
4 Channel 12.5GHz 100GS/s MSO
12,5 GHz Largeur de bande passante
4 voies Nombre de voies analogiques
100 GS/s Taux d'échantillonnage en temps réel
8 bits (jusqu'à 11 bits en mode haute résolution) Résolution verticale
250 Mpoints (standard), jusqu'à 2 Gpoints en option Longueur d'enregistrement
| Attribut | Valeur |
|---|---|
| Largeur de bande passante | 12,5 GHz |
| Nombre de voies analogiques | 4 voies |
| Taux d'échantillonnage en temps réel | 100 GS/s |
| Résolution verticale | 8 bits (jusqu'à 11 bits en mode haute résolution) |
| Longueur d'enregistrement | 250 Mpoints (standard), jusqu'à 2 Gpoints en option |
| Nombre de voies numériques | 16 voies logiques (via sonde d'acquisition numérique) |
| Affichage | Écran tactile couleur 15,3 pouces haute résolution |
| Sensibilité verticale | 1 mV/div à 1 V/div |
| Connectivité | USB, LAN (LXI), GPIB en option |
| Système d'exploitation | Windows 10 intégré |
