Tektronix

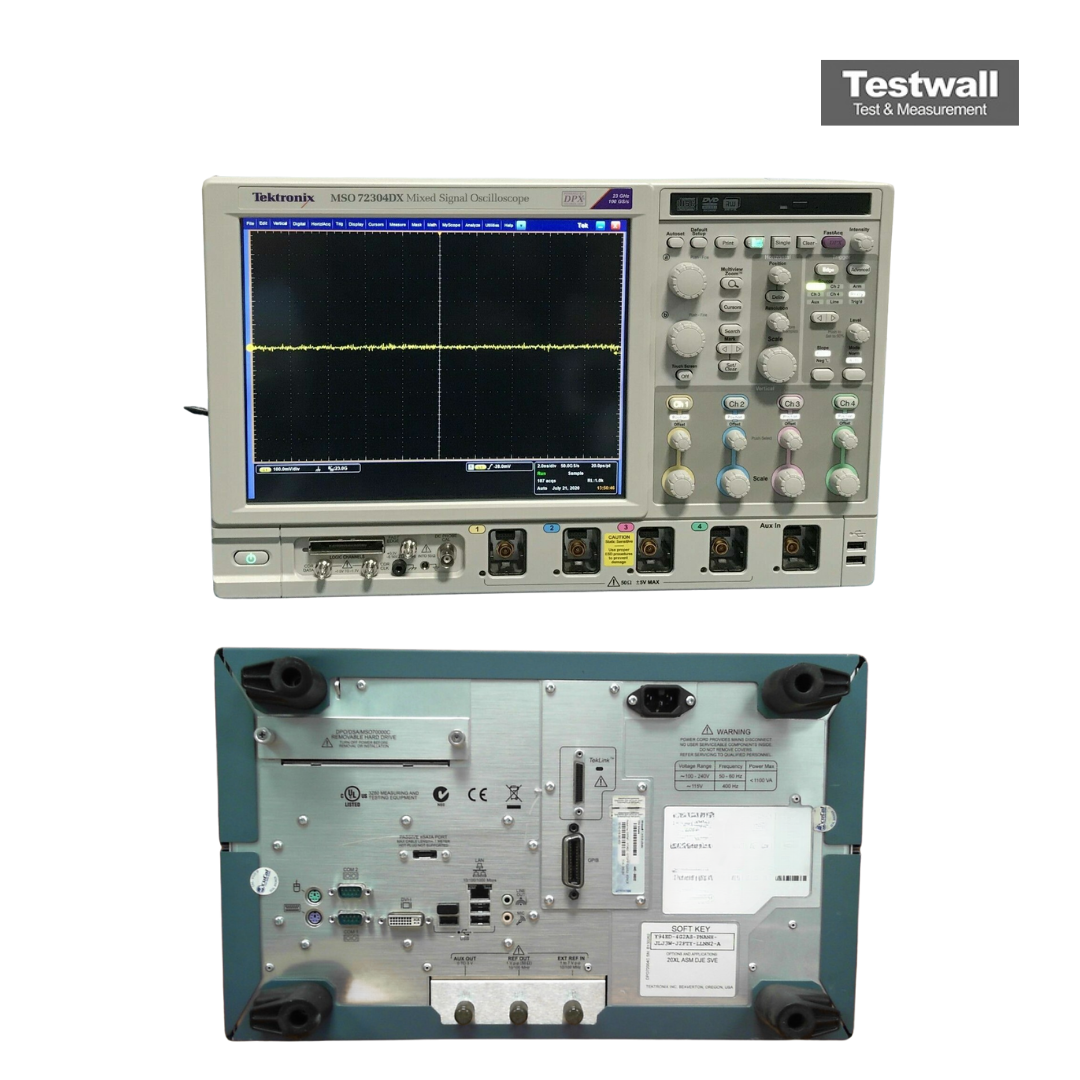

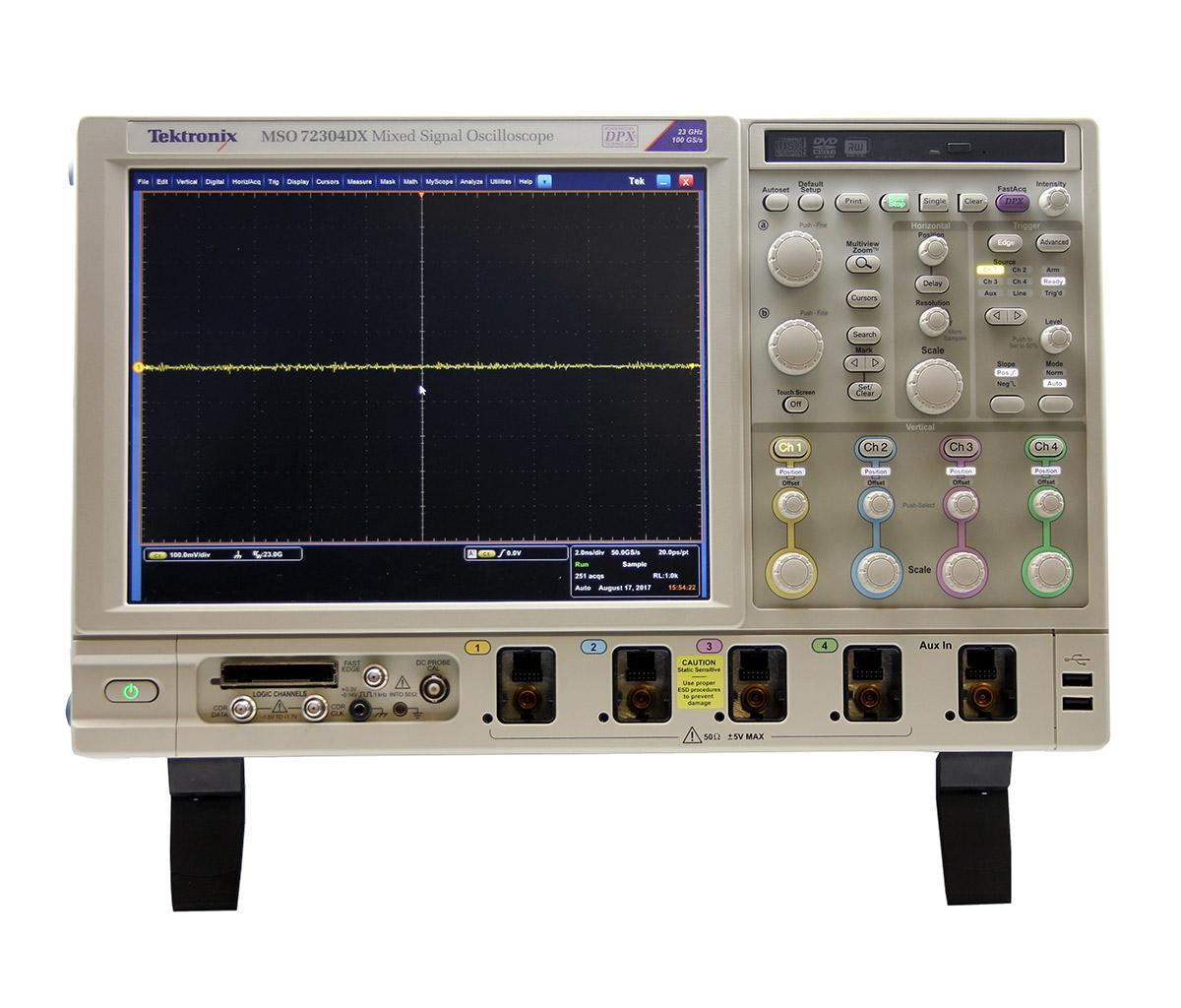

Tektronix MSO72304DX
4+16-CH, DIGITAL, 23GHz Mixed Signal Oscilloscope
23 GHz Largeur de bande
4 voies Nombre de voies analogiques
100 GS/s Taux d'échantillonnage maximum
250 Mpoints (standard), jusqu'à 2 Gpoints en option Longueur d'enregistrement
8 bits (jusqu'à 11 bits en mode haute résolution) Résolution verticale
| Attribut | Valeur |
|---|---|
| Largeur de bande | 23 GHz |
| Nombre de voies analogiques | 4 voies |
| Taux d'échantillonnage maximum | 100 GS/s |
| Longueur d'enregistrement | 250 Mpoints (standard), jusqu'à 2 Gpoints en option |
| Résolution verticale | 8 bits (jusqu'à 11 bits en mode haute résolution) |
| Nombre de voies numériques | 16 voies logiques (via sonde optionnelle) |
| Sensibilité verticale | 1 mV/div à 1 V/div |
| Fréquence de mise à jour des formes d'onde | Jusqu'à 340 000 formes d'onde par seconde |
| Interface d'affichage | Écran tactile LCD couleur 15,3 pouces (1 024 x 768 pixels) |
| Connectivité et interface | USB, LAN (LXI), DVI, ports d'extension GPG/AUX |
Tektronix MSO72304DX Options:
- MSO72304DX - Opt. 5XL - 62.5 MS/Ch (Standard on MSO models)
- MSO72304DX - Opt. 10XL - 125 MS/Ch
- MSO72304DX - Opt. 20XL - 250 MS/Ch (For models of bandwidth ≥12.5 GHz only)
- MSO72304DX - Opt. 50XL - 500 MS/Ch on 4 channels, 1 G/Ch on 2 channels (DX models only)
- MSO72304DX - Opt. SSD - Additional Removable Disk – Solid State Drive (Standard on DX models)
- MSO72304DX - Opt. LT - Waveform Limit Testing
- MSO72304DX - Opt. MTH - Mask Testing for Serial Standards. Includes hardware clock recovery for up to 3.125 Gb/s (standard on MSO models)
- MSO72304DX - Opt. ST6G - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals (Up to 6.25 Gb/s). Includes hardware clock recovery and pattern lock triggering (standard on MSO models)
- MSO72304DX - Opt. D-PHY - MIPI® D-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO72304DX - Opt. DDRA - DDR Memory Bus Analysis (Requires Opt. DJA)
- MSO72304DX - Opt. DJA - DPOJET Advanced Jitter and Eye Diagram Analysis (standard on MSO models)
- MSO72304DX - Opt. DP12 - DisplayPort 1.2 Source Test Automation Software (Requires Opt. DJA) (Requires Opt. 5XL or higher)
- MSO72304DX - Opt. DSA - Digital Serial Analysis Bundle (includes 5XL, DJA, MTH, ST6G)
- MSO72304DX - Opt. ERRDT - Frame and Bit Error Rate Detector for High-speed Serial Standards (Requires Opt. ST6G)
- MSO72304DX - Opt. ET3 - Ethernet Compliance Test Software (Requires Ethernet Test Fixture)
- MSO72304DX - Opt. FC-16G - Fiber Channel - 16G DPOJET Essentials
- MSO72304DX - Opt. HSIC - HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA)
- MSO72304DX - Opt. HT3 - HDMI Compliance Test Software
- MSO72304DX - Opt. HT3DS - HDMI Direct Synthesis for HDMI 1.4
- MSO72304DX - Opt. MHD - MHL Advanced Analysis and Compliance Software (Requires Opt. DJA and Opt 2XL or higher)
- MSO72304DX - Opt. MOST - Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA)
- MSO72304DX - Opt. M-PHY - MIPI® M-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO72304DX - Opt. M-PHYTX - M-PHY Automated Transmitter Solution (Requires Opt. DJA)
- MSO72304DX - Opt. M-PHYRX - M-PHY Automated Receiver Solution (Requires Opt. ST6G) (Requires Opt. ERRDT)
- MSO72304DX - Opt. PCE3 - PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only)
- MSO72304DX - Opt. PWR - Power Measurement and Analysis Software
- MSO72304DX - Opt. SAS3 - SAS3 12 GB/s Essentials (Requires Opt. DJA and 2XL or higher) (For models of bandwidth ≥20 GHz only)
- MSO72304DX - Opt. SFP-TX - SFP+ Compliance and Debug Solution (Requires Opt. DJA)
- MSO72304DX - Opt. SFP-WDP - SFP+ Compliance and Debug Solution – WDP Measurement (Requires Opt. DJA)
- MSO72304DX - Opt. SDLA64 - Serial Data Link Analysis Visualizer
- MSO72304DX - Opt. SR-AERO - Aerospace Serial Triggering and Analysis (MIL-STD-1553B)
- MSO72304DX - Opt. SR-AUTO - Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay)
- MSO72304DX - Opt. SR-COMP - Computer Serial Triggering and Analysis (RS-232/422/485/UART)
- MSO72304DX - Opt. SR-CUST - Custom Serial Analysis (standard on all models)
- MSO72304DX - Opt. SR-DPHY - MIPI® D-PHY (DSI / CSI2) Serial Analysis
- MSO72304DX - Opt. SR-EMBD - Embedded Serial Triggering and Analysis (I2C, SPI) (standard on MSO models)
- MSO72304DX - Opt. SR-ENET - Ethernet Serial Analysis (10BASE-T and 100BASE-TX)
- MSO72304DX - Opt. SR-PCIE - PCI Express Serial Analysis
- MSO72304DX - Opt. SR-USB - USB Serial Triggering and Analysis
- MSO72304DX - Opt. SVA - AM/FM/PM Audio Signal Analysis (Requires Opt. SVE)
- MSO72304DX - Opt. SVE - SignalVu® Essentials – Vector Signal Analysis Software
- MSO72304DX - Opt. SVM - General Purpose Modulation Analysis (Requires Opt. SVE)
- MSO72304DX - Opt. SVO - Flexible OFDM Analysis (Requires Opt. SVE)
- MSO72304DX - Opt. SVP - Advanced Signal Analysis (including pulse measurements) (Requires Opt. SVE)
- MSO72304DX - Opt. SVT - Frequency and Phase Settling Time Measurements (Requires Opt. SVE)
- MSO72304DX - Opt. TBT-TX - Thunderbolt Transmitter Characterization, Debug, and Compliance Testing (Requires Opt. DJA and Opt. 2XL or higher) (For models of bandwidth ≥16 GHz only)
- MSO72304DX - Opt. UHS2 - UHS-II-Host-Tx and UHS-ii-Device-Tx Measurements (For models of bandwidth ≥6 GHz only)
- MSO72304DX - Opt. USB - USB 2.0 Compliance Test Software (Requires TDSUSBF USB Test Fixture)
- MSO72304DX - Opt. USBHSIC - USB2.0 and HSIC Bundle, includes options Opt. DJA, HSIC, SR-USB, and USB
- MSO72304DX - Opt. USB3 - USB 3.0 Compliance and Analysis Software (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only)
- MSO72304DX - Opt. VET - Visual Trigger
- MSO72304DX - Opt. 10G-KR - 10GBASE-KR/KR4 Compliance and Debug Solution (Requires Opt. DJA) (For models of bandwidth ≥16 GHz only)
- MSO72304DX - Opt. C3 - Calibration Service 3 Years
- MSO72304DX - Opt. C5 - Calibration Service 5 Years
- MSO72304DX - Opt. D1 - Calibration Data Report
- MSO72304DX - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO72304DX - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO72304DX - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MSO72304DX - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MSO72304DX - Opt. R3 - Repair Service 3 Years (including warranty)
- MSO72304DX - Opt. R5 - Repair Service 5 Years (including warranty)
- MSO72304DX - Opt. L0 - English manual
- MSO72304DX - Opt. L1 - French manual
- MSO72304DX - Opt. L3 - German manual
- MSO72304DX - Opt. L5 - Japanese manual
- MSO72304DX - Opt. L7 - Simplified Chinese manual
- MSO72304DX - Opt. L8 - Traditional Chinese manual
- MSO72304DX - Opt. L9 - Korean manual
- MSO72304DX - Opt. L10 - Russian manual
- MSO72304DX - Opt. L99 - No manual
- MSO72304DX - Opt. A0 - North America power plug (115 V, 60 Hz)
- MSO72304DX - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO72304DX - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO72304DX - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MSO72304DX - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MSO72304DX - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- MSO72304DX - Opt. A10 - China power plug (50 Hz)
- MSO72304DX - Opt. A11 - India power plug (50 Hz)
- MSO72304DX - Opt. A12 - Brazil power plug (60 Hz)
- MSO72304DX - Opt. A99 - No power cord
| Model | MSO72304DX |
|---|
Le Tektronix MSO72304DX offre une bande passante de 23 GHz et jusqu'à 200 Mégasamples avec MultiView Zoom™, permettant une capture rapide du signal. Il atteint plus de 300 000 formes d'onde/s avec une analyse de l'intégrité du signal avancée et plus de 1400 combinaisons de déclenchement.
Parfait pour la conception et les tests série haute vitesse, il prend en charge le déclenchement de motif série jusqu'à 3,125 Gb/s et l'analyse de PCI Express, HDMI, USB 2.0, Ethernet, etc.
Testwall peut fournir l’oscilloscope mixte d’occasion Tektronix MSO72304DX, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit des instruments performants, fiables et de qualité. Contactez-nous pour l'étalonnage ou la réparation du Tektronix MSO72304DX.
