Tektronix MSO73304DX

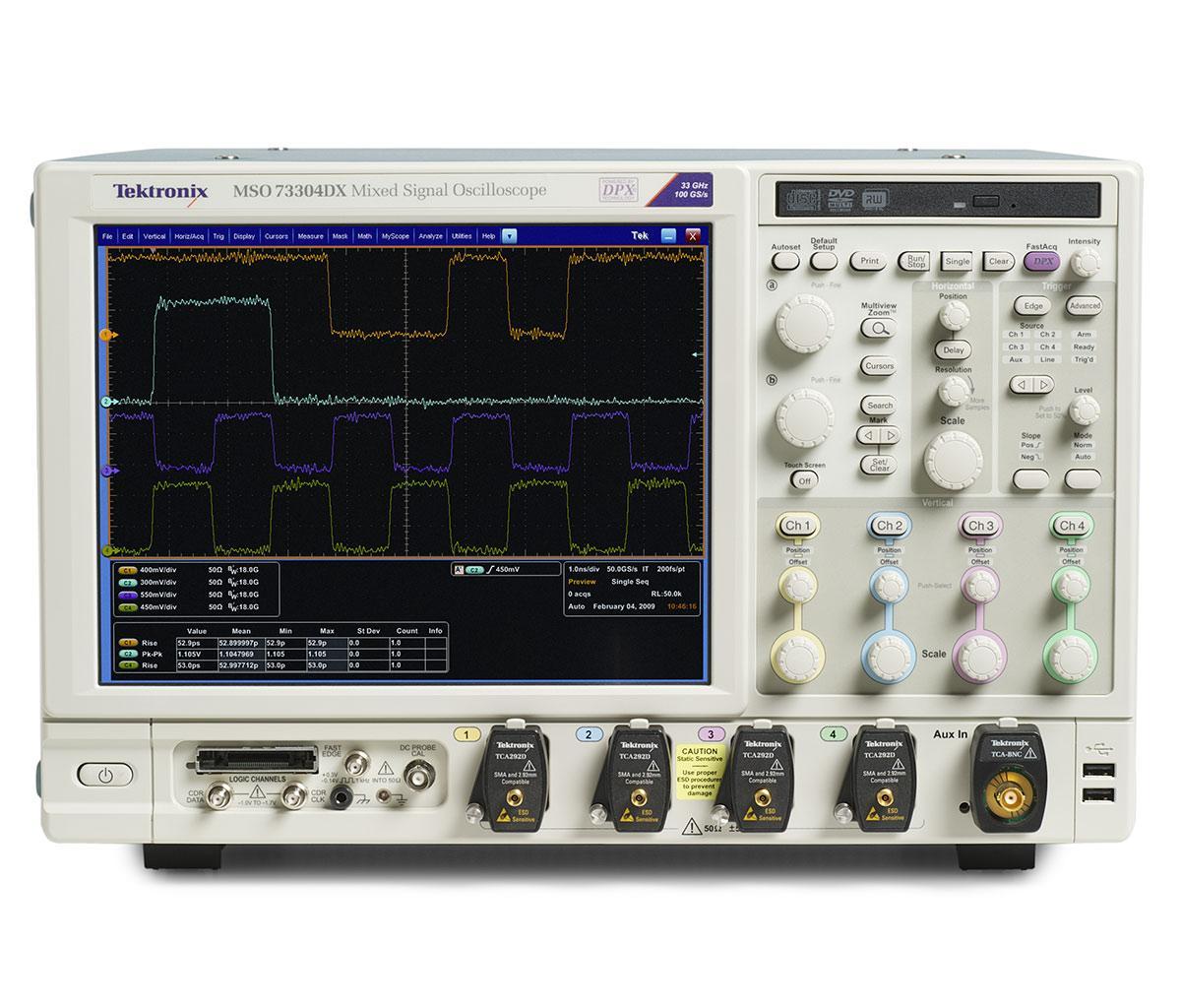

4+16-CH, DIGITAL, 33GHz Mixed Signal Oscilloscope
33 GHz Largeur de bande
4 voies analogiques Nombre de voies
100 GS/s Taux d'échantillonnage
8 bits Résolution verticale
250 Mpoints par voie Longueur d'enregistrement
| Attribut | Valeur |
|---|---|
| Largeur de bande | 33 GHz |
| Nombre de voies | 4 voies analogiques |
| Taux d'échantillonnage | 100 GS/s |
| Résolution verticale | 8 bits |
| Longueur d'enregistrement | 250 Mpoints par voie |
| Voies logiques numériques | 16 voies numériques (MSO) |
| Sensibilité verticale | 1 mV/div à 1 V/div |
| Fréquence de mise à jour des formes d'onde | 340 000 formes d'onde par seconde |
| Interface utilisateur et connectivité | Écran tactile, USB, LAN (LXI), DisplayPort |
| Conformité et normes | Analyses intégrées pour les standards série : PCIe, USB, DDR, MIPI |
Tektronix MSO73304DX Options:
- MSO73304DX - Opt. 5XL - 62.5 MS/Ch (Standard on MSO models)
- MSO73304DX - Opt. 10XL - 125 MS/Ch
- MSO73304DX - Opt. 20XL - 250 MS/Ch (For models of bandwidth ≥12.5 GHz only)
- MSO73304DX - Opt. 50XL - 500 MS/Ch on 4 channels, 1 G/Ch on 2 channels (DX models only)
- MSO73304DX - Opt. SSD - Additional Removable Disk – Solid State Drive (Standard on DX models)
- MSO73304DX - Opt. LT - Waveform Limit Testing
- MSO73304DX - Opt. MTH - Mask Testing for Serial Standards. Includes hardware clock recovery for up to 3.125 Gb/s (standard on MSO models)
- MSO73304DX - Opt. ST6G - Protocol Triggering and Decoding for 8b/10b-encoded Serial Signals (Up to 6.25 Gb/s). Includes hardware clock recovery and pattern lock triggering (standard on MSO models)
- MSO73304DX - Opt. D-PHY - MIPI® D-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO73304DX - Opt. DDRA - DDR Memory Bus Analysis (Requires Opt. DJA)
- MSO73304DX - Opt. DJA - DPOJET Advanced Jitter and Eye Diagram Analysis (standard on MSO models)
- MSO73304DX - Opt. DP12 - DisplayPort 1.2 Source Test Automation Software (Requires Opt. DJA) (Requires Opt. 5XL or higher)
- MSO73304DX - Opt. DSA - Digital Serial Analysis Bundle (includes 5XL, DJA, MTH, ST6G)
- MSO73304DX - Opt. ERRDT - Frame and Bit Error Rate Detector for High-speed Serial Standards (Requires Opt. ST6G)
- MSO73304DX - Opt. ET3 - Ethernet Compliance Test Software (Requires Ethernet Test Fixture)
- MSO73304DX - Opt. FC-16G - Fiber Channel - 16G DPOJET Essentials
- MSO73304DX - Opt. HSIC - HSIC Essentials - Electrical Validation and Protocol Decode Solution (Requires Opt. DJA)
- MSO73304DX - Opt. HT3 - HDMI Compliance Test Software
- MSO73304DX - Opt. HT3DS - HDMI Direct Synthesis for HDMI 1.4
- MSO73304DX - Opt. MHD - MHL Advanced Analysis and Compliance Software (Requires Opt. DJA and Opt 2XL or higher)
- MSO73304DX - Opt. MOST - Electrical Compliance and Debug Test Solution for MOST50 and MOST150 (Requires Opt. DJA)
- MSO73304DX - Opt. M-PHY - MIPI® M-PHY Essentials – Characterization and Analysis Solution (Requires Opt. DJA)
- MSO73304DX - Opt. M-PHYTX - M-PHY Automated Transmitter Solution (Requires Opt. DJA)
- MSO73304DX - Opt. M-PHYRX - M-PHY Automated Receiver Solution (Requires Opt. ST6G) (Requires Opt. ERRDT)
- MSO73304DX - Opt. PCE3 - PCI Express® Transmitter Compliance and Debug (Requires Opt. DJA) (For models of bandwidth ≥6 GHz only)
- MSO73304DX - Opt. PWR - Power Measurement and Analysis Software
- MSO73304DX - Opt. SAS3 - SAS3 12 GB/s Essentials (Requires Opt. DJA and 2XL or higher) (For models of bandwidth ≥20 GHz only)
- MSO73304DX - Opt. SFP-TX - SFP+ Compliance and Debug Solution (Requires Opt. DJA)
- MSO73304DX - Opt. SFP-WDP - SFP+ Compliance and Debug Solution – WDP Measurement (Requires Opt. DJA)
- MSO73304DX - Opt. SDLA64 - Serial Data Link Analysis Visualizer
- MSO73304DX - Opt. SR-AERO - Aerospace Serial Triggering and Analysis (MIL-STD-1553B)
- MSO73304DX - Opt. SR-AUTO - Automotive Serial Triggering and Analysis (CAN/LIN/FlexRay)
- MSO73304DX - Opt. SR-COMP - Computer Serial Triggering and Analysis (RS-232/422/485/UART)
- MSO73304DX - Opt. SR-CUST - Custom Serial Analysis (standard on all models)
- MSO73304DX - Opt. SR-DPHY - MIPI® D-PHY (DSI / CSI2) Serial Analysis
- MSO73304DX - Opt. SR-EMBD - Embedded Serial Triggering and Analysis (I2C, SPI) (standard on MSO models)
- MSO73304DX - Opt. SR-ENET - Ethernet Serial Analysis (10BASE-T and 100BASE-TX)
- MSO73304DX - Opt. SR-PCIE - PCI Express Serial Analysis
- MSO73304DX - Opt. SR-USB - USB Serial Triggering and Analysis
- MSO73304DX - Opt. SVA - AM/FM/PM Audio Signal Analysis (Requires Opt. SVE)
- MSO73304DX - Opt. SVE - SignalVu® Essentials – Vector Signal Analysis Software
- MSO73304DX - Opt. SVM - General Purpose Modulation Analysis (Requires Opt. SVE)
- MSO73304DX - Opt. SVO - Flexible OFDM Analysis (Requires Opt. SVE)
- MSO73304DX - Opt. SVP - Advanced Signal Analysis (including pulse measurements) (Requires Opt. SVE)
- MSO73304DX - Opt. SVT - Frequency and Phase Settling Time Measurements (Requires Opt. SVE)
- MSO73304DX - Opt. TBT-TX - Thunderbolt Transmitter Characterization, Debug, and Compliance Testing (Requires Opt. DJA and Opt. 2XL or higher) (For models of bandwidth ≥16 GHz only)
- MSO73304DX - Opt. UHS2 - UHS-II-Host-Tx and UHS-ii-Device-Tx Measurements (For models of bandwidth ≥6 GHz only)
- MSO73304DX - Opt. USB - USB 2.0 Compliance Test Software (Requires TDSUSBF USB Test Fixture)
- MSO73304DX - Opt. USBHSIC - USB2.0 and HSIC Bundle, includes options Opt. DJA, HSIC, SR-USB, and USB
- MSO73304DX - Opt. USB3 - USB 3.0 Compliance and Analysis Software (Requires Opt. DJA) (For models of bandwidth ≥8 GHz only)
- MSO73304DX - Opt. VET - Visual Trigger
- MSO73304DX - Opt. 10G-KR - 10GBASE-KR/KR4 Compliance and Debug Solution (Requires Opt. DJA) (For models of bandwidth ≥16 GHz only)
- MSO73304DX - Opt. C3 - Calibration Service 3 Years
- MSO73304DX - Opt. C5 - Calibration Service 5 Years
- MSO73304DX - Opt. D1 - Calibration Data Report
- MSO73304DX - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO73304DX - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO73304DX - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MSO73304DX - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MSO73304DX - Opt. IF - Upgrade Installation Service
- MSO73304DX - Opt. R3 - Repair Service 3 Years (including warranty)
- MSO73304DX - Opt. R5 - Repair Service 5 Years (including warranty)
- MSO73304DX - Opt. L0 - English manual
- MSO73304DX - Opt. L1 - French manual
- MSO73304DX - Opt. L3 - German manual
- MSO73304DX - Opt. L5 - Japanese manual
- MSO73304DX - Opt. L7 - Simplified Chinese manual
- MSO73304DX - Opt. L8 - Traditional Chinese manual
- MSO73304DX - Opt. L9 - Korean manual
- MSO73304DX - Opt. L10 - Russian manual
- MSO73304DX - Opt. L99 - No manual
- MSO73304DX - Opt. A0 - North America power plug (115 V, 60 Hz)
- MSO73304DX - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO73304DX - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO73304DX - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MSO73304DX - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MSO73304DX - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- MSO73304DX - Opt. A10 - China power plug (50 Hz)
- MSO73304DX - Opt. A11 - India power plug (50 Hz)
- MSO73304DX - Opt. A12 - Brazil power plug (60 Hz)
- MSO73304DX - Opt. A99 - No power cord
| Model | MSO73304DX |
|---|
L'oscilloscope mixte Tektronix MSO73304DX offre une bande passante de 33 GHz sur 2 canaux et de 23 GHz sur 4 canaux, avec 4 canaux analogiques et 16 numériques pour une analyse rapide des signaux mixtes. Il propose un échantillonnage de 100 GS/s, un temps de montée de 13 ps (10-90 %), et des connexions via ports USB 2.0, Ethernet intégré et sortie vidéo.
Parfait pour les ingénieurs du prototypage aux tests de production, le MSO73304DX accélère la validation grâce à une acquisition de signal exceptionnelle et une analyse intuitive.

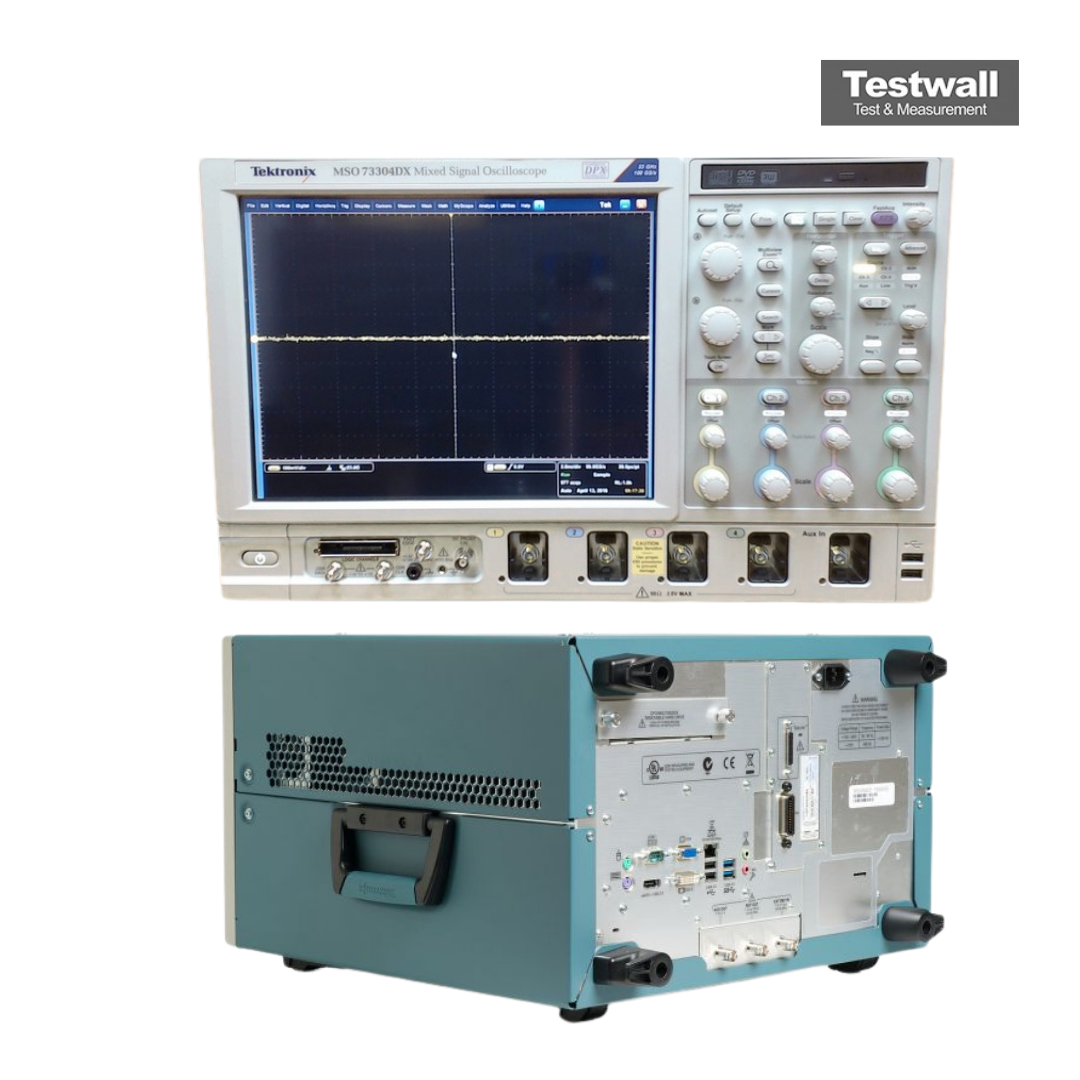

Testwall peut fournir le Tektronix MSO73304DX d'occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit des instruments performants et un service inégalé. Contactez-nous pour la calibration ou la réparation du Tektronix MSO73304DX.
