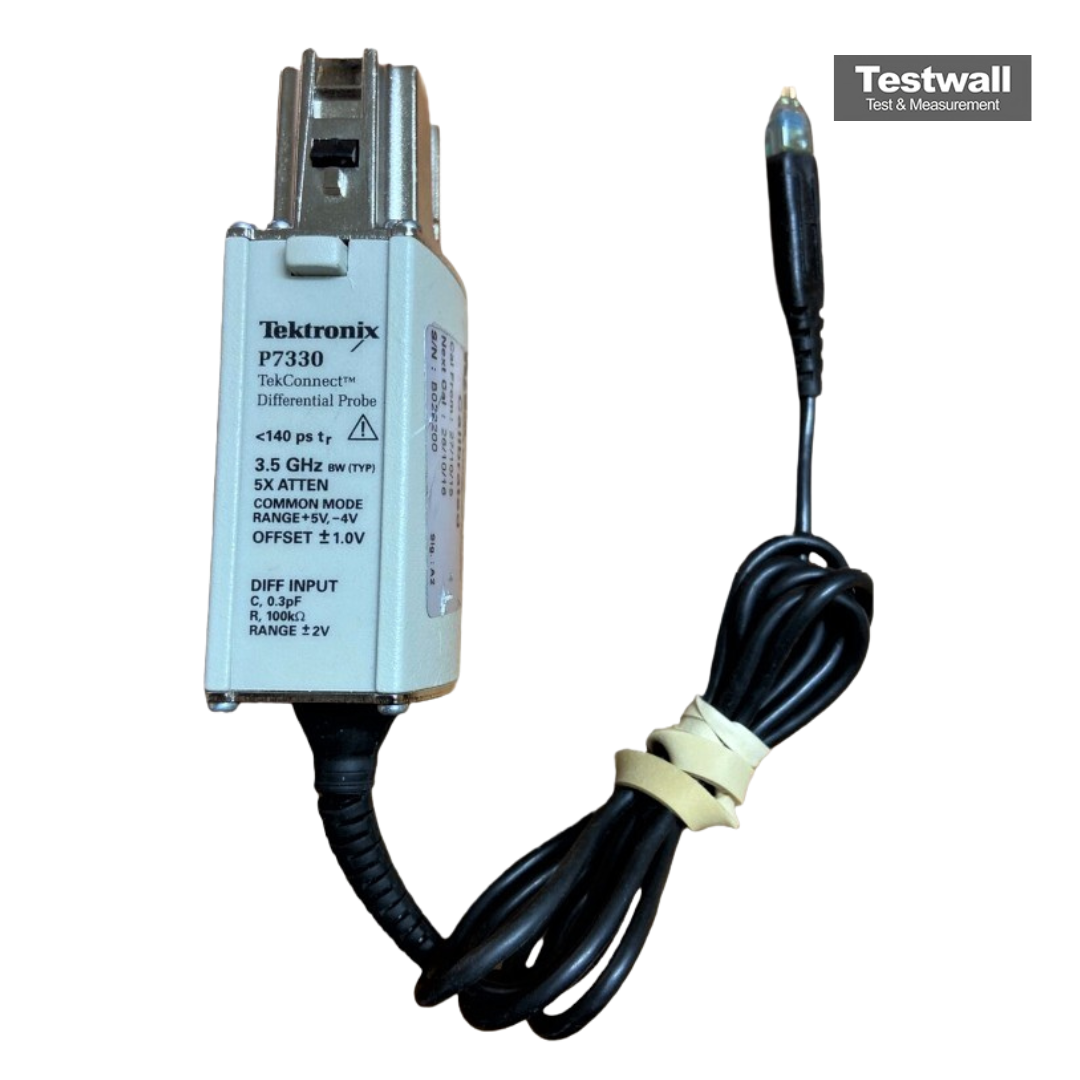

Tektronix P7330

Differential Probe, 3.5 GHz TC Interface
3,5 GHz Bande passante
<140 ps Temps de montée
Sonde différentielle active Type de sonde
5:1 Rapport d'atténuation
100 kΩ ∥ 0,3 pF (différentiel) Impédance d'entrée
Demander la fiche technique
Attribut Valeur
Bande passante 3,5 GHz
Temps de montée <140 ps
Type de sonde Sonde différentielle active
Rapport d'atténuation 5:1
Impédance d'entrée 100 kΩ ∥ 0,3 pF (différentiel)
Plage dynamique ±2 V différentiel ; +5 V à −4 V Mode commun
Tension d'entrée maximale ±25 V (DC + pic AC)
Taux de réjection du mode commun (CMRR) >60 dB à 1 MHz
Interface de connexion TekConnect
Tektronix P7330 Options:
  • P7330 - C3 - Calibration Service 3 Years
  • P7330 - C5 - Calibration Service 5 Years
  • P7330 - D3 - Calibration Data Report 3 Years (with Opt. C3)
  • P7330 - D5 - Calibration Data Report 5 Years (with Opt. C5)
  • P7330 - G3 - Complete Care 3 Years (includes loaner and more)
  • P7330 - G5 - Complete Care 5 Years (includes loaner and more)
  • P7330 - R3 - Repair Service 3 Years (including warranty)
  • P7330 - R5 - Repair Service 5 Years (including warranty)
Formulaire d'étalonnage Tektronix P7330

Formulaire de réparation Tektronix P7330
Maximum file size: 40MB

Tektronix P7330The Tektronix P7350 high bandwidth diffeial probes offers superb signal fidelity, meeting the needs of engineers in design and debug of technologies with very fast clock speeds and edge rates. The Tekronix P7330 provides a high bandwidth, low-circuit loading, low-noise diffeial probing solution for high speed circuit designers. The Tektronix P7350 improves usability with variable spacing and solder down capability, and a small form factor for ease of use on densely packed circuit boards with difficult-to-reach probe points. It employs a "TekConnect" interface, which preserves signal integrity to 10 GHz and beyond to meet present and future bandwidth needs. The Tektronix P7330 enables users to make time domain or frequency domain measurements on high bandwidth signals commonly found in digital IC designs, communication applications, and disk drive applications.
