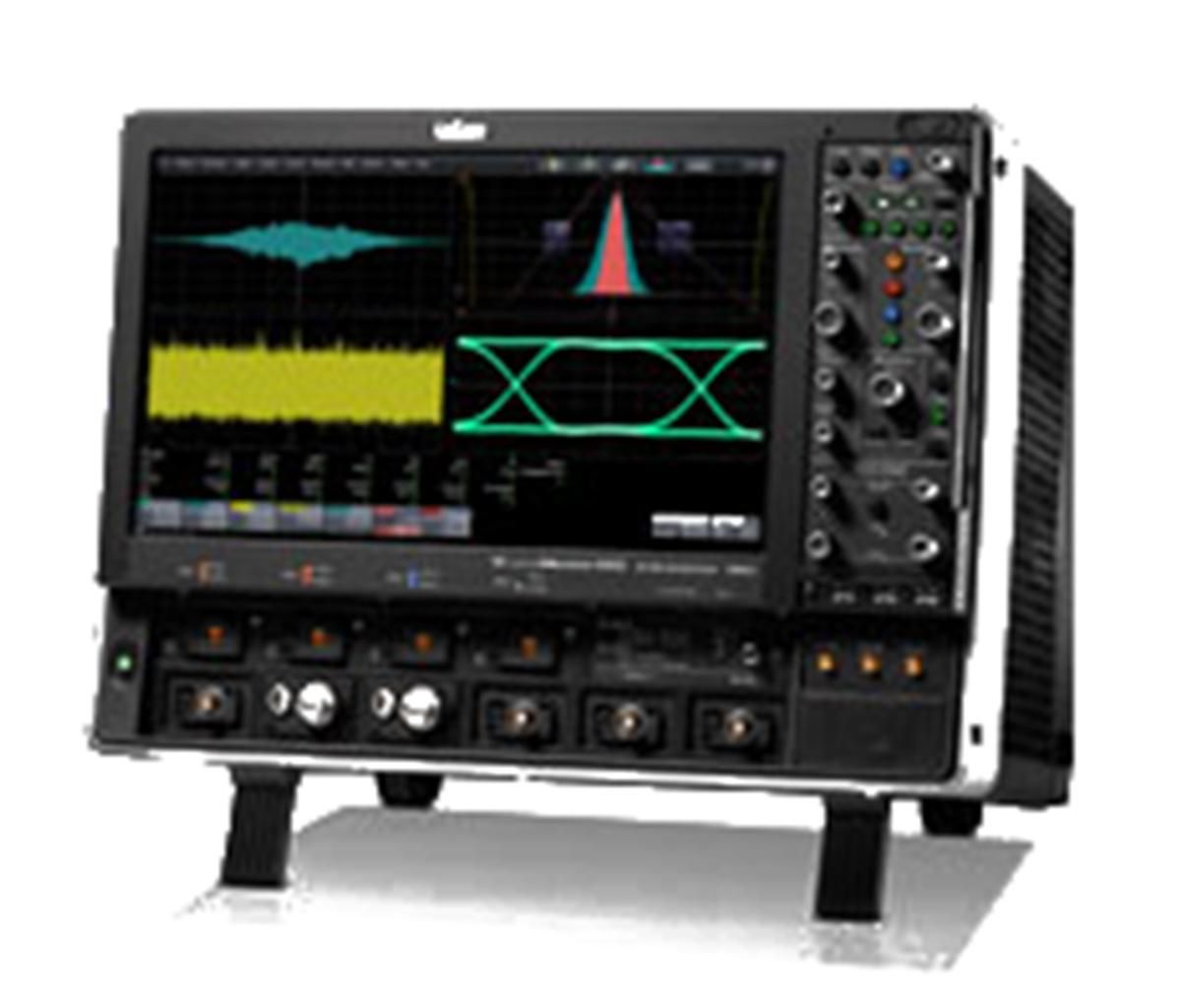

Teledyne LeCroy SDA-813ZI-B
4 Ch 13 GHz Serial Data Analyzer
13 GHz Largeur de bande passante
40 GS/s Taux d'échantillonnage
4 voies Nombre de voies
256 Mpts/voie Mémoire d'acquisition
8 bits Résolution verticale
| Attribut | Valeur |
|---|---|
| Largeur de bande passante | 13 GHz |
| Taux d'échantillonnage | 40 GS/s |
| Nombre de voies | 4 voies |
| Mémoire d'acquisition | 256 Mpts/voie |
| Résolution verticale | 8 bits |
| Sensibilité verticale | 1 mV/div à 1 V/div |
| Plage de temps de montée | 26,9 ps |
| Interface d'entrée | Connecteurs SMA 50 Ω |
| Affichage | Écran tactile LCD 15,3 pouces |
| Système d'exploitation | Windows 10 intégré |
Teledyne LeCroy SDA-813ZI-B Options:
- SDA-813ZI-B - SDA8Zi-STD - 64 Mpts/Ch Standard Memory for SDA 8 Zi-B, Includes 8 GB of RAM
- SDA-813ZI-B - SDA8Zi-L-128 - 128 Mpts/Ch Memory Option for SDA 8 Zi-B
- SDA-813ZI-B - SDA8Zi-VL-256 - 256 Mpts/Ch Memory Option for SDA 8 Zi-B
- SDA-813ZI-B - WM8Zi-8-UPG-16GBRAM - 8 GB to 16 GB CPU RAM Option
- SDA-813ZI-B - WM8Zi-8-UPG-32GBRAM - 8 GB to 32 GB CPU RAM Option
- SDA-813ZI-B - GPIB-4 - GPIB Option for Teledyne LeCroy Oscilloscope, Half-height Card
- SDA-813ZI-B - SDA8Zi-UPG-14GBIT-80b-SYMBOL-TD - 80-bit NRZ, 8b/10b, and 64b/66b 14.1 Gbps Serial Trigger upgrade option. Also includes 8b/10b and 64b/66b decode.
- SDA-813ZI-B - SDA8Zi-CompleteLinQ - Complete Multi-Lane SDA LinQ Framework, including Eye, Jitter, Noise, Crosstalk Measurements, with EyeDrII and VirtualProbe
- SDA-813ZI-B - SDA8Zi-CrossLinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye, Jitter, Noise and Crosstalk Measurements
- SDA-813ZI-B - SDA8Zi-LinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye and Jitter Measurements
- SDA-813ZI-B - SDA8Zi-Crosstalk - Single-Lane Serial Data Analysis Framework, Eye, Jitter, Noise and Crosstalk Measurements
- SDA-813ZI-B - WM8Zi-SDAIII - Single-Lane Serial Data Analysis Framework, Eye and Jitter Measurements
- SDA-813ZI-B - WM8Zi-PAM4 - PAM4 Signal Analysis
- SDA-813ZI-B - WM8Zi-VIRTUALPROBE - Advanced De-embedding, Emulation and Virtual Probing Toolkit
- SDA-813ZI-B - WM8Zi-EYEDRII - Signal Integrity Toolkit - Channel & Fixture De-embedding/Emulation, Tx/Rx Equalization
- SDA-813ZI-B - WM8Zi-EYEDRII-VP - Bundle - EyeDrII and VirtualProbe Toolkits
- SDA-813ZI-B - WM8Zi-CBL-DE-EMBED - Cable De-embed Option
- SDA-813ZI-B - WM8Zi-VECTORLINQ - VectorLinQ – Flexible vector signal analysis for electrical signals (RF and baseband I-Q)
- SDA-813ZI-B - WM8Zi-OPTICAL-LINQ - Optical-LinQ – Coherent optical modulation analysis
- SDA-813ZI-B - WM8Zi-JITKIT - Clock and Clock-Data Timing Jitter Analysis Package
- SDA-813ZI-B - WM8Zi-SPECTRUM - Spectrum Analyzer Mode
- SDA-813ZI-B - WM8ZI-DDR2-TOOLKIT - DDR2 and LPDDR2 Debug Toolkit
- SDA-813ZI-B - WM8ZI-DDR3-TOOLKIT - DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit
- SDA-813ZI-B - WM8ZI-DDR4-TOOLKIT - DDR4, DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit
- SDA-813ZI-B - WM8ZI-UPG-DDR3-TOOLKIT - DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit Upgrade
- SDA-813ZI-B - WM8ZI-UPG-DDR4-TOOLKIT - DDR4, DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit Upgrade
- SDA-813ZI-B - QPHY-10GBase-KR - QualiPHY Enabled 10GBase-KR Software Option
- SDA-813ZI-B - QPHY-10GBASE-T - QualiPHY Enabled 10GBase-T Software Option
- SDA-813ZI-B - QPHY-BroadR-Reach - QualiPHY Enabled BroadR-Reach Software Option
- SDA-813ZI-B - QPHY-DDR2 - QualiPHY Enabled DDR2 Software Option
- SDA-813ZI-B - QPHY-DDR3 - QualiPHY Enabled DDR3 Software Option
- SDA-813ZI-B - QPHY-DDR4 - QualiPHY Enabled DDR4 Software Option
- SDA-813ZI-B - QPHY-DisplayPort - QualiPHY Enabled DisplayPort Software Option
- SDA-813ZI-B - QPHY-eDP - QualiPHY Enabled Embedded DisplayPort Software Option
- SDA-813ZI-B - QPHY-ENET - QualiPHY Enabled Ethernet 10/100/1000BT Software Option
- SDA-813ZI-B - QPHY-HDMI2 - QualiPHY Enabled HDMI 1.4 and HDMI 2 Software Option
- SDA-813ZI-B - QPHY-LPDDR2 - QualiPHY Enabled LPDDR2 Software Option
- SDA-813ZI-B - QPHY-MIPI-DPHY - QualiPHY Enabled MIPI D-PHY Software Option
- SDA-813ZI-B - QPHY-MIPI-MPHY - QualiPHY Enabled MIPI M-PHY Software Option
- SDA-813ZI-B - QPHY-MOST50 - QualiPHY Enabled MOST50 ePHY Software Option
- SDA-813ZI-B - QPHY-MOST150 - QualiPHY Enabled MOST150 oPHY Software Option
- SDA-813ZI-B - QPHY-PCIe3 - QualiPHY Enabled PCIe 3.0 Software Option
- SDA-813ZI-B - QPHY-PCIe - QualiPHY Enabled PCIe Gen1 Software Option
- SDA-813ZI-B - QPHY-SATA-TSG-RSG - QualiPHY Enabled SATA Software Option
- SDA-813ZI-B - QPHY-SAS2 - QualiPHY Enabled SAS-2 Software Option
- SDA-813ZI-B - QPHY-SAS3 - QualiPHY Enabled SAS-3 Software Option
- SDA-813ZI-B - QPHY-SFI - QualiPHY Enabled SFI Software Option
- SDA-813ZI-B - QPHY-USB - QualiPHY Enabled USB 2.0 Software Option
- SDA-813ZI-B - QPHY-USB3-Tx-Rx - QualiPHY Enabled USB 3.0 Transmitter/Receiver Compliance Software Option
- SDA-813ZI-B - QPHY-USB3.1-Tx-Rx - QualiPHY Enabled USB 3.1 Transmitter/Receiver Compliance Software Option
- SDA-813ZI-B - HDA125-18-LBUS - 12.5 GS/s High-speed Digital Analyzer with 18ch QuickLink leadset and LBUS connection
- SDA-813ZI-B - HDA125-09-LBUS - 12.5 GS/s High-speed Digital Analyzer with 9ch QuickLink leadset and LBUS connection
- SDA-813ZI-B - MS-500 - 500 MHz, 2 GS/s, 18 Ch, 50 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-813ZI-B - MS-500-36 - 250 MHz, 1 GS/s, 36 Ch, 25 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-813ZI-B - MS-250 - 250 MHz, 1 GS/s, 18 Ch, 10 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-813ZI-B - LSIB-1 - High-speed PCIe Gen1 x4 Digitizer Output
- SDA-813ZI-B - WM8Zi-DFP2 - Digital Filter Software Package
- SDA-813ZI-B - WM8Zi-SDM - Serial Data Mask Software Package
- SDA-813ZI-B - WM8Zi-PWR - Power Analysis Option
- SDA-813ZI-B - WM8Zi-EMC - EMC Pulse Parameter Software Package
| Model | SDA-813ZI-B |
|---|
Le Teledyne LeCroy SDA-813Zi-B est un oscilloscope numérique performant conçu pour les environnements R&D et QA, offrant une bande passante de 13 GHz, des modules d’analyse de gigue avancée, des bibliothèques de décodage de protocoles complètes, et une mémoire d’acquisition étendue de 512 Mpts par canal, permettant un débogage en temps réel des signaux USB 3.1 et DisplayPort complexes.
Cet instrument hautes performances offre une validation précise des signaux, une capture profonde et des tests de protocoles avancés adaptés aux processus de développement et de contrôle qualité exigeants.
Testwall peut fournir le Teledyne LeCroy SDA-813Zi-B d’occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit des instruments performants avec une fiabilité et un service inégalés. Veuillez nous contacter directement si vous avez besoin d’étalonnage ou de réparation du Teledyne LeCroy SDA-813Zi-B.
