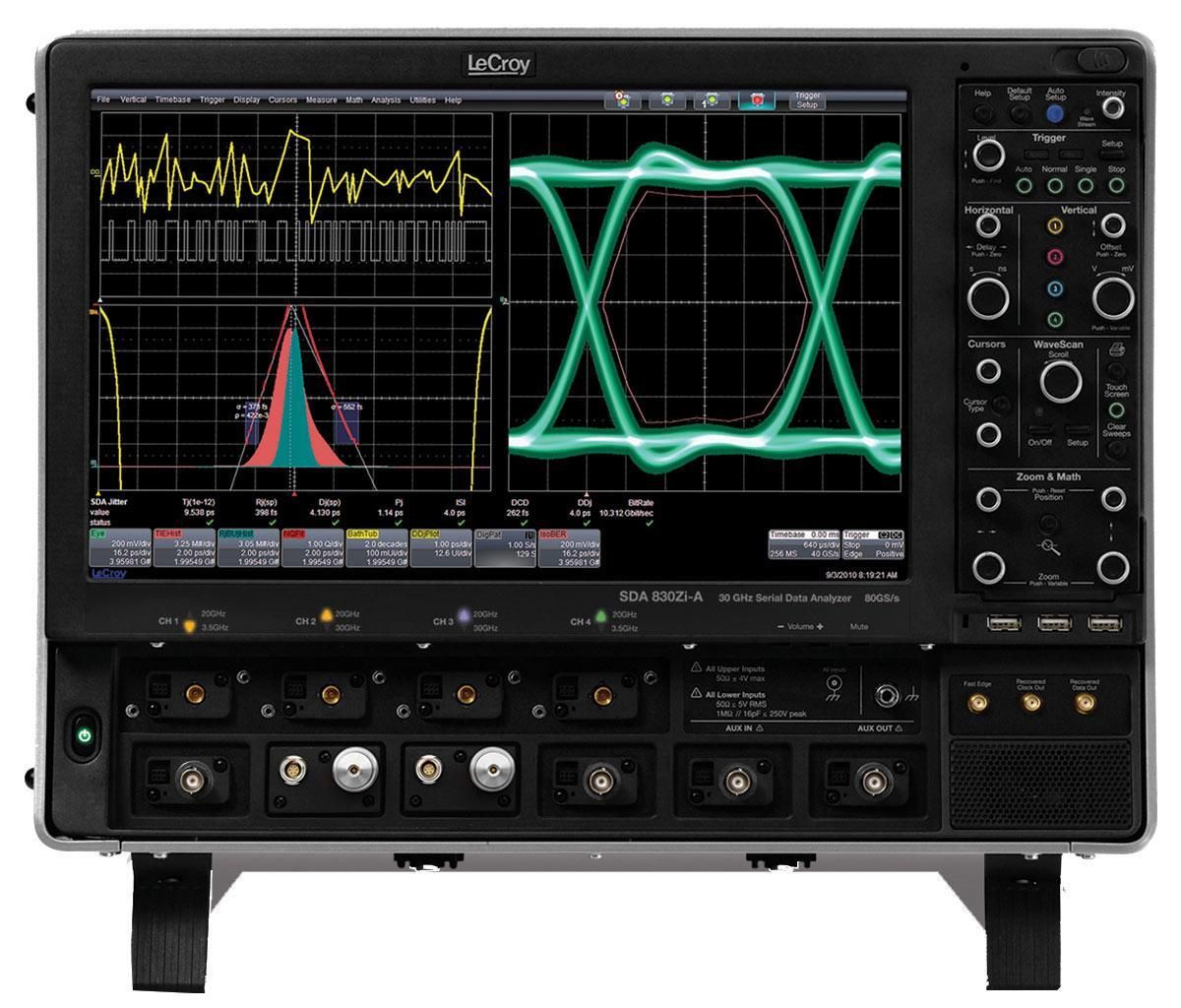

Teledyne LeCroy SDA-816ZI-A
4 Ch 16 GHz Serial Data Analyzer
16 GHz Bande passante
4 voies Nombre de voies
40 GS/s Taux d'échantillonnage
256 Mpts/voie Longueur de mémoire
8 bits Résolution verticale
| Attribut | Valeur |
|---|---|
| Bande passante | 16 GHz |
| Nombre de voies | 4 voies |
| Taux d'échantillonnage | 40 GS/s |
| Longueur de mémoire | 256 Mpts/voie |
| Résolution verticale | 8 bits |
| Sensibilité verticale | 1 mV/div à 1 V/div |
| Base de temps | 20 ps/div à 1000 s/div |
| Gigue (Jitter Floor) | 100 fs RMS |
| Interface utilisateur | Écran tactile LCD couleur 15,3 pouces |
| Connectivité | USB, Ethernet, GPIB (optionnel) |
Teledyne LeCroy SDA-816ZI-A Options:
- SDA-816ZI-A - SDA8Zi-STD - 32 Mpts/Ch Standard Memory for SDA 8 Zi-A, Includes 8 GB of RAM
- SDA-816ZI-A - SDA8Zi-M-64 - 64 Mpts/Ch Memory Option for SDA 8 Zi-A
- SDA-816ZI-A - SDA8Zi-L-128 - 128 Mpts/Ch Memory Option for SDA 8 Zi-A
- SDA-816ZI-A - SDA8Zi-VL-256 - 256 Mpts/Ch Memory Option for SDA 8 Zi-A
- SDA-816ZI-A - WM8Zi-500GB-HD - Upgrade from 160 GB Hard Drive to 500 GB Hard Drive
- SDA-816ZI-A - WM8Zi-160GB-RHD-02 - Additional 160 GB Hard Drive, Includes Windows 7 OS, Teledyne LeCroy Oscilloscope Software and Critical Scope Operational File Duplicates
- SDA-816ZI-A - WM8Zi-500GB-RHD-02 - Additional 500 GB Hard Drive, Includes Windows 7 OS, Teledyne LeCroy Oscilloscope Software and Critical Scope Operational File Duplicates
- SDA-816ZI-A - GPIB-2 - GPIB Option for Teledyne LeCroy Oscilloscope, Half-height Card
- SDA-816ZI-A - WM8Zi-8-UPG-16GBRAM - 8 GB to 16 GB CPU RAM Option
- SDA-816ZI-A - WM8Zi-8-UPG-32GBRAM - 8 GB to 32 GB CPU RAM Option
- SDA-816ZI-A - SDA8Zi-CompleteLinQ - Bundle - Multi-Lane SDA LinQ Framework, including Eye, Jitter, Noise, Crosstalk Measurements, with EyeDrII and VirtualProbe
- SDA-816ZI-A - SDA8Zi-CrossLinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye, Jitter, Noise and Crosstalk Measurements
- SDA-816ZI-A - SDA8Zi-LinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye and Jitter Measurements
- SDA-816ZI-A - SDA8Zi-Crosstalk - Single-Lane Serial Data Analysis Framework, Eye, Jitter, Noise and Crosstalk Measurements
- SDA-816ZI-A - WM8Zi-VIRTUALPROBE - Advanced De-embedding, Emulation and Virtual Probing Toolkit
- SDA-816ZI-A - WM8Zi-EYEDRII - Signal Integrity Toolkit - Channel & Fixture De-embedding/Emulation, Tx/Rx Equalization
- SDA-816ZI-A - WM8Zi-EYEDRII-VP - Bundle - EyeDrII and VirtualProbe Toolkits
- SDA-816ZI-A - WM8Zi-CBL-DE-EMBED - Cable De-embed Option
- SDA-816ZI-A - SDA8Zi-UPG-14GBIT-80B-8B10B-TD - Upgrade to 600 Mb/s to 14.1 Gb/s 80-bit NRZ and 8b/10b Symbol Serial Trigger
- SDA-816ZI-A - QPHY-10GBase-KR - QualiPHY Enabled 10GBase-KR Software Option
- SDA-816ZI-A - QPHY-BroadR-Reach - QualiPHY Enabled BroadR-Reach Software Option
- SDA-816ZI-A - QPHY-DDR2 - QualiPHY Enabled DDR2 Software Option
- SDA-816ZI-A - QPHY-DDR3 - QualiPHY Enabled DDR3 Software Option
- SDA-816ZI-A - QPHY-DisplayPort - QualiPHY Enabled DisplayPort Software Option
- SDA-816ZI-A - QPHY-ENET - QualiPHY Enabled Ethernet 10/100/1000BT Software Option
- SDA-816ZI-A - QPHY-HDMI - QualiPHY Enabled HDMI Software Option
- SDA-816ZI-A - QPHY-LPDDR2 - QualiPHY Enabled LPDDR2 Software Option
- SDA-816ZI-A - QPHY-MIPI-DPHY - QualiPHY Enabled MIPI D-PHY Software Option
- SDA-816ZI-A - QPHY-MOST50 - QualiPHY Enabled MOST50 ePHY Software Option
- SDA-816ZI-A - QPHY-MOST150 - QualiPHY Enabled MOST150 oPHY Software Option
- SDA-816ZI-A - QPHY-PCIe3 - QualiPHY Enabled PCIe 3.0 Software Option
- SDA-816ZI-A - QPHY-PCIe - QualiPHY Enabled PCIe Gen1 Software Option
- SDA-816ZI-A - QPHY-SATA-TSG-RSG - QualiPHY Enabled SATA Software Option
- SDA-816ZI-A - QPHY-SAS2 - QualiPHY Enabled SAS-2 Software Option
- SDA-816ZI-A - QPHY-SFI - QualiPHY Enabled SFI Software Option
- SDA-816ZI-A - QPHY-USB - QualiPHY Enabled USB 2.0 Software Option
- SDA-816ZI-A - QPHY-USB3-Tx-Rx - QualiPHY Enabled SuperSpeed USB Transmitter/Receiver Compliance Software Option
- SDA-816ZI-A - WM8Zi-64b66b D - 64b/66b Decode Annotation Option
- SDA-816ZI-A - WM8Zi-8B10B D - 8b/10b Decode Annotation Option
- SDA-816ZI-A - WM8Zi-ENETbus D - ENET Decode Option
- SDA-816ZI-A - WM8Zi-ENET10Gbus D - Ethernet 10G Decode Option
- SDA-816ZI-A - WM8Zi-PCIEbus D - PCI Express Decode Annotation Option
- SDA-816ZI-A - WM8Zi-USB3bus D - USB 3.0 Decode Annotation Option
- SDA-816ZI-A - WM8Zi-USB2bus D - USB 2.0 Decode Annotation Option
- SDA-816ZI-A - WM8Zi-USB2-HSICbus D - USB2-HSIC Decode Option
- SDA-816ZI-A - WM8Zi-SATAbus D - SATA Decode Annotation Option
- SDA-816ZI-A - WM8Zi-SASbus D - SAS Decode Annotation Option
- SDA-816ZI-A - WM8Zi-FCbus D - Fibre Channel Decode Annotation Option
- SDA-816ZI-A - WM8Zi-DPHYbus D - D-PHY Decode Option
- SDA-816ZI-A - WM8Zi-DigRF3Gbus D - DigRF 3G Decode Option
- SDA-816ZI-A - WM8Zi-DIGRFv4bus D - DigRF v4 Decode Option
- SDA-816ZI-A - WM8Zi-Audiobus TD - Audiobus Trigger and Decode Option for I2S, LJ, RJ, and TDM
- SDA-816ZI-A - WM8Zi-Audiobus TDG - Audiobus Trigger, Decode, and Graph Option for I2S, LJ, RJ, and TDM
- SDA-816ZI-A - WM8Zi-Manchesterbus D - Manchester Decode Option
- SDA-816ZI-A - WM8Zi-DPHYbus DP - MIPI D-PHY Decode and Physical Layer Test Option
- SDA-816ZI-A - WM8Zi-MPHYbus D - MIPI M-PHY Decode Annotation Option
- SDA-816ZI-A - WM8Zi-MPHYbus DP - MIPI M-PHY Decode Annotation and Physical Layer Test Option
- SDA-816ZI-A - WM8Zi-I2Cbus TD - I2C Bus Trigger and Decode Option
- SDA-816ZI-A - WM8Zi-SPIbus TD - SPI Bus Trigger and Decode Option
- SDA-816ZI-A - WM8Zi-LINbus TD - LIN Trigger and Decode Option
- SDA-816ZI-A - WM8Zi-UART-RS232bus TD - UART and RS-232 Trigger and Decode Option
- SDA-816ZI-A - WM8Zi-FlexRaybus TD - FlexRay Trigger and Decode Option
- SDA-816ZI-A - WM8Zi-FlexRaybus TDP - FlexRay Trigger, Decode, and Physical Layer Test Option
- SDA-816ZI-A - WM8Zi-SENTbus D - SENT Decode Option
- SDA-816ZI-A - WM8Zi-CANbus TD - CANbus Trigger and Decode Option
- SDA-816ZI-A - WM8Zi-CANbus TDM - CANbus Trigger, Decode and Measure/Graph Option
- SDA-816ZI-A - WM8Zi-1553 TD - MIL-STD-1553 Trigger and Decode Option
- SDA-816ZI-A - WM8Zi-ARINC429bus DSymbolic - ARINC 429 Symbolic Decode Option
- SDA-816ZI-A - WM8Zi-PROTObus MAG - PROTObus MAG Serial Debug Toolkit
- SDA-816ZI-A - WM8Zi-ProtoSync - Decode Annotation and Protocol Analyzer Synchronization Software Option
- SDA-816ZI-A - WM8Zi-ProtoSync-BT - Decode Annotation and Protocol Analyzer + BitTracer Synchronization Software Option
- SDA-816ZI-A - LSIB-1 - High-speed PCIe Gen1 x4 Digitizer Output
- SDA-816ZI-A - MS-500 - 500 MHz, 2 GS/s, 18 Ch, 50 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-816ZI-A - MS-500-36 - 250 MHz, 1 GS/s, 36 Ch, 25 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-816ZI-A - MS-250 - 250 MHz, 1 GS/s, 18 Ch, 10 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-816ZI-A - WM8Zi-SPECTRUM - Spectrum Analysis Option
- SDA-816ZI-A - WM8Zi-DFP2 - Digital Filter Software Package
- SDA-816ZI-A - WM8Zi-SDM - Serial Data Mask Software Package
- SDA-816ZI-A - WM8Zi-EMC - EMC Pulse Parameter Software Package
- SDA-816ZI-A - WM8Zi-PWR - Power Analysis Option
- SDA-816ZI-A - WM8Zi-JITKIT - Clock Jitter Analysis with Four Views Software Package
| Model | SDA-816ZI-A |
|---|
Le oscilloscope Teledyne LeCroy SDA-816Zi-A dispose d'une récupération d’horloge améliorée et d’une interface frontale à faible bruit, le rendant idéal pour le débogage de protocoles émergents comme USB4 et PCIe Gen5 avec intégrité du signal optimisée, mémoire plus profonde et interface graphique réactive.
Conçu pour le débogage haut de gamme et les routines de mesure personnalisées, il prend en charge plusieurs standards série et de longues fenêtres d’acquisition pour garantir flexibilité et précision dans les tests avancés.
Testwall peut fournir le Teledyne LeCroy SDA-816Zi-A d’occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit des instruments performants avec une fiabilité et une qualité de service inégalées. Veuillez nous contacter directement si vous avez besoin d’une calibration ou d’une réparation du Teledyne LeCroy SDA-816Zi-A.
