Teledyne LeCroy

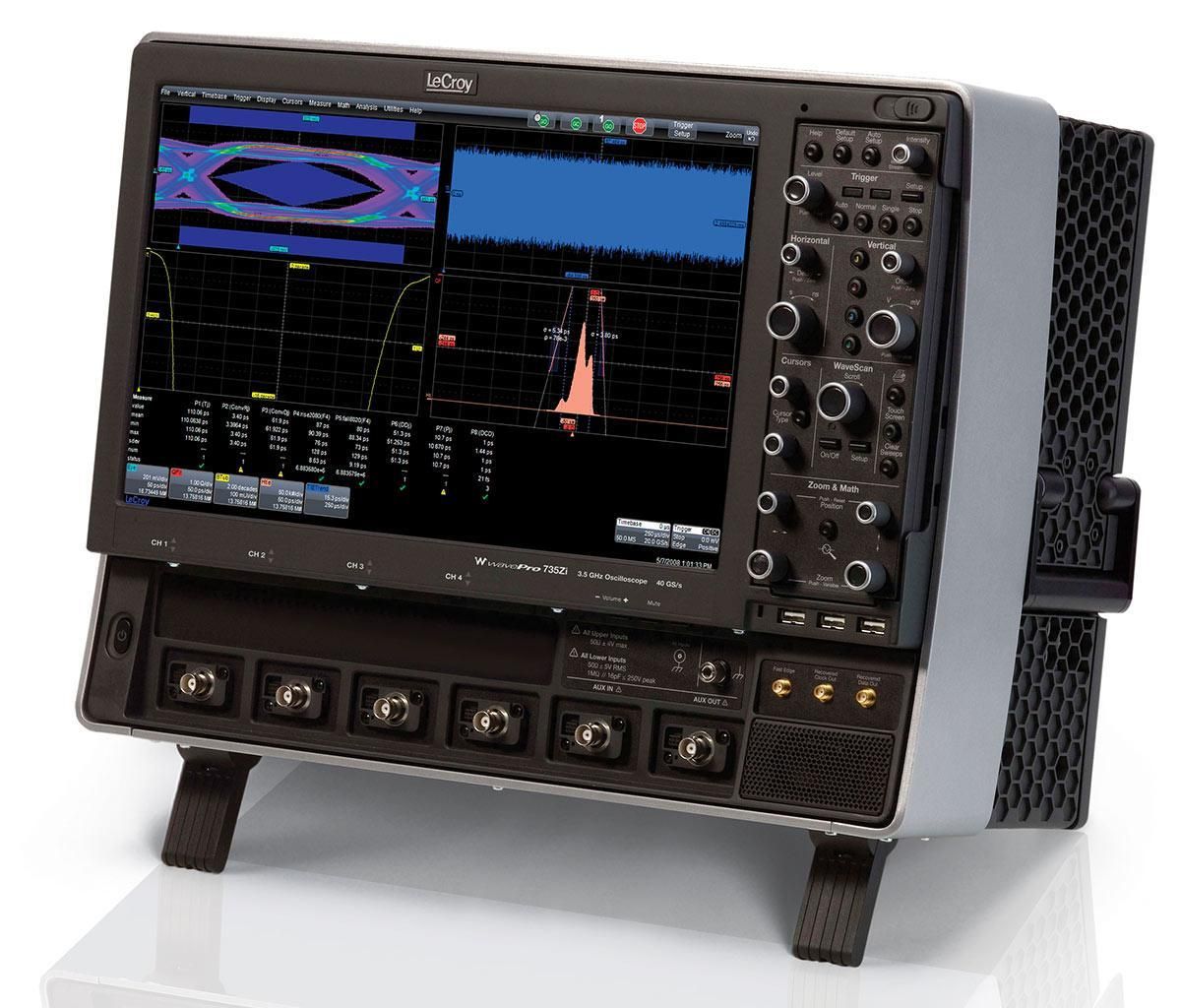

Teledyne LeCroy WAVEPRO735ZI-A
4 Ch 3.5 GHz Digital Oscilloscope
3,5 GHz Bande passante
20 GS/s Taux d'échantillonnage
4 voies analogiques Nombre de voies
256 Mpts/voie Mémoire d'acquisition
8 bits (jusqu'à 11 bits en mode ERES) Résolution verticale
| Attribut | Valeur |
|---|---|
| Bande passante | 3,5 GHz |
| Taux d'échantillonnage | 20 GS/s |
| Nombre de voies | 4 voies analogiques |
| Mémoire d'acquisition | 256 Mpts/voie |
| Résolution verticale | 8 bits (jusqu'à 11 bits en mode ERES) |
| Taille de l'écran | 12,1 pouces, écran tactile couleur |
| Sensibilité verticale | 1 mV/div à 1 V/div |
| Base de temps | 20 ps/div à 800 s/div |
| Entrées numériques | Compatible avec les sondes logiques (MSO en option) |
| Interface de connectivité | USB, Ethernet (LAN), sortie vidéo externe |
Teledyne LeCroy WAVEPRO735ZI-A Options:
- WAVEPRO735ZI-A - WPZi-S-32 - 32 Mpts/Ch (64 Mpts/Ch Interleaved) Memory Option for WavePro 7 Zi-A
- WAVEPRO735ZI-A - WPZi-M-64 - 64 Mpts/Ch (128 Mpts/Ch Interleaved) Memory Option for WavePro 7 Zi-A
- WAVEPRO735ZI-A - WPZi-L-128 - 128 Mpts/Ch (256 Mpts/Ch Interleaved) Memory Option for WavePro 7 Zi-A
- WAVEPRO735ZI-A - WPZi-500GB-RHD - Upgrade from 160 GB HDD to 500 GB Hard Drive
- WAVEPRO735ZI-A - WPZi-160GB-RHD-02 - Additional 160 GB Hard Drive Windows 7 OS, Teledyne LeCroy Oscilloscope Software and Critical Scope Operational File Duplicates
- WAVEPRO735ZI-A - WPZi-500GB-RHD-02 - Additional 500 GB Hard Drive Windows 7 OS, Teledyne LeCroy Oscilloscope Software and Critical Scope Operational File Duplicates
- WAVEPRO735ZI-A - GPIB-2 - GPIB Option for Teledyne LeCroy Oscilloscope, Half-height Card
- WAVEPRO735ZI-A - Zi-8CH-SYNCH - Oscilloscope Synchronization Kit
- WAVEPRO735ZI-A - WPZi-8-UPG-16GBRAM - 8 GB to 16 GB CPU RAM Option
- WAVEPRO735ZI-A - WPZi-8-UPG-32GBRAM - 8 GB to 32 GB CPU RAM Option
- WAVEPRO735ZI-A - WPZi-SDAIII-CompleteLinQ - Bundle - Multi-Lane SDA LinQ Framework, including Eye, Jitter, Noise, Crosstalk Measurements, with EyeDrII and VirtualProbe
- WAVEPRO735ZI-A - WPZi-SDAIII-CrossLinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye, Jitter, Noise and Crosstalk Measurements
- WAVEPRO735ZI-A - WPZi-SDAIII-LinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye and Jitter Measurements
- WAVEPRO735ZI-A - WPZi-SDAIII-Crosstalk - Single-Lane Serial Data Analysis Framework, Eye, Jitter, Noise and Crosstalk Measurements
- WAVEPRO735ZI-A - WPZi-SDAIII - Single-Lane Serial Data Analysis Framework, Eye and Jitter Measurements
- WAVEPRO735ZI-A - WPZi-VIRTUALPROBE - Advanced De-embedding, Emulation and Virtual Probing Toolkit
- WAVEPRO735ZI-A - WPZi-EYEDRII - Signal Integrity Toolkit - Channel & Fixture De-embedding/Emulation, Tx/Rx Equalization
- WAVEPRO735ZI-A - WPZi-EYEDRII-VP - Bundle - EyeDrII and VirtualProbe Toolkits
- WAVEPRO735ZI-A - WPZi-CBL-DE-EMBED - Cable De-embed Option
- WAVEPRO735ZI-A - QPHY-BroadR-Reach - QualiPHY Enabled BroadR-Reach Software Option
- WAVEPRO735ZI-A - QPHY-DDR2 - QualiPHY Enabled DDR2 Software Option
- WAVEPRO735ZI-A - QPHY-DDR3 - QualiPHY Enabled DDR3 Software Option
- WAVEPRO735ZI-A - QPHY-LPDDR2 - QualiPHY Enabled LPDDR2 Software Option
- WAVEPRO735ZI-A - QPHY-DisplayPort - QualiPHY Enabled DisplayPort Software Option
- WAVEPRO735ZI-A - QPHY-ENET - QualiPHY Enabled Ethernet 10/100/1000BT Software Option
- WAVEPRO735ZI-A - QPHY-HDMI - QualiPHY Enabled HDMI Software Option
- WAVEPRO735ZI-A - QPHY-MIPI-DPHY - QualiPHY Enabled MIPI D-PHY Software Option
- WAVEPRO735ZI-A - QPHY-MOST50 - QualiPHY Enabled MOST50 ePHY Software Option
- WAVEPRO735ZI-A - QPHY-MOST150 - QualiPHY Enabled MOST150 oPHY Software Option
- WAVEPRO735ZI-A - QPHY-PCIe - QualiPHY Enabled PCIe Gen1 Software Option
- WAVEPRO735ZI-A - QPHY-SAS2 - QualiPHY Enabled SAS-2 Software Option
- WAVEPRO735ZI-A - QPHY-SATA-TSG-RSG - QualiPHY Enabled SATA Software Option
- WAVEPRO735ZI-A - QPHY-USB - QualiPHY Enabled USB 2.0 Software Option
- WAVEPRO735ZI-A - QPHY-UWB - QualiPHY Enabled WiMedia UWB Software Option
- WAVEPRO735ZI-A - WPZi-MSPT - 1.25 Gb/s Medium-speed Serial Pattern Trigger Option for 2.5–3.5 GHz Oscilloscopes
- WAVEPRO735ZI-A - WPZi-HSPT - 100 Mb/s to 3.125 Gb/s High-speed Serial Pattern Trigger Option for 4–6 GHz Oscilloscopes
- WAVEPRO735ZI-A - WPZi-8B10B D - 8b/10b Decode Option
- WAVEPRO735ZI-A - WPZi-PCIEbus D - PCI Express Decode Annotation Option
- WAVEPRO735ZI-A - WPZi-USB3bus D - USB 3.0 Decode Annotation Option
- WAVEPRO735ZI-A - WPZi-USB2bus D - USB 2.0 Decode Annotation Option
- WAVEPRO735ZI-A - WPZi-USB2-HSICbus D - USB2-HSIC Decode Option
- WAVEPRO735ZI-A - WPZi-SATAbus D - SATA Decode Annotation Option
- WAVEPRO735ZI-A - WPZi-SASbus D - SAS Decode Annotation Option
- WAVEPRO735ZI-A - WPZi-FCbus D - Fibre Channel Decode Annotation Option
- WAVEPRO735ZI-A - WPZi-Audiobus TD - Audiobus Trigger and Decode Option for I2S, LJ, RJ, and TDM
- WAVEPRO735ZI-A - WPZi-Audiobus TDG - Audiobus Trigger, Decode, and Graph Option for I2S, LJ, RJ, and TDM
- WAVEPRO735ZI-A - WPZi-ENETbus D - ENET Decode Option
- WAVEPRO735ZI-A - WPZi-Manchesterbus D - Manchester Decode Option
- WAVEPRO735ZI-A - WPZi-DPHYbus D - MIPI D-PHY Decode Annotation Option
- WAVEPRO735ZI-A - WPZi-DPHYbus DP - MIPI D-PHY Decode and Physical Layer Test Option
- WAVEPRO735ZI-A - WPZi-MPHYbus D - MIPI M-PHY Decode Annotation Option
- WAVEPRO735ZI-A - WPZi-MPHYbus DP - MIPI M-PHY Decode Annotation and Physical Layer Test Option
- WAVEPRO735ZI-A - WPZi-I2Cbus TD - I2C Bus Trigger and Decode Option
- WAVEPRO735ZI-A - WPZi-SPIbus TD - SPI Bus Trigger and Decode Option
- WAVEPRO735ZI-A - WPZi-LINbus TD - LIN Trigger and Decode Option
- WAVEPRO735ZI-A - WPZi-UART-RS232bus TD - UART and RS-232 Trigger and Decode Option
- WAVEPRO735ZI-A - WPZi-FlexRaybus TD - FlexRay Trigger and Decode Option
- WAVEPRO735ZI-A - WPZi-FlexRaybus TDP - FlexRay Trigger, Decode, and Physical Layer Test Option
- WAVEPRO735ZI-A - WPZi-SENTbus D - SENT Decode Option
- WAVEPRO735ZI-A - WPZi-CANbus TD - CANbus Trigger and Decode Option
- WAVEPRO735ZI-A - WPZi-CANbus TDM - CANbus Trigger, Decode and Measure/Graph Option
- WAVEPRO735ZI-A - WPZi-1553 TD - MIL-STD-1553 Trigger and Decode Option
- WAVEPRO735ZI-A - WPZi-ARINC429bus DSymbolic - ARINC 429 Symbolic Decode Option
- WAVEPRO735ZI-A - WPZi-PROTObus MAG - PROTObus MAG Serial Debug Toolkit
- WAVEPRO735ZI-A - WPZi-ProtoSync - Decode Annotation and Protocol Analyzer Synchronization Software Option
- WAVEPRO735ZI-A - WPZi-ProtoSync-BT - Decode Annotation and Protocol Analyzer + BitTracer Synchronization Software Option
- WAVEPRO735ZI-A - LSIB-1 - High-speed PCIe Gen1 x4 Digitizer Output
- WAVEPRO735ZI-A - MS-500 - 500 MHz, 2 GS/s, 18 Ch, 50 Mpts/Ch Mixed Signal Oscilloscope Option
- WAVEPRO735ZI-A - MS-500-36 - 250 MHz, 1 GS/s, 36 Ch, 25 Mpts/Ch Mixed Signal Oscilloscope Option
- WAVEPRO735ZI-A - MS-250 - 250 MHz, 1 GS/s, 18 Ch, 10 Mpts/Ch Mixed Signal Oscilloscope Option
- WAVEPRO735ZI-A - WPZi-SPECTRUM - Spectrum Analysis Option
- WAVEPRO735ZI-A - WPZi-DFP2 - Digital Filter Software Package
- WAVEPRO735ZI-A - WPZi-SDM - Serial Data Mask Software Package
- WAVEPRO735ZI-A - WPZi-DDM2 - Disk Drive Measurements Software Package
- WAVEPRO735ZI-A - WPZi-DDA - Disk Drive Analyzer Software Package
- WAVEPRO735ZI-A - WPZi-AORM - Advanced Optical Recording Measurement Package
- WAVEPRO735ZI-A - WPZi-ET-PMT - Electrical Telecom Mask Test Software Package
- WAVEPRO735ZI-A - WPZi-EMC - EMC Pulse Parameter Software Package
- WAVEPRO735ZI-A - WPZi-PWR - Power Analysis Option
- WAVEPRO735ZI-A - WPZi-JITKIT - Clock Jitter Analysis with Four Views Software Package
| Model | WAVEPRO735ZI-A |
|---|
Le Teledyne LeCroy WavePro 735Zi-A est un oscilloscope perfectionné conçu pour les applications avancées, offrant une bande passante de 3,5 GHz, 4 canaux et une vitesse d’échantillonnage jusqu’à 40 GS/s. Il dispose d’un écran haute définition WXGA de 12,1 pouces pour une visualisation précise des formes d’onde, d’outils d’analyse avancés avec LabNotebook et d’une connectivité polyvalente via USB, GPIB et LAN. Conçu pour le déclenchement et le décodage de données série à haute vitesse, il garantit des performances robustes dans des environnements de signaux complexes.
Idéal pour les tests de conformité, le débogage et la validation de l’intégrité du signal, le 735Zi-A offre une mémoire améliorée et des performances accrues pour des résultats fiables dans la R&D, la production et la conception électronique avancée.
Testwall peut fournir le Teledyne LeCroy WavePro 735Zi-A d’occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall garantit une instrumentation haute performance avec une fiabilité et une qualité de service inégalées. Veuillez nous contacter directement si vous avez besoin d’un étalonnage ou d’une réparation du Teledyne LeCroy WavePro 735Zi-A.
