Teledyne LeCroy

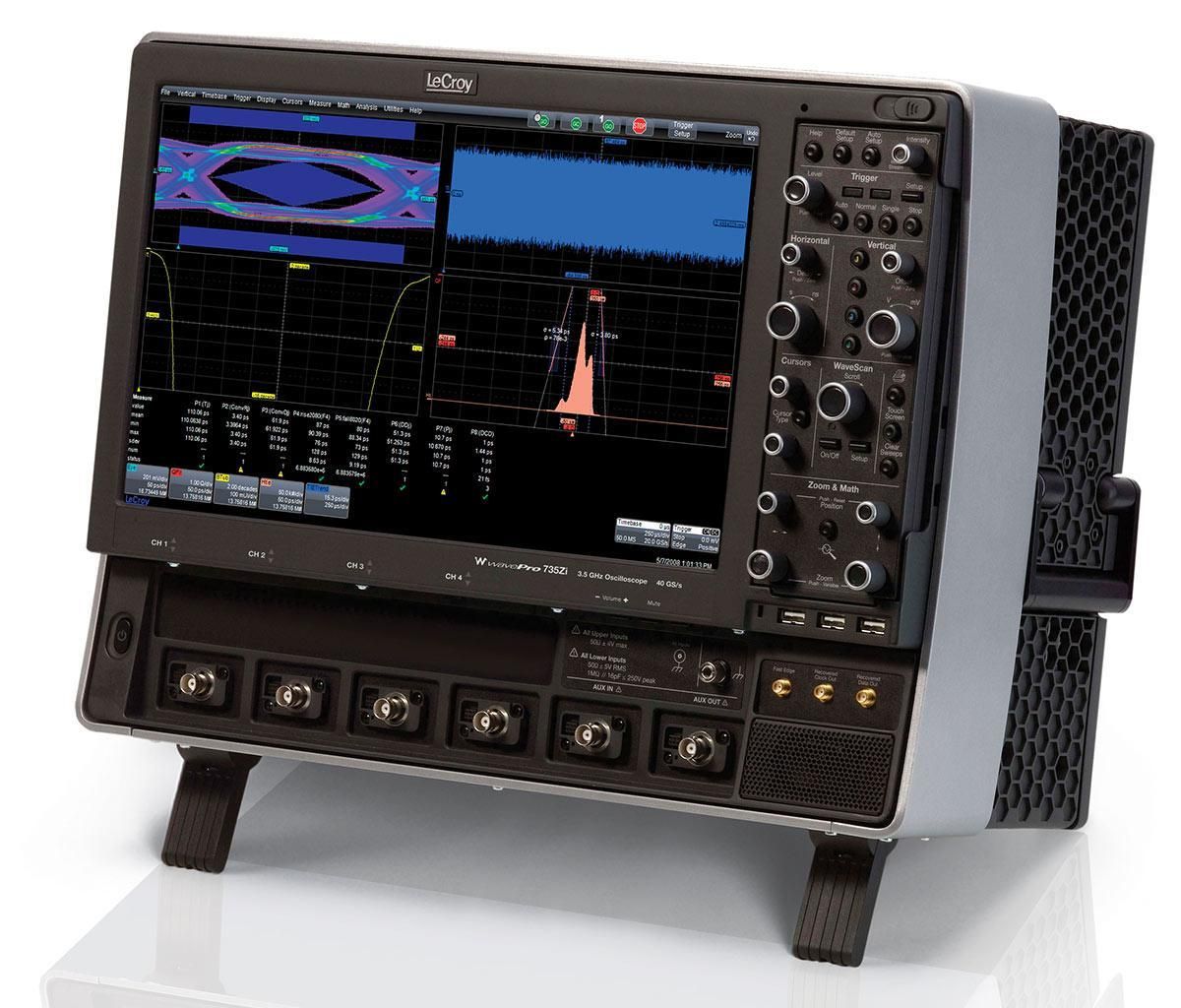

Teledyne LeCroy WAVEPRO735ZI
4 Ch 3.5 GHz Digital Oscilloscope
3,5 GHz Bande passante
4 voies Nombre de voies
20 GS/s Taux d'échantillonnage
128 Mpts/voie Longueur mémoire
8 bits Résolution verticale
| Attribut | Valeur |
|---|---|
| Bande passante | 3,5 GHz |
| Nombre de voies | 4 voies |
| Taux d'échantillonnage | 20 GS/s |
| Longueur mémoire | 128 Mpts/voie |
| Résolution verticale | 8 bits |
| Sensibilité verticale | 1 mV/div à 1 V/div |
| Base de temps | 20 ps/div à 160 s/div |
| Fréquence de mise à jour des formes d'onde | jusqu'à 1 000 000 formes d'onde/s |
| Écran | Écran tactile couleur 12,1 pouces |
| Interface de connectivité | USB, Ethernet, GPIB en option |
Teledyne LeCroy WAVEPRO735ZI Options:
- WAVEPRO735ZI - WPZi-S-32 - 32 Mpts/Ch (64 Mpts/Ch Interleaved) Memory Option for WavePro 7 Zi
- WAVEPRO735ZI - WPZi-M-64 - 64 Mpts/Ch (128 Mpts/Ch Interleaved) Memory Option for WavePro 7 Zi. Includes an additional 4 GB of RAM (8 GB total)
- WAVEPRO735ZI - WPZi-L-128 - 128 Mpts/Ch (256 Mpts/Ch Interleaved) Memory Option for WavePro 7 Zi. Includes an additional 4 GB of RAM (8 GB total)
- WAVEPRO735ZI - WPZi-4-UPG-8GBRAM - Upgrade from 4 GB to 8 GB CPU RAM
- WAVEPRO735ZI - WPZi-500GB-RHD-02 - Upgrade from Standard Size Hard Drive to 500 GB Hard Drive
- WAVEPRO735ZI - WPZi-160GB-RHD-02 - Additional 160 GB Hard Drive
- WAVEPRO735ZI - GPIB-2 - GPIB Option for LeCroy Oscilloscope
- WAVEPRO735ZI - WPZi-SDAII - SDA II Serial Data Analysis Option
- WAVEPRO735ZI - WPZi-EYEDRII - Eye Doctor II Advanced Signal Integrity Tools
- WAVEPRO735ZI - WPZi-MSPT - 1.25 Gb/s Medium-speed Serial Pattern Trigger Option for 2.5–3.5 GHz Oscilloscopes
- WAVEPRO735ZI - WPZi-CBL-DE-EMBED - Cable De-embed
- WAVEPRO735ZI - WPZi-8B10B D - 8b/10b Decode only Option
- WAVEPRO735ZI - QPHY-PCIe - QualiPHY Enabled PCIe Gen1 Compliance and Development Software Option
- WAVEPRO735ZI - QPHY-SATA - QualiPHY Enabled SATA 1.5 Gb/s, 3.0 Gb/s and 6.0 Gb/s Software Option
- WAVEPRO735ZI - QPHY-USB - QualiPHY Enabled USB 2.0 Software Option
- WAVEPRO735ZI - QPHY-HDMI - QualiPHY Enabled HDMI Software Option
- WAVEPRO735ZI - QPHY-DDR2 - QualiPHY Enabled DDR2 Software Option
- WAVEPRO735ZI - QPHY-DDR3 - QualiPHY Enabled DDR3 Software Option
- WAVEPRO735ZI - QPHY-ENET - QualiPHY Enabled Ethernet Software Option
- WAVEPRO735ZI - QPHY-UWB - QualiPHY Enabled WiMedia UWB Software Option
- WAVEPRO735ZI - WPZi-PCIEbus D - PCI Express Decode Annotation Option
- WAVEPRO735ZI - WPZi-Audiobus TD - Audiobus Trigger and Decode Option for I2S, LJ, RJ, and TDM
- WAVEPRO735ZI - WPZi-Audiobus TDG - Audiobus Trigger, Decode, and Graph Option for I2S, LJ, RJ, and TDM
- WAVEPRO735ZI - WPZi-I2Cbus TD - I2C Bus Trigger and Decode Option
- WAVEPRO735ZI - WPZi-SPIbus TD - SPI Bus Trigger and Decode Option
- WAVEPRO735ZI - WPZi-LINbus TD - LIN Trigger and Decode Option
- WAVEPRO735ZI - WPZi-UART-RS232bus TD - UART and RS-232 Trigger and Decode Option
- WAVEPRO735ZI - WPZi-FlexRaybus TD - FlexRay Trigger and Decode Option
- WAVEPRO735ZI - WPZi-FlexRaybus TDP - FlexRay Trigger, Decode, and Physical Layer Test Option
- WAVEPRO735ZI - WPZi-CANbus TDM - CANbus TDM Trigger, Decode and Measure/Graph Option
- WAVEPRO735ZI - WPZi-1553 TD - MIL-STD-1553 Trigger and Decode Option
- WAVEPRO735ZI - LSIB-1 - High-speed PCIe Gen1 x4 Digitizer Output
- WAVEPRO735ZI - MS-500 - 500 MHz, 2 GS/s, 18 Ch, 50 Mpts/Ch Mixed Signal Oscilloscope Option
- WAVEPRO735ZI - MS-500-36 - 250 MHz, 1 GS/s, 36 Ch, 25 Mpts/Ch Mixed Signal Oscilloscope Option
- WAVEPRO735ZI - MS-250 - 250 MHz, 1 GS/s, 18 Ch, 10 Mpts/Ch Mixed Signal Oscilloscope Option
- WAVEPRO735ZI - WPZi-XDEV - Advanced Customization Software Package
- WAVEPRO735ZI - WPZi-SPECTRUM - Spectrum Analyzer and Advanced FFT Option
- WAVEPRO735ZI - WPZi-EMC - EMC Pulse Parameter Software Package
- WAVEPRO735ZI - WPZi-SDM - Serial Data Mask Software Package
- WAVEPRO735ZI - WPZi-AORM - Advanced Optical Recording Measurement Package
- WAVEPRO735ZI - WPZi-JTA2 - Jitter Timing and Analysis Software Package
- WAVEPRO735ZI - WPZi-PMA2 - Power Measure Analysis Software Package
- WAVEPRO735ZI - WPZi-DFP2 - Digital Filter Software Package
- WAVEPRO735ZI - WPZi-DDM2 - Disk Drive Measurements Software Package
- WAVEPRO735ZI - WPZi-ET-PMT - Electrical Telecom Mask Test Software Package
| Model | WAVEPRO735ZI |
|---|
Le Teledyne LeCroy WavePro 735Zi offre une bande passante analogique de 3,5 GHz, jusqu’à 40 GS/s de taux d’échantillonnage et quatre canaux d’entrée, assurant des performances exceptionnelles pour l’analyse de signaux numériques et RF à grande vitesse.
Avec une mémoire allant jusqu’à 64 Mpts par canal, des fonctions avancées de déclenchement et décodage, et une interface tactile de 10,4″ réactive propulsée par l’architecture X-Stream II, il garantit une capture et une analyse de données rapides et intuitives.
Testwall peut fournir le Teledyne LeCroy WavePro 735Zi d’occasion, entièrement testé. Avec un support expert et une livraison mondiale, Testwall assure des instruments de haute performance avec fiabilité et qualité de service inégalées. Merci de nous contacter directement si vous avez besoin de calibration ou de réparation du Teledyne LeCroy WavePro 735Zi.
