TENNEY
TENNEY TUJR
Environmental Test Chamber, -75c to +200c, 1.12 Cu. Ft.
TENNEY TUJR Options:
- TUJR - - GN2 Purge System
- TUJR - - Dry Air Purge System
- TUJR - - LinkTenn 32 Controller Software
- TUJR - - Tempguard IV Over-temperature Protection
- TUJR - - Viewing windows up to 6" x 8" and thermally insulated
- TUJR - - Interior lighting
- TUJR - - Shelving, adjustable and removable
- TUJR - - Automatic CO2 or LN2 cooling boost system
- TUJR - - Recording instruments
- TUJR - - Alternative power supply options for many global current schemes
- TUJR - - Cart system to allow chamber to be moved within a facility
- TUJR - - Stacking option for bench model
- TUJR - - 50 Hz - CE mark available
- TUJR - - Intrinsically safe interior
- TUJR - - NIST Calibration
- TUJR - - ISO 17025 accredited calibration services
- TUJR - - Optional Temperature Range -75°C to 200°C
| Model | TUJR |
|---|

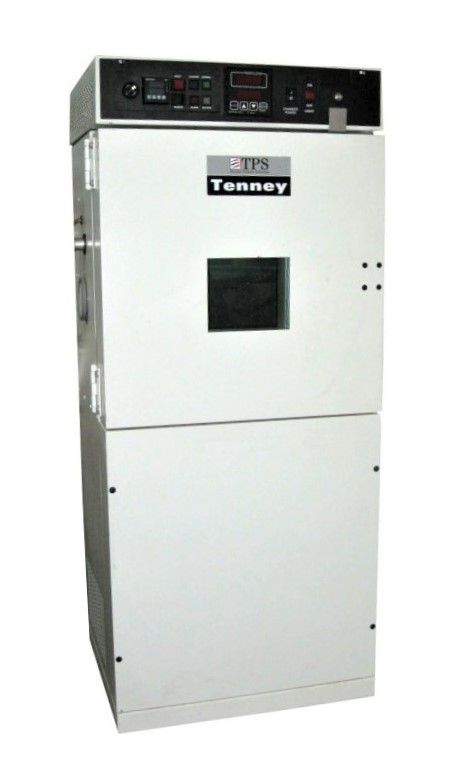

The Tenney TUJR is a portable, self-contained, temperature-controlled test chamber. Compact exterior dimensions, in combination with ample interior workspace, make this chamber ideal for laboratory testing.
The Tenney TUJR is well-suited for use in electronic, military, and pharmaceutical quality assurance and reliability testing, as well as research testing and production processes. As specified, the chamber is mechanically refrigerated by means of single or cascade systems of time proven design.
Specifications of the Tenney TUJR include:
- Temperature Range: -75c to +200c
- Interior Dimensions: 16"W x 11" D x 12"H
- Exterior Dimensions: 25 5/8"W x 21 7/8" D x 60"H
- Refrigeration: (2) 1/2 hp
- Heater Capacity: 500W
- Amps @ 120V/1 phase/60Hz: 500W
- Weight: 336 lbs.
- Change Rates in Minutes:
- Ambient to 200 °C 60 minutes
- Ambient to 185 °C 50 minutes
- Ambient to 160 °C 40 minutes
- Ambient to 140 °C 30 minutes
- Ambient to 105 °C 20 minutes
- Ambient to 70 °C 10 minutes
- Ambient to 25 °C 0 minutes
- Ambient to -15 °C 10 minutes
- Ambient to -40 °C 20 minutes
- Ambient to -54 °C 30 minutes
- Ambient to -65 °C 40 minutes
- Ambient to -73 °C 55 minutes
- Ambient to -75 °C Ultimate
