Test Equity 1207C
| Attribut | Valeur |
|---|---|
| Plage de température | -73°C à +177°C (-100°F à +350°F) |
| Stabilité en température | ±0,1°C |
| Uniformité spatiale | ±0,3°C |
| Volume de la chambre | 1,2 pieds cubes (34 litres) |
| Dimensions intérieures (L x P x H) | 30,5 cm x 30,5 cm x 35,6 cm |
| Temps de refroidissement | Ambiant à -73°C en environ 30 minutes |
| Temps de chauffage | Ambiant à +177°C en environ 20 minutes |
| Alimentation électrique | 208-230 V, 60 Hz, monophasé |
| Consommation électrique | 1800 W |
| Contrôleur de température | Contrôleur numérique PID avec affichage LCD |
Test Equity 1207C Options:
- 1207C - Optional GN2 Purge - Extends humidity range to 5% to 95% (dry bulb range of +10°C to +85°C)
- 1207C - Chart Recorder (Optional) - Honeywell DR4300 Series, two pen, 10" circular chart, mounts in lower front door
- 1207C - Water Recirculation System (optional) - Provides a reliable supply of filtered water for the humidity system; for installations where a water line and drain are not available
| Model | 1207C |
|---|

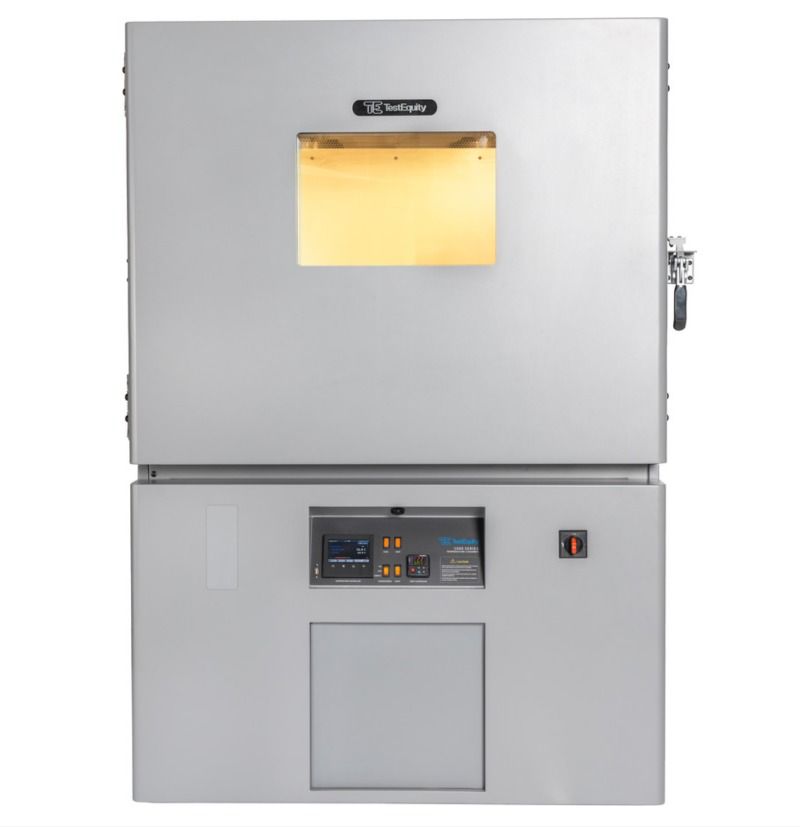

TEST EQUITY 1207C Temperature and Humidity Chamber
The Test Equity 1207C Temperature/Humidity Chamber is based on the field proven technology of the Model 1007C. Now users can simulate humidity conditions from 10% to 95% RH with the same ease of use and reliability that TestEquity chambers are known for. Up to 256 steps can be programmed into as many as 40 namable profiles. The context sensitive information key and guided steps make profile programming fast and easy. A four-line backlit LCD displays relative humidity, programming, setup, operating and help information. A large LED readout indicates the actual chamber temperature with 0.1 ° resolution.
Internal logic provides refrigeration compressor control for responsive and reliable performance. The Test Equity 1207C includes seven event outputs to control remote devices. RS-232/485 communications is also included. GPIB interface and analog retransmit are available as options. A fast responding capacitive-type sensor eliminates the need for unreliable wet-wicks. Heated multi-pane window eliminates fog and condensation without a manual wiper. A heavy-duty stainless steel wire shelf ensures proper airflow around your test sample for uniform temperature distribution.
Specifications of the TEST EQUITY 1207C Temperature and Humidity Chamber includes:
- Temperature -75 °C to +175 °C
- Humidity 10% to 95% RH
- 7 Cu Ft Workspace, 24 W x 21 H x 24 D (198 liters)
- Programmable Temperature Controller
- RS-232/485 Computer Interface
- High/Low Limit Control and Alarm
- Non-CFC Cascade Refrigeration
See Datasheet for Full Specifications
