Test Equity 3016C
| Attribut | Valeur |
|---|---|
| Plage de température | -73°C à +177°C (-100°F à +350°F) |
| Uniformité de température | ±0,5°C |
| Stabilité de température | ±0,1°C |
| Volume de travail intérieur | 0,85 pieds cubes (24 litres) |
| Dimensions intérieures (L x P x H) | 279 mm x 279 mm x 305 mm |
| Dimensions extérieures (L x P x H) | 584 mm x 775 mm x 864 mm |
| Alimentation électrique | 208-230 V, 60 Hz, monophasé |
| Consommation électrique | 1800 W |
| Fluide frigorigène | R-404A |
| Contrôleur de température | Contrôleur numérique PID avec affichage digital |
Test Equity 3016C Options:
- 3016C - Water Cooled Condenser - Water Cooled Condenser (optional, in place of standard air cooled)
- 3016C - LN2 Boost - Liquid Nitrogen Boost cooling with compressors (24°C/minute from +85°C to -40°C)
- 3016C - Watlow F4T - Watlow F4T Touch Screen Controller with RS-232, Ethernet interface, and 4.3" color graphic touch screen
- 3016C - Watlow F4 - Watlow F4 Controller with RS-232 interface, LED readout of temperature, and LCD display of other parameters
- 3016C - DR4300 - Honeywell DR4300 Series Chart Recorder, one pen, 10" circular chart, mounts in lower front door
| Model | 3016C |
|---|

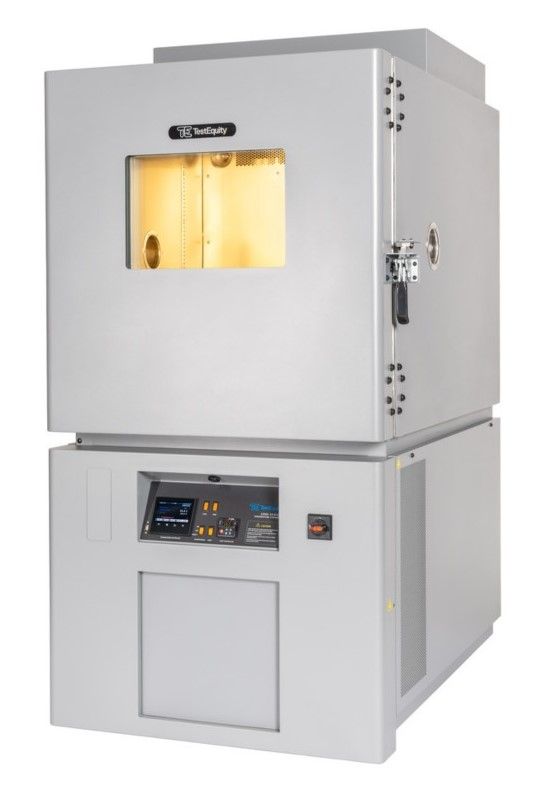

TEST EQUITY 3016C FastRate Temperature Chamber
The TestEquity 3016C FastRate Temperature Chamber is a highly efficient and compact temperature testing device designed for rapid temperature transitions. Featuring dual 6 HP scroll compressors, boost heaters, and heavy-duty blower motors, it delivers ramp rates exceeding 10 °C/minute without the need for liquid nitrogen (LN2). This chamber is ideal for reliability screening with temperature cycling specs that demand 5 °C/minute to 10 °C/minute ramp rates.
The TestEquity 3016C significantly reduces test times, making it perfect for applications requiring fast throughput. The chamber offers independent temperature protection with high and low limits, along with a viewing window, adjustable shelf, and other useful features to ensure uniform temperature distribution. Its innovative design minimizes condensation and ensures long-lasting performance while using environmentally friendly refrigerants. Overall, the 3016C FastRate Temperature Chamber is a reliable and efficient solution for high-speed temperature testing.
Specifications for the TEST EQUITY 3016C FastRate Temperature Chamber Include:
| Temp Range | -73 C - 175 C |
| Workspace | 16 Cu Ft (30 W x 30 H x 30 D) |
| Control Tolerance | ± 0.5 C |
| Uniformity | ± 1.0 C |
