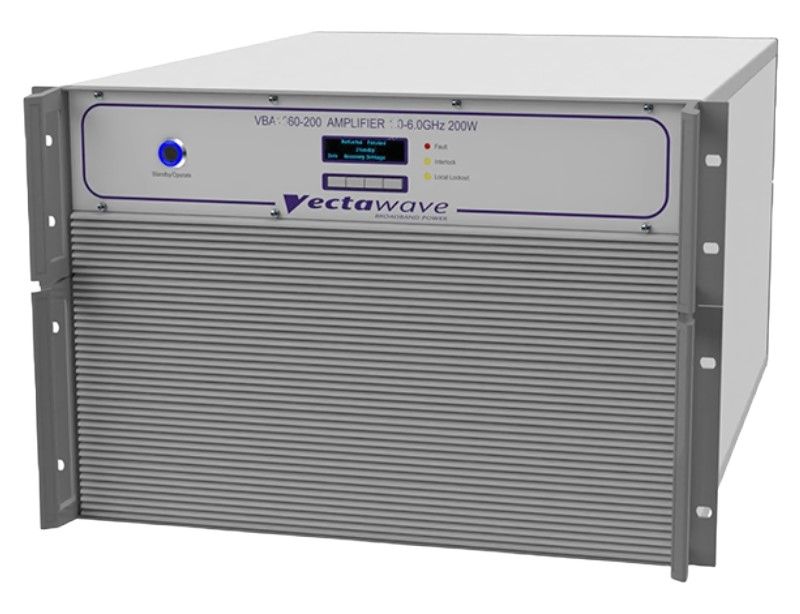

Vectawave VBA0660-200
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 6 MHz – 6 GHz |
| Puissance de sortie | 200 W |
| Gain typique | 50 dB |
| Impédance d'entrée/sortie | 50 Ohms |
| Puissance d'entrée maximale | 0 dBm |
| Tension d'alimentation | 100 – 240 V CA, 50/60 Hz |
| Connecteur d'entrée | SMA femelle |
| Connecteur de sortie | N femelle |
| Température de fonctionnement | 0 °C à +45 °C |
| Format | Rack 19 pouces, 2U |
| Model | VBA0660-200 |
|---|
VECTAWAVE VBA0660-200 High Power Amplifier
The Vectawave VBA0660-200 High Power Amplifier spaning frequency of 600 to 6000 MHz, is tailored for EMC applications. The amplifier is based on high performance extra wideband GaN output stages and utilises Vectawave proprietary Quadrature Hybrid combining techniques, minimising loss for a more efficient solution. This amplifier utilizes robust push-pull MOSFET technology to ensure exceptional even order harmonic suppression. Operating in class A, it offers minimal distortion and a remarkable tolerance for 100% mismatch, rendering fold-back protection unnecessary. These attributes make the Vectawave VBA0660-200 an excellent choice for the most demanding transducer needs, emphasizing its robustness and adaptability for general linear power requirements.
Specifications for the VECTAWAVE VBA0660-200 High Power Amplifier Include:
| Frequency Range | 600 to 6000 MHz |
| Rated Output Power | 200 W |
| Output Power Harmonics | Better than -20dBc @ Rated Linear Power |
| Output Impedence | 50 Ohms |
