Vectawave VBA0660-25
High Power Amplifier, 0.6 - 6GHz, 25W
6 MHz – 6 GHz Plage de fréquences
25 Watts Puissance de sortie
50 dB Gain typique
±2,5 dB Gain plat
0 dBm Puissance d'entrée maximale
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 6 MHz – 6 GHz |
| Puissance de sortie | 25 Watts |
| Gain typique | 50 dB |
| Gain plat | ±2,5 dB |
| Puissance d'entrée maximale | 0 dBm |
| Impédance d'entrée/sortie | 50 Ohms |
| Connecteurs | SMA femelle |
| Alimentation électrique | 100–240 V CA, 50/60 Hz |
| Température de fonctionnement | 0 °C à +40 °C |
| Format | Boîtier de bureau (desktop) |
| Model | VBA0660-25 |
|---|

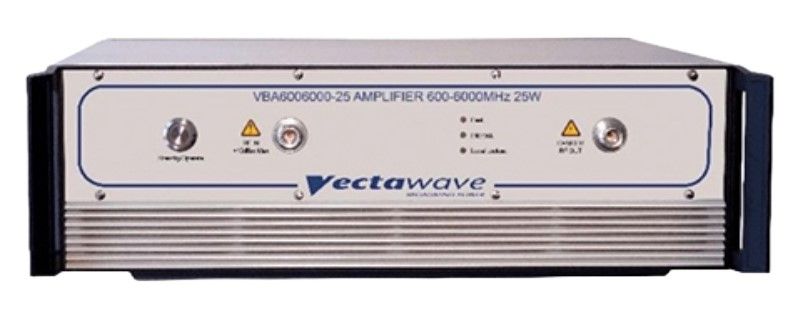

VECTAWAVE VBA0660-25 High Power Amplifier
The Vectawave VBA0660-25 High Power Amplifier spaning frequency of 600 to 6000 MHz, is tailored for EMC applications. This amplifier utilizes robust push-pull MOSFET technology to ensure exceptional even order harmonic suppression. Operating in class A, it offers minimal distortion and a remarkable tolerance for 100% mismatch, rendering fold-back protection unnecessary. These attributes make the Vectawave VBA0660-25 an excellent choice for the most demanding transducer needs, emphasizing its robustness and adaptability for general linear power requirements.
Specifications for the VECTAWAVE VBA0660-25 High Power Amplifier Include:
| Frequency Range | 600 to 6000 MHz |
| Rated Output Power | 25 W |
| Output Power Harmonics | Better then -20dBc (1-6GHz) / Bettr than -12bBc (0.6-1 GHz) @ Rated Linear Power |
| Output Impedence | 50 Ohms |
