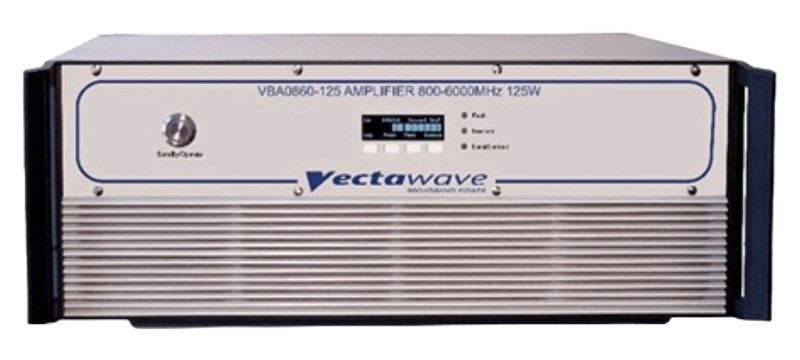

Vectawave VBA0860-125
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 800 MHz – 6000 MHz |
| Puissance de sortie | 125 W |
| Gain typique | 50 dB |
| Tension d'alimentation | 220 – 240 V CA |
| Impédance d'entrée/sortie | 50 Ohms |
| Connecteur d'entrée | SMA femelle |
| Connecteur de sortie | N femelle |
| Coefficient d'ondes stationnaires (VSWR) | 2,0:1 maximum |
| Température de fonctionnement | 0 °C à +40 °C |
| Format | Rack 19 pouces, 2U |
| Model | VBA0860-125 |
|---|
VECTAWAVE VBA0860-125 High Power Amplifier
The Vectawave VBA0860-125 High Power Amplifier spaning frequency of 800 to 6000 MHz, is tailored for EMC applications. The amplifier is based on high performance extra wideband GaN output stages and utilises Vectawave proprietary Quadrature Hybrid combining techniques, minimising loss for a more efficient solution. This amplifier utilizes robust push-pull MOSFET technology to ensure exceptional even order harmonic suppression.
The Vectawave VBA0860-125 Operates in class A, it offers minimal distortion and a remarkable tolerance for 100% mismatch, rendering fold-back protection unnecessary. The amplifier can be controlled remotely via the Ethernet, USB and GPIB interfaces. The digital interface system manages enabling and disabling the amplifier, monitoring power supply health, communicating with the control computer and implementing electrical interlocks. These attributes make the Vectawave VBA0860-125 an excellent choice for the most demanding transducer needs, emphasizing its robustness and adaptability for general linear power requirements.
Specifications for the VECTAWAVE VBA0860-125 High Power Amplifier Include:
| Frequency Range | 800 to 6000 MHz |
| Rated Output Power | 125 W |
| Output Power Harmonics | Better than -20dBc (1-6GHz) / Better than -15dBc (0.8-6GHz) @ Rated Linear Power |
| Output Impedence | 50 Ohms |
