Vectawave VBA1000-450S
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 80 MHz – 450 MHz |
| Puissance de sortie maximale | 1000 W |
| Gain typique | 60 dB |
| Impédance d'entrée/sortie | 50 Ohms |
| Niveau d'entrée maximal | 0 dBm |
| Connecteur d'entrée | N femelle |
| Connecteur de sortie | N femelle |
| Alimentation électrique | 220 – 240 V CA, 50/60 Hz |
| Refroidissement | Refroidissement par air forcé |
| Format | Rack 19 pouces |
Vectawave VBA1000-450S Options:
- VBA1000-450S - RACK-FRONT - Rack mount with Front panel connectors
- VBA1000-450S - RACK-REAR - Rack mount with Rear panel connectors
- VBA1000-450S - BENCH-FRONT - Bench mount with Front panel connectors
| Model | VBA1000-450S |
|---|

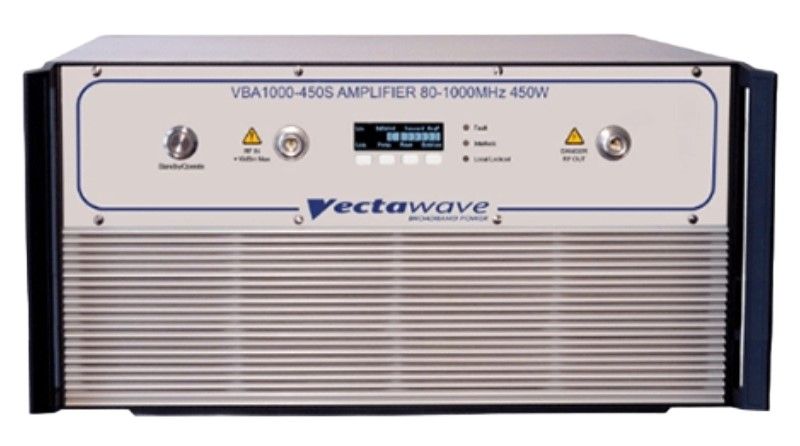

VECTAWAVE VBA1000-450S High Power Amplifier
The Vectawave VBA1000-450S is a high-power amplifier operating in the 80-1000MHz range, primarily designed for EMC applications. It delivers approximately 300W P1dB at crucial VHF frequencies and is housed in a compact 4U case. This amplifier is ideal for applications requiring an 18V/m field, and it's equipped with features to enhance power delivery into high VSWR loads. Control options include front panel and remote control through Ethernet, USB, and GPIB interfaces. Its digital interface system manages functions like enabling/disabling, power level monitoring, power supply health checks, and communication with the control computer, while the keypad and display interface allows for state monitoring, power levels, interlock status, and configuration adjustments. The VBA1000-450S utilizes rugged push-pull Silicon LDMOS technology, operates in Class A for optimal mismatch drive, and meets general linear power requirements.
Specifications for the VECTAWAVE VBA1000-450S High Power Amplifier Include:
| Frequency Range | 80 to 1000 MHz |
| Rated Output Power | 450 W (80 MHz to 700 MHz) |
| Output Power Harmonics | Better than -20dBc @ 250 W |
| Output Impedence | 50 Ohms |
