Vectawave VBA1000-600C
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 80 MHz – 1000 MHz |
| Puissance de sortie maximale | 600 W |
| Gain typique | ≥ 50 dB |
| Impédance d'entrée/sortie | 50 Ω |
| Puissance d'entrée maximale | 0 dBm (typique) |
| Alimentation électrique | 220–240 V CA, 50/60 Hz |
| Connecteurs RF | N femelle (entrée et sortie) |
| Refroidissement | Refroidissement par air forcé |
| Format | Rack 19 pouces |
| Conformité | CE, RoHS |
Vectawave VBA1000-600C Options:
- VBA1000-600C - 3PD - 3 Phase Delta (5 pin plug)
- VBA1000-600C - 3PS - 3 Phase Star (5 pin plug)
| Model | VBA1000-600C |
|---|

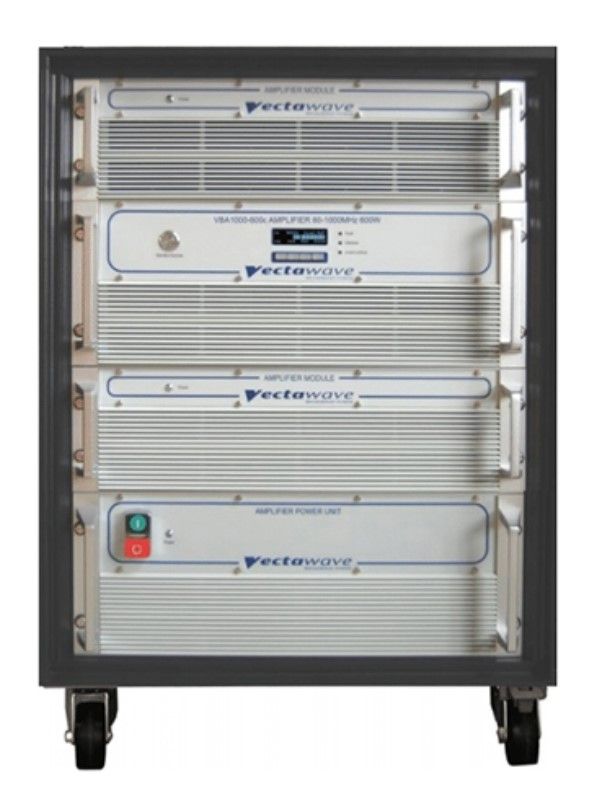

VECTAWAVE VBA1000-600C High Power Amplifier
The Vectawave VBA1000-600C is a high-power amplifier designed for EMC applications, operating within the 80-1000MHz range. It utilizes unique GaAs technology, offering high linearity, ruggedness, and efficiency. This class A amplifier excels in EMC applications due to its low distortion and tolerance of 100% mismatch, eliminating the need for fold-back protection. It is ideal for demanding antenna and test chamber requirements.
The Vectawave VBA1000-600C amplifier can be controlled via front panel or remote interfaces (Ethernet, USB, and GPIB). Its digital interface system manages power control, health monitoring, and communication with the control computer, while the keypad and display interface enable monitoring and configuration. With proven GaAs design and a focus on class A operation, it is a reliable choice for applications such as automotive testing and other linear power needs.
Specifications for the VECTAWAVE VBA1000-600C High Power Amplifier Include:
| Frequency Range | 80 to 1000 MHz |
| Rated Output Power | 600 W (80 MHz to 700 MHz) |
| Output Power Harmonics | Better than -20dBc @ 500 W |
| Output Impedence | 50 Ohms |
