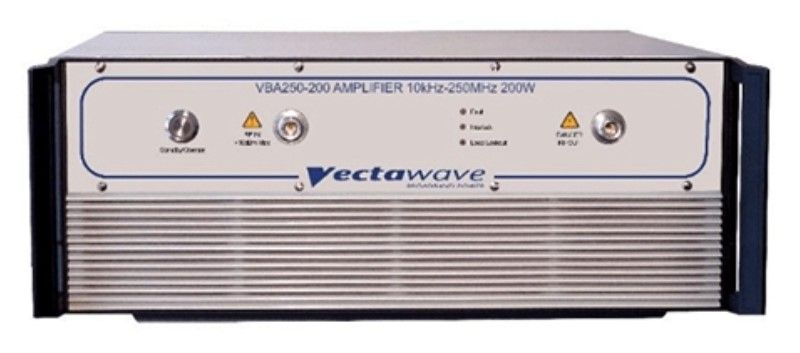

Vectawave VBA250-200
High Power Amplifier, 10kHz - 250MHz, 200W
250 MHz – 200 W Plage de fréquences
200 W Puissance de sortie
≥ 50 dB Gain
50 Ohms Impédance d'entrée/sortie
0 dBm (typique) Puissance d'entrée maximale
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 250 MHz – 200 W |
| Puissance de sortie | 200 W |
| Gain | ≥ 50 dB |
| Impédance d'entrée/sortie | 50 Ohms |
| Puissance d'entrée maximale | 0 dBm (typique) |
| Alimentation électrique | 220–240 V CA, 50/60 Hz |
| Connecteurs RF | Type N femelle |
| Température de fonctionnement | 0 °C à +40 °C |
| Refroidissement | Refroidissement par air forcé |
| Format mécanique | 19 pouces, montage en rack |
Vectawave VBA250-200 Options:
- VBA250-200 - OPT-USB/GPIB - USB/GPIB Interface (Optional)
- VBA250-200 - OPT-RACK-FRONT - Rack mount with Front panel connectors
- VBA250-200 - OPT-RACK-REAR - Rack mount with Rear panel connectors
- VBA250-200 - OPT-BENCH - Bench mount with Front panel connectors
| Model | VBA250-200 |
|---|
VECTAWAVE VBA250-200 High Power Amplifier
The Vectawave VBA250-200 High Power Amplifier spaning frequency of 10kHz to 250MHz, is tailored for EMC applications. This amplifier utilizes robust push-pull MOSFET technology to ensure exceptional even order harmonic suppression. Operating in class A, it offers minimal distortion and a remarkable tolerance for 100% mismatch, rendering fold-back protection unnecessary. These attributes make the Vectawave VBA250-200 an excellent choice for the most demanding transducer needs, emphasizing its robustness and adaptability for general linear power requirements.
Specifications for the VECTAWAVE VBA250-200 High Power Amplifier Include:
| Frequency Range | 10 kHz to 250 MHz |
| Rated Output Power | 250 W Min (10kHz - 80MHz) / 200 W Min (80 - 250MHz) |
| Output Power Harmonics | Better than -20dBc @ 150W |
| Output Impedence | 50 Ohms |
