Vectawave

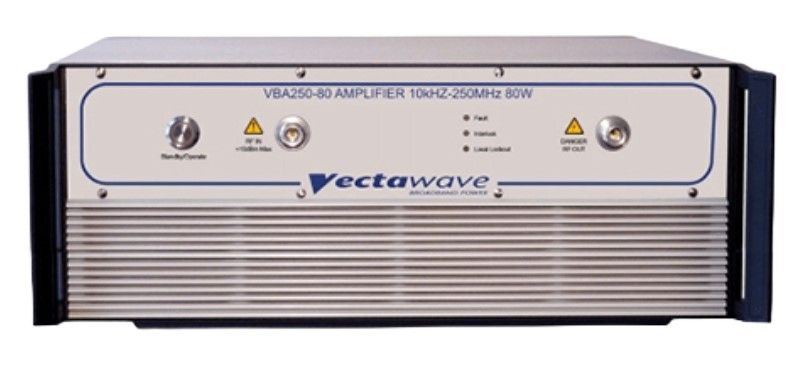

Vectawave VBA250-80
High Power Amplifier, 10kHz - 250MHz, 80W
80 MHz – 250 MHz Plage de fréquences
250 W Puissance de sortie maximale
50 dB Gain typique
50 Ω Impédance d'entrée/sortie
0 dBm Puissance d'entrée maximale
| Attribut | Valeur |
|---|---|
| Plage de fréquences | 80 MHz – 250 MHz |
| Puissance de sortie maximale | 250 W |
| Gain typique | 50 dB |
| Impédance d'entrée/sortie | 50 Ω |
| Puissance d'entrée maximale | 0 dBm |
| Tension d'alimentation | 220 – 240 V CA, 50/60 Hz |
| Connecteur d'entrée | SMA femelle |
| Connecteur de sortie | N femelle |
| Distorsion harmonique | -20 dBc typique |
| Dimensions (L x l x H) | 482 mm x 450 mm x 133 mm (3U) |
Vectawave VBA250-80 Options:
- VBA250-80 - Optional - USB/GPIB Interface
- VBA250-80 - Case Option 1 - Rack mount with Front panel connectors
- VBA250-80 - Case Option 2 - Rack mount with Rear panel connectors
- VBA250-80 - Case Option 3 - Bench mount with Front panel connectors
| Model | VBA250-80 |
|---|
VECTAWAVE VBA250-80 High Power Amplifier
The Vectawave VBA250-80 High Power Amplifier spaning frequency of 10kHz to 250MHz, is tailored for EMC applications. This amplifier utilizes robust push-pull MOSFET technology to ensure exceptional even order harmonic suppression. Operating in class A, it offers minimal distortion and a remarkable tolerance for 100% mismatch, rendering fold-back protection unnecessary. These attributes make the Vectawave VBA250-80 an excellent choice for the most demanding transducer needs, emphasizing its robustness and adaptability for general linear power requirements.
Specifications for the VECTAWAVE VBA250-80 High Power Amplifier Include:
| Frequency Range | 10 kHz to 250 MHz |
| Rated Output Power | 80 W Min |
| Output Power Harmonics | Better than -20dBc @ 60W |
| Output Impedence | 50 Ohms |
