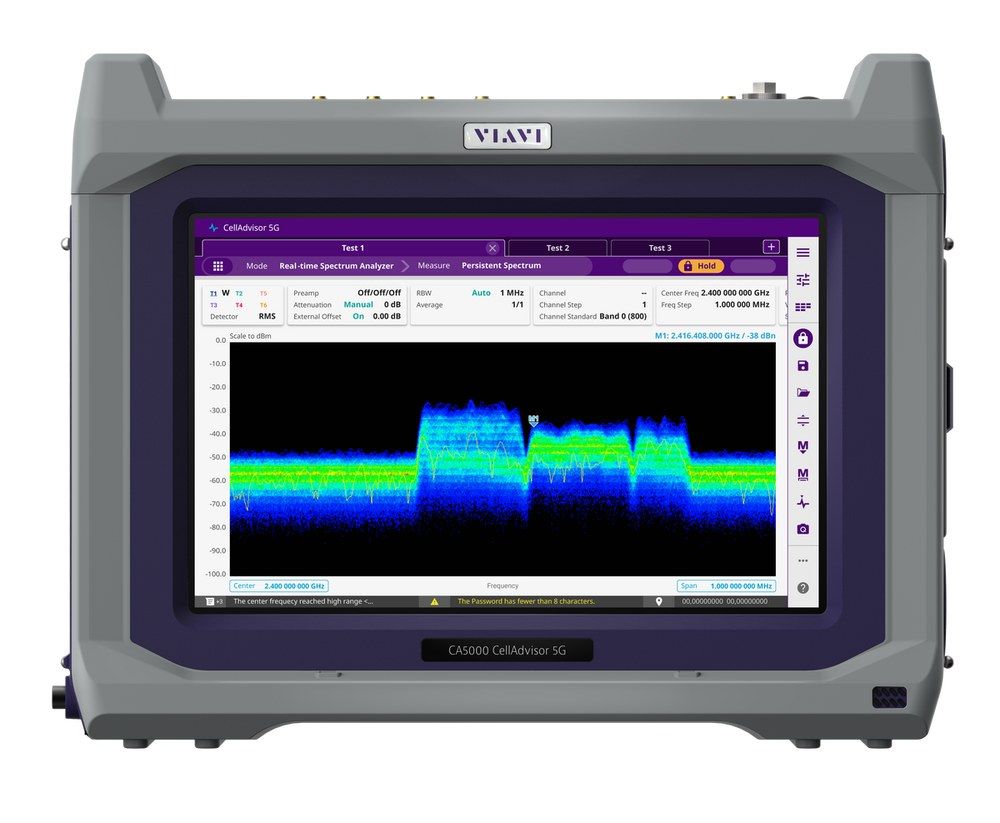

Viavi CA5000
| Attribute | Value |
|---|---|
| Spectrum Analyser Range | 9 kHz to 6 GHz (F001); + 24-40 GHz (F002); 9 kHz-18.5 GHz (F018); to 30/44 GHz (F030/F044) |
| DANL | -142 dBm (10 MHz-3 GHz, preamp off); -163 dBm preamps on |
| Analysis Bandwidth | Up to 100 MHz; real-time 50 MHz (S010) or 100 MHz (S011) |
| Cable & Antenna Analyser | Up to 6 GHz (requires CAA06M module) |
| RF Power Meter | Internal sensor, -100 to +100 dBm display range |
| RF Connector | Type-N (f) on F001/F018; 2.92 mm (m) on F002 |
| Display | 10 in capacitive touchscreen, 1280 x 800 |
| Battery | F001: > 2 h (one battery), > 4 h 10 min (two batteries) |
| Dimensions | 309 x 241 x 113 mm (with top bumper) |
| Weight | < 5.9 kg (F001) to < 6.2 kg (F002) with one battery |
Viavi CA5000 Options:
- CA5000-F001 - 5G NR FR1, 9 kHz to 6 GHz
- CA5000-F002 - FR1 to 6 GHz and FR2 24 to 40 GHz
- CA5000-F018 - 9 kHz to 18.5 GHz
- CA5000-F030 - 9 kHz to 30 GHz, two RF ports
- CA5000-F044 - 9 kHz to 44 GHz, two RF ports
- CA5000-F001-O - FR1 to 6 GHz with optic hardware
- CA5000-B100 - 100 MHz analysis bandwidth
- CA5000-S002 - GPS with antenna
- CA5000-S010 - 50 MHz real-time spectrum analyser
- CA5000-S011 - 100 MHz real-time spectrum analyser (requires B100)
- CA5000-S013 - Interference analyser
- CA5000-S016 - Channel scanner
- CA5000-S032 - LTE/LTE-A FDD signal analyser
- CA5000-S041 - 5G NR signal analyser (requires B100)
- CA5000-S050 - RFoCPRI line rates 1-7 interference analyser (requires optic hardware)
The Viavi CellAdvisor 5G (CA5000) is a field-portable base station analyser for deploying and validating 5G radio access networks. It provides real-time spectrum and interference analysis for 5G FR1 and FR2, a 5G carrier scanner, beam analyser and route mapping, plus fibre, coax and CPRI testing. The base unit includes a spectrum analyser and RF power meter and requires one internal hardware (frequency) option.
Hardware options set the range: F001 (9 kHz to 6 GHz), F002 (adds 24 to 40 GHz), F018 (9 kHz to 18.5 GHz), F030/F044 (to 30/44 GHz, two ports), with optic-hardware variants; cable and antenna analysis to 6 GHz requires the CAA06M module. Applications include 5G/O-RAN commissioning, massive MIMO beam validation, PIM detection and interference hunting over CPRI.
Testwall can supply the used Viavi CA5000, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Viavi CA5000.
