Voltech

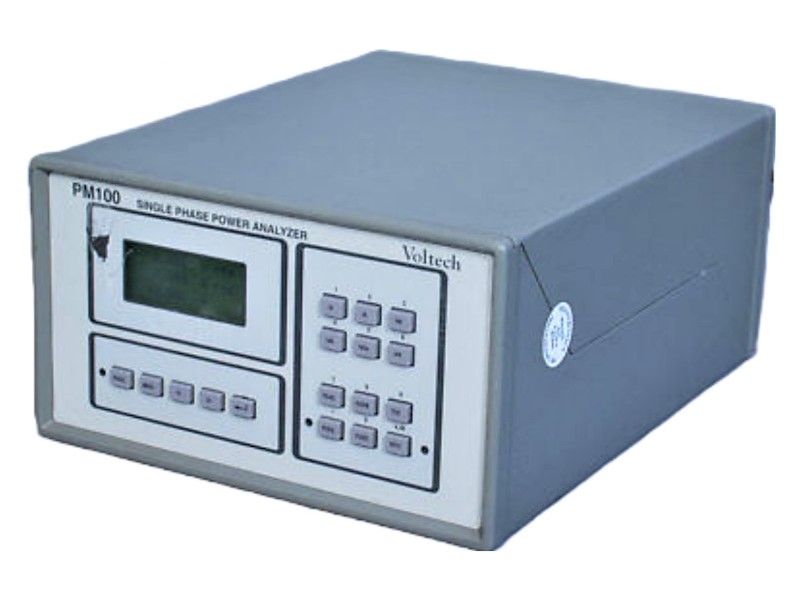

Voltech PM100
Power Analyzer
Jusqu'à 3 kW Plage de puissance
±0,1 % de la lecture Précision de mesure
0 à 600 V RMS Plage de tension
0 à 20 A RMS Plage de courant
DC, 10 Hz à 1 MHz Plage de fréquence
| Attribut | Valeur |
|---|---|
| Plage de puissance | Jusqu'à 3 kW |
| Précision de mesure | ±0,1 % de la lecture |
| Plage de tension | 0 à 600 V RMS |
| Plage de courant | 0 à 20 A RMS |
| Plage de fréquence | DC, 10 Hz à 1 MHz |
| Paramètres mesurés | Puissance active, réactive et apparente, facteur de puissance, tension, courant, fréquence, harmoniques |
| Interface de communication | RS232, GPIB (IEEE-488) |
| Affichage | Écran LCD rétroéclairé |
| Alimentation | 85 à 265 V CA, 50/60 Hz |
| Conformité et normes | Conforme aux normes IEC 61000, CE |
Voltech PM100 Options:
- PM100 - IEEE488 - IEEE488 interface for high-speed control and data capture
- PM100 - RS232 - RS232 I/O and parallel printer interface
- PM100 - CHART - Chart recorder and alarm interface (twelve 0-5V DC outputs, two free relay contacts)
- PM100 - VPASLite - VPASLite Windows software for control and data handling
| Model | PM100 |
|---|
Using the proven technology of the world leading Voltech range, these analyzers allow precision bench-top measurements at the price of a portable meter. By connecting directly to the analyzer's 20A-rated internal shunts, the errors of gain and phase found in external cur transformers and transducers are eliminated. For measurements above 20A and 1000V, a broad range of transformers, shunts and DC-coupled transducers can be accommodated. Ideal for general-purpose measurements of watts, power factor, harmonics as well as volts and amps in the design, development and production of electrical and electronic equipment
Other features and specifications include:
- Basic Accuracy: 0.1%
- Bandwidth: DC to 250kHz
- Direct Inputs 1000Vpk / 20A RMS
- Graphics display of waveforms and harmonic barcharts
- W, V, A, VA, Var, Power factor, Cosf, Vpk, Apk, crest factors and frequency
- Harmonics V, A (incl. phase) and W to the 50th
- Total Harmonic Distortion
- Integrator for W-hr, VA-hr, A-hr, VA-hr, average and target PF
- Easy-to-use menu structure available in diffe languages
- Accepts and scales for external cur and voltage transducers
