Wavecontrol SMP2 Options:
- SMP2 - Broadband - For broadband measurements using probes: WPFx, WPT, WP50, WPH60 and WPH1000
- SMP2 - Selective - For frequency selective measurements from 0 to 400 kHz using WP400, WP400-3, WP400c and WPH-DC
- SMP2 - Dual - For both broadband and selective measurements using all field probes
- SMP2 - WSN0001-2-3 - SMP2 carrying case (robust case to fit the SMP2 and up to 5 probes)
- SMP2 - WSNO0001 - Internal embedded GPS
- SMP2 - WSNA0001 - Non-reflective wooden tripod (including transport cover)
- SMP2 - WSNA0002 - Tripod extension (horizontal extension for LF vertical E-field measurements)
- SMP2 - WSNA0004 - Fiber optics interface (10-meter fiber optics + Converter USB to PC)
- SMP2 - WSNA0005 - SMP2 protective pouch (easily portable protective soft sheath)
- SMP2 - WSNA0007 - Vehicle DC charger (charge SMP2 from a vehicle DC connector)
- SMP2 - WSNA0008 - SMP2 backpack (soft backpack to fit up to 3 probes)
- SMP2 - WSNA0011 - Probe extension cable (5-meter extension cable)
- SMP2 - WSNA0013 - Probe support for tripod (recommended with the probe extension cable)
| Model | SMP2 |
|---|

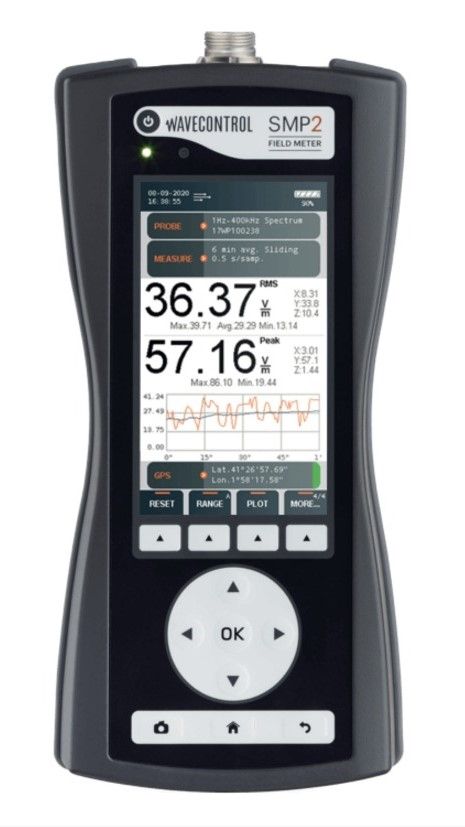

Wavecontrol SMP2 Electromagnetic field meter
The Wavecontrol SMP2 is an electromagnetic field meter that provides for both broadband electromagnetic field metering and industrial frequency spectrum analysis in a single portable package. The SMP2 performs low frequency spectrum analysis using Fast Fourier Transform (FFT) and the Weighted Peak Method (WPM). The Wavecontrol SMP2 Electromagnetic field meter is extremely flexible, with interchangeable broadband field probes that can easily be swapped to provide measurement ranges for various EMF assessment and validation applications.
The Wavecontrol SMP2 Electromagnetic field meter is a 3-in-1 measurement device offering broadband EMF measurements from DC to 40 GHz, frequency spectrum analysis from DC to 400 kHz, and static field measurements. With its generous graphic display of 480×272 color pixels, you'll see real-time measurement results with easy access to a dynamic menu of measurement options. With optional fiber optics, a Mini-USB port, and over 1 million samples of memory, the Wavecontrol EMF Meter SMP2 provides you the ultimate flexibility for EMF measurement data. With the Wavecontrol SMP2 Electromagnetic field meter, we can have the measurement capability for all your EMF assessment and validation needs.
Specifications for the Wavecontrol SMP2 Electromagnetic field meter Include:
| Broadband | 0 Hz €“ 60 GHz |
| Spectrum analysis | Up to 400 kHz |
| Weighted Peak Method | 1 Hz €“ 400 kHz |
| Memory capacity | More than 1 million samples |
