Gigatronics 80320A
Power Sensor, 10 MHz - 18 GHz, -60 to + 30 dBm
10 MHz to 20 GHz Frequency Range
-67 dBm to +20 dBm Power Range
±0.5 dB Power Accuracy
2 Number of Channels
Compatible with Gigatronics 80000A series power sensors Sensor Compatibility
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Power Range | -67 dBm to +20 dBm |
| Power Accuracy | ±0.5 dB |
| Number of Channels | 2 |
| Sensor Compatibility | Compatible with Gigatronics 80000A series power sensors |
| Display | Backlit LCD with numeric and graphical readout |
| Measurement Speed | Up to 200 readings per second |
| Interface | GPIB (IEEE-488), RS-232 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
Gigatronics 80320A Options:
- 80320A - 01 - Rack mount kit
- 80320A - 03 - 8651A Rear Panel Sensor and Calibrator Connections
- 80320A - 04 - 8652A Rear Panel Sensor and Calibrator Connections
- 80320A - 05 - Soft Carry Case
- 80320A - 07 - Side Mounted Carrying Handle
- 80320A - 08 - Transit Case, (Includes Soft Carry Case)
- 80320A - 09 - Dual Rack Mount Kit (with assembly instructions)
- 80320A - 10 - Dual Rack Mount Kit (factory assembled)
- 80320A - 12 - 1 GHz, 50 MHz Switchable Calibrator
- 80320A - 13 - 8651A Rear Panel Input Connector
- 80320A - 14 - 8652A Rear Panel Input Connectors
| Model | 80320A |
|---|

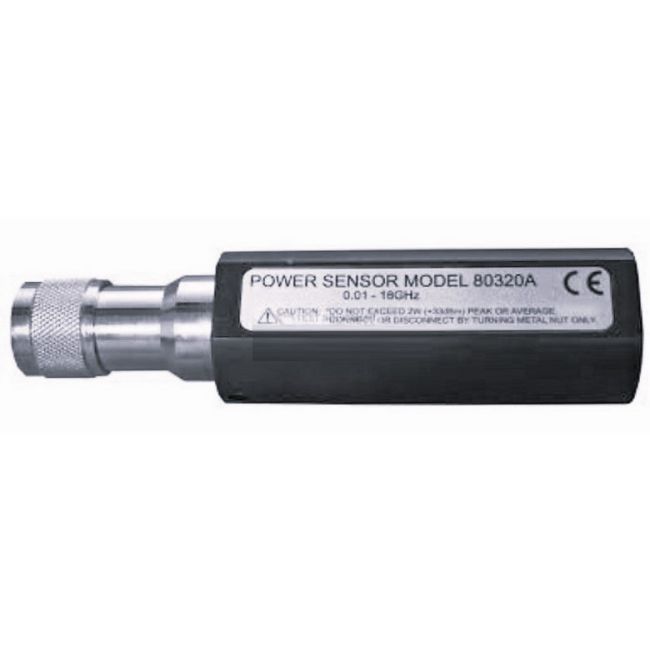

Gigatronics 80320A Power Sensor:
- Minimum Frequency: 10 MHz
- Maximum Frequency: 18 GHz
- Minimum Power (dB): -60 dBm
- Maximum Power (dB): 30 dBm
- Maximum Power (W): 1 Watts
- Minimum Power Linearity Range: -60 dB
- Minimum Power Linearity Accuracy: 0 dB
- Maximum Power Linearity Range: 30 dB
- Maximum Power Linearity Accuracy: 0.1 dB
- V/SWR, First Range: 1.11: 0.01 to 2GHz
- V/SWR, Second Range: 1.12: 2 - 12GHz
- V/SWR, Third Range: 1.23: 12 to 18GHz
- V/SWR, Fourth Range: 1.22: 18 to 26.5GHz
- V/SWR, Fifth Range: 1.36: 26.5 - 40 GHz
- Connector type: (main signal) Type-K(m)
