Gigatronics 80325A
10MHz-18GHz Power Sensor -40dBm To +47dBm
10 MHz to 26.5 GHz Frequency Range
-110 dBm to +20 dBm Output Power Range
1 Hz Frequency Resolution
-116 dBc/Hz at 10 kHz offset (at 10 GHz) SSB Phase Noise
Less than 5 ms Frequency Switching Speed
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| Output Power Range | -110 dBm to +20 dBm |
| Frequency Resolution | 1 Hz |
| SSB Phase Noise | -116 dBc/Hz at 10 kHz offset (at 10 GHz) |
| Frequency Switching Speed | Less than 5 ms |
| Harmonic Suppression | -30 dBc typical |
| Output Connector | Type-N (female) / 3.5 mm (female) |
| Modulation Types | AM, FM, Phase, and Pulse Modulation |
| Power Accuracy | ±1.0 dB |
| Interface | GPIB (IEEE-488) and RS-232 |
| Model | 80325A |
|---|

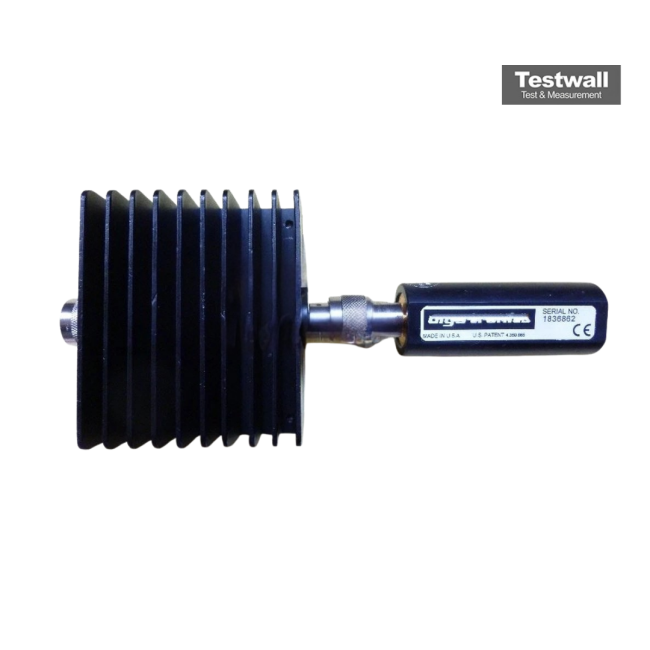

The Gigatronics 80325A Power Sensor operates from 10MHz to 18GHz, supporting power levels from -40dBm to +47dBm (50W). It features CW average sensing and an integrated frequency response calibration, making it ideal for precise RF power measurements.
Its wide dynamic range and built-in calibration enhance measurement accuracy across a variety of RF applications.
Testwall can supply the used Gigatronics 80325A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Gigatronics 80325A.
