Gigatronics 80421A
Power Sensor, 10 MHz - 18 GHz, +37 to -47 dBm, 5W
10 MHz to 26.5 GHz Frequency Range
-67 dBm to +20 dBm Power Range
CW, Pulsed, and Modulated Signal Power Measurement Measurement Mode
Dual Channel Display with Numeric and Graphic Readout Display
Compatible with Gigatronics 80000 Series Power Sensors Sensor Compatibility
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| Power Range | -67 dBm to +20 dBm |
| Measurement Mode | CW, Pulsed, and Modulated Signal Power Measurement |
| Display | Dual Channel Display with Numeric and Graphic Readout |
| Sensor Compatibility | Compatible with Gigatronics 80000 Series Power Sensors |
| Measurement Speed | Up to 200 Readings per Second |
| Interface | GPIB (IEEE-488) and RS-232 Interface |
| Calibration Output | 50 MHz Reference Calibration Output at 0 dBm |
| Power Supply | 90–264 VAC, 47–63 Hz, Universal Input |
| Operating Temperature | 0°C to 55°C |
Gigatronics 80421A Options:
- 80421A - 01 - Rack mount kit
- 80421A - 03 - 8651A Rear Panel Sensor and Calibrator Connections
- 80421A - 04 - 8652A Rear Panel Sensor and Calibrator Connections
- 80421A - 05 - Soft Carry Case
- 80421A - 07 - Side Mounted Carrying Handle
- 80421A - 08 - Transit Case, (Includes Soft Carry Case)
- 80421A - 09 - Dual Rack Mount Kit (with assembly instructions)
- 80421A - 10 - Dual Rack Mount Kit (factory assembled)
- 80421A - 12 - 1 GHz, 50 MHz Switchable Calibrator
- 80421A - 13 - 8651A Rear Panel Input Connector
- 80421A - 14 - 8652A Rear Panel Input Connectors
| Model | 80421A |
|---|

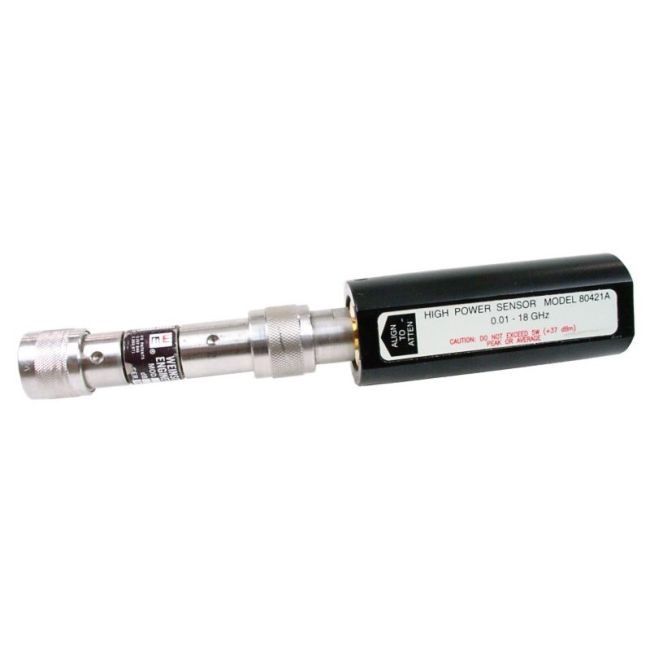

The Gigatronics 80421A Power Sensor features a frequency range of 10 MHz to 18 GHz and a power range of -47 dBm to + 37 dBm. VSWR of the Gigatronics 80421APower Sensor is 1.20: 0.01 - 6 GHz, 1.25: 6 - 12.4 GHz and 1.29: 1.35: 12.4 - 18 GHz.. Maximum power is +37 dBm (5 W). It is compatible with the 8540x series and 8650A series of Power Meters.
