Glassman

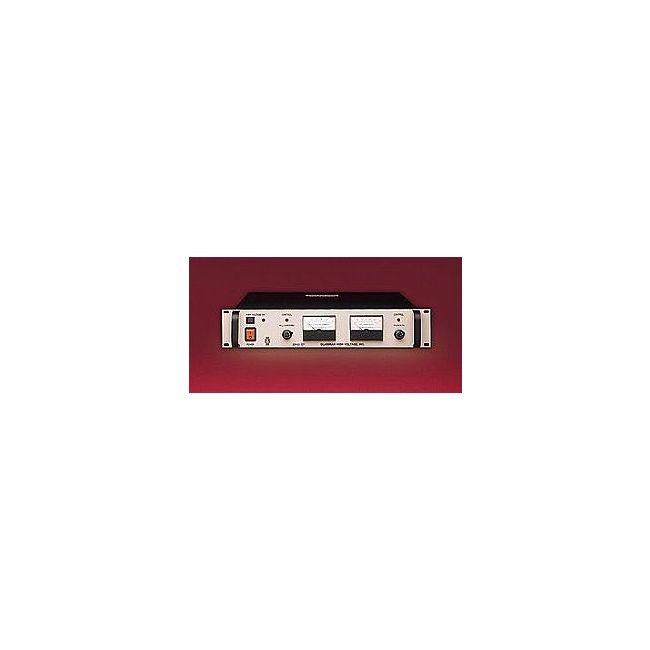

Glassman ER2R150
High Voltage DC Power Supply
2 kV Output Voltage
150 mA Output Current
300 W Output Power
Positive Output Polarity
115/230 VAC, 47-63 Hz Input Voltage
| Attribute | Value |
|---|---|
| Output Voltage | 2 kV |
| Output Current | 150 mA |
| Output Power | 300 W |
| Output Polarity | Positive |
| Input Voltage | 115/230 VAC, 47-63 Hz |
| Voltage Regulation (Line/Load) | 0.01% of maximum output voltage |
| Current Regulation (Line/Load) | 0.01% of maximum output current |
| Ripple & Noise | 0.01% RMS of maximum output voltage |
| Control Interface | 0-10 VDC analog programming and monitoring |
| Form Factor | Rack mountable, 19-inch rack compatible enclosure |
Glassman ER2R150 Options:
- ER2R150 - 100 - 100 V input, rated 90-110 V RMS, 48-63 Hz
- ER2R150 - 220 - 220 V input, rated 200-264 V RMS, 48-63 Hz
- ER2R150 - 400 - 48-420 Hz, available on standard model and options 100 and 220
- ER2R150 - DM - 3-1/2 digit LCD panel meters
- ER2R150 - NC - Blank front panel (power switch only)
- ER2R150 - CT - Current trip. Power supply trips off when the load current reaches the programmed level. Rear panel switch selects either "trip" operation or current limiting
- ER2R150 - ZR - Zero start interlock. Voltage control must be at zero before accepting an enable signal
- ER2R150 - SS - Slow start ramp of up to 30 seconds available. Specify time
- ER2R150 - 5VC - 0-5 V voltage and current program/monitor
| Model | ER2R150 |
|---|
The Glassman ER2R150 is a High Voltage DC Power Supply. The ER2R150 is rated 0 - 2kV at 0 - 150mA
