GN Nettest BT17
| Attribute | Value |
|---|---|
| Device Type | Optical Loss Test Set (OLTS) |
| Wavelengths Supported | 850 nm, 1300 nm, 1310 nm, 1550 nm |
| Fiber Type Compatibility | Single-mode and Multimode Fiber |
| Measurement Range | Up to 60 dB dynamic range |
| Display Type | LCD Display with backlight |
| Power Source | Rechargeable NiMH battery pack |
| Battery Life | Approximately 8 hours of continuous operation |
| Connector Interface | Universal adapter port compatible with SC, ST, FC connectors |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Standards Compliance | TIA/EIA-526-7, TIA/EIA-526-14A, IEC 61280-4-1, IEC 61280-4-2 |
GN Nettest BT17 Options:
- BT17 - R - 19" rack-mount version (3U)
- BT17 - LP - Polarization sensitivity of gain <0.25 dB
- BT17 - J-APC - Fiber-optic jumper FC-APC/FC-APC
- BT17 - J-PC - Fiber-optic jumper FC-APC/FC-PC (included when delivered)
| Model | BT17 |
|---|

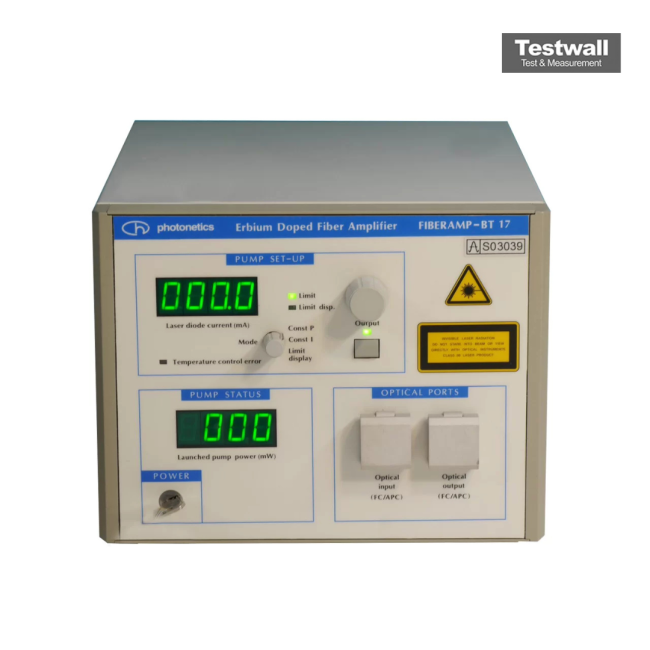

The GN Nettest BT17 is a compact optical test instrument designed for fiber loop-back diagnostics and optical alignment tasks. Likely functioning as a tunable or broadband test source, it combines built-in laser and power-meter capabilities. Supporting multiple wavelengths, it ensures calibrated output and integrates seamlessly into field test racks for flexible optical layer evaluation and verification.
Ideal for telecom and data networks, the BT17 provides precise and reliable optical performance testing. Its versatility makes it suitable for both laboratory and field applications requiring accurate wavelength management and signal analysis.
Testwall can supply the used GN Nettest BT17, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the GN Nettest BT17.
