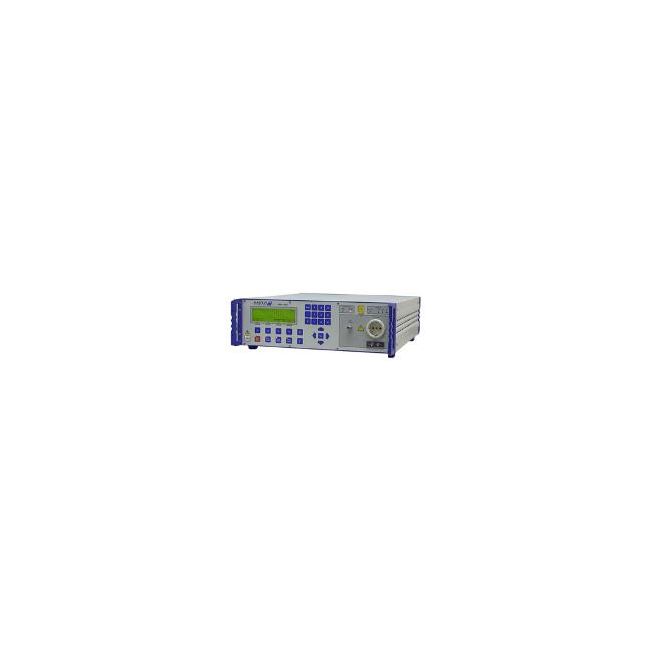

Haefely PEFT4010
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 4 kV peak |
| Frequency Range | 10 Hz – 400 Hz |
| Output Power | 10 VA |
| Waveform | Sinusoidal |
| Test Standard Compliance | IEC 60270, IEC 60343 |
| Application | Partial discharge-free power supply for high voltage testing |
| Input Voltage | 115 V / 230 V AC, 50/60 Hz |
| Output Impedance | Low impedance design to minimize interference |
| Dimensions (W x H x D) | Compact benchtop unit |
| Operating Temperature | 0 °C to +40 °C |
Haefely PEFT4010 Options:
- PEFT4010 - 249253 - FP-EFT 32.1 fully automatic three phase 32A, 690V/400V CDN. Coupling path selection is controlled from the PEFT 4010.
- PEFT4010 - 249017 - FP-EFT 32M manual three phase 32A, 690V/400V CDN. Coupling path selection is manual.
- PEFT4010 - 249586 - FP-EFT 100M manual three phase CDN for operation up to 100A, 690V/400V.
- PEFT4010 - 249130 - IP4A capacitive coupling clamp for superposition of burst on data lines in accordance with IEC 61000-4-4, edition 1 and 2.
- PEFT4010 - 249602 - Easy Control hand held remote control unit used to start, stop or load tests and programs from the PEFT 4010 memory.
- PEFT4010 - 249735 - Vertical Operation Stand mounts the PEFT 4010 vertically for easy access while the instrument stands on a floor level ground plane.
- PEFT4010 - 249734 - Real Burst Circuit Board allows "Real5/Real100" burst mode with changing amplitude while varying frequencies and improves the impulse shape with frequencies > 1 MHz.
- PEFT4010 - 249608 - E and H Field Generation Probes set used to inject near fields and to find electromagnetic sensitive areas in a test object.
- PEFT4010 - 249970 - WinFEAT&R control software for remote operation, data logging and analysis (FEAT&R = Fast, Easy, Accurate Testing & Reporting).
- PEFT4010 - 249528 - Upgrade Kit PEFT 4010 updates the instrument to the newest standard (IEC61000-4-4, Ed. 2, July 2004). Contains firmware upgrade, single phase verification adapter and application note.
- PEFT4010 - 249556 - IEEE-488 Interface P95 IEEE card.
- PEFT4010 - 249689 - OPTICAL DEC95 RS-232 optical link for galvanic isolation between PEFT 4010 and PC.
- PEFT4010 - 249449 - EUT-OPT.1 optical link for electrical decoupling of the EUT failed input.
- PEFT4010 - 249200 - AC Adapter Set for country specific power plug (B, CH, US).
- PEFT4010 - 249739 - AC Adapter Schuko-UK converts Euro to UK plugs (13A, 250V).
- PEFT4010 - 249733 - DC Adapter Set for DC applications.
- PEFT4010 - 249995 - EFT Verification Set for verifying the HV output with 50Ω and 1000Ω load.
- PEFT4010 - 249603 - Adapter Verification for wave shape verification at the line output of the PEFT 4010.
- PEFT4010 - 249667 - Fiber Optic Interface for connecting the PESD 1610 with the PEFT 4010 mainframe.
- PEFT4010 - 249944 - Warning Lamp.
- PEFT4010 - 249945 - Emergency Stop Switch.
| Model | PEFT4010 |
|---|
The Haefely PEFT4010 is a high-performance EFT/Burst generator engineered for compliance with IEC/EN 61000-4-4 standards. It features adjustable parameters, user-friendly operation, and a rugged, compact design, making it reliable for compliance and production testing. The device ensures consistent and repeatable results, even under demanding conditions.
With its versatile configuration, the Haefely PEFT4010 is ideal for both laboratory and production environments. It provides precise, repeatable testing and supports continuous operation for accurate EMC immunity evaluations.
Testwall can supply the used Haefely PEFT4010, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Haefely PEFT4010.
