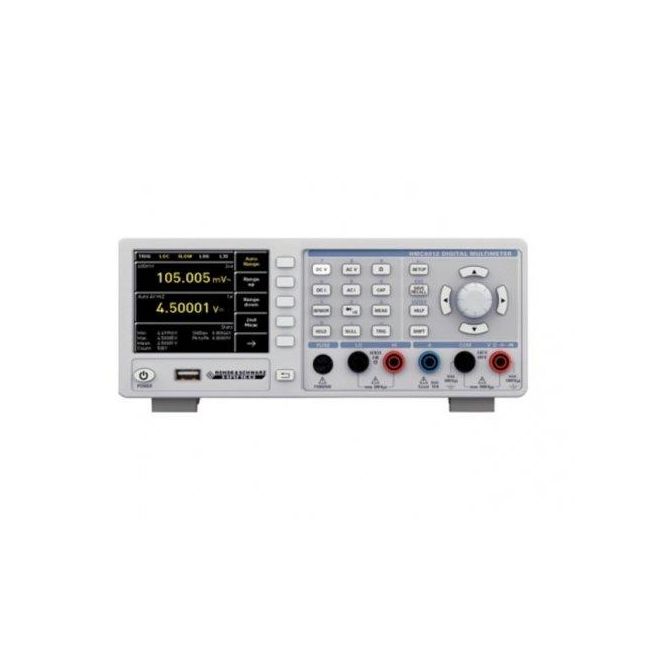

Hameg HMC8012 Digital Multimeter
6½ digits (1,200,000 counts) Number of Digits
100 mV to 1000 V DC Voltage Measurement Range
0.015% + 0.004% DC Voltage Accuracy
100 mV to 750 V (10 Hz to 100 kHz) AC Voltage Measurement Range
100 Ω to 100 MΩ Resistance Measurement Range
| Attribute | Value |
|---|---|
| Number of Digits | 6½ digits (1,200,000 counts) |
| DC Voltage Measurement Range | 100 mV to 1000 V |
| DC Voltage Accuracy | 0.015% + 0.004% |
| AC Voltage Measurement Range | 100 mV to 750 V (10 Hz to 100 kHz) |
| Resistance Measurement Range | 100 Ω to 100 MΩ |
| DC Current Measurement Range | 100 µA to 10 A |
| Frequency Measurement Range | 10 Hz to 1 MHz |
| Interfaces | USB Device, USB Host, LAN (LXI), RS-232 |
| Display | 4.3-inch color TFT LCD display |
| Temperature Measurement Range | -200°C to +1820°C (with thermocouple) |
Hameg HMC8012 Digital Multimeter Options:
- HMC8012 - IEEE-488/GPIB - Optional IEEE-488 (GPIB) interface
- HMC8012 - HZ812 - PT100 Temperature probe 2-wire
- HMC8012 - HZ887 - PT100 Temperature probe 4-wire
- HMC8012 - HZC95 - 19" rackmount kit 2RU for HMC series
| Model | HMC8012 |
|---|
The Hameg HMC8012 Digital Multimeter consists of three measurement functions displayed simultaneously and a 5 3/4 digit display.
Provides quick and easy measurement, high accuracy and resolution, long-term data logging capability and is a highly valuable multimeter for service and repair centres, training centres and schools and universities.
Key Features
- Simultaneous display of 3 measurements
- Up to 200 measurements per second
- 12 measurements functions:
- DCV, DCI, true RMS, ACV and ACI, frequency, 2- and 4-wire resistance, capacitance, continuity, diode test, temperature, power
- Mathematic functions:
- Limit testing, minimum/maximum, average, offset, DC power, dB, dBm
- Data logging in .CSV-format to internal memory or USB-stick
- Interfaces: USB-TMC and Ethernet (LXI in preparation), optional IEEE-488 (GPIB
