Hameg

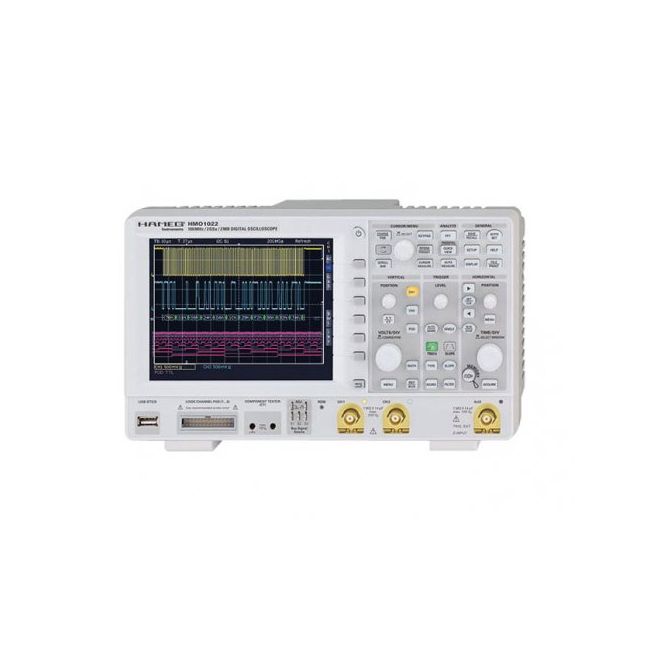

Hameg HMO1022
Mixed signal oscilloscope, 100 MHz, 2 channels, 2 GSa/s (HMO Compact)
100 MHz Bandwidth
2 analog + 8 logic (MSO) Number of Channels
2 GSa/s (1 GSa/s per channel) Sample Rate
2 Mpoints (1 Mpoint per channel) Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 analog + 8 logic (MSO) |
| Sample Rate | 2 GSa/s (1 GSa/s per channel) |
| Memory Depth | 2 Mpoints (1 Mpoint per channel) |
| Vertical Resolution | 8-bit |
| Digital Channels | 8 logic channels with HO3508 probe (MSO function standard) |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Input Impedance | 1 MΩ |
| Zoom | Up to 50,000:1 |
| Other Functions | Component tester, FFT, automatic measurements |
| Display | 6.5-inch VGA (640 x 480) colour TFT |
| Connectivity | USB stick; dual interface USB/RS-232 (HO720), optional Ethernet/USB (HO730) or GPIB (HO740) |
| Series | Rohde & Schwarz (Hameg) HMO Compact |
Hameg HMO1022 Digital Oscilloscope Options:
- HMO1022 - HOO10 - Serielle Busse triggern und hardwareunterstützt dekodieren, I²C, SPI, UART/RS-232 auf Logikkanälen und Analogkanälen
- HMO1022 - HOO11 - Serielle Busse triggern und hardwareunterstützt dekodieren, I²C, SPI, UART/RS-232 auf Analogkanälen
- HMO1022 - HOO12 - Serielle Busse triggern und hardwareunterstützt dekodieren, CAN, LIN auf Logikkanälen und Analogkanälen
- HMO1022 - HO3508 - Aktiver 8 Kanal Logiktastkopf
- HMO1022 - HO730 - Dual-Schnittstelle Ethernet/USB
- HMO1022 - HO740 - Schnittstelle IEEE-488 (GPIB), galvanisch getrennt
The Hameg HMO1022 100MHz 2-channel digital oscilloscope has a bandwidth of 100MHz and 2MPts memory depth. It is the only scope of this performance class on the market reading analog and digital signals simultaneously. With extensive features, great power and high connectivity, it is an ideal tool for training, development and service.
Key Features
- 2 Gsample/s realtime sampling rate, low-noise flash A/D converter
- 2 Mpoint memory, zoom up to 50 000:1
- MSO functionality included as standard (HO3508 logic probe required)
- Component tester for capacitors, inductors and semiconductors
- Vertical sensitivity down to 1 mV/div
- Trigger modes: slope (A/B), pulse width, video, logic, serial buses (optional)
- Serial bus trigger and hardware-accelerated decode including list view options: I2C+SPI+RS-232/UART
