Hameg

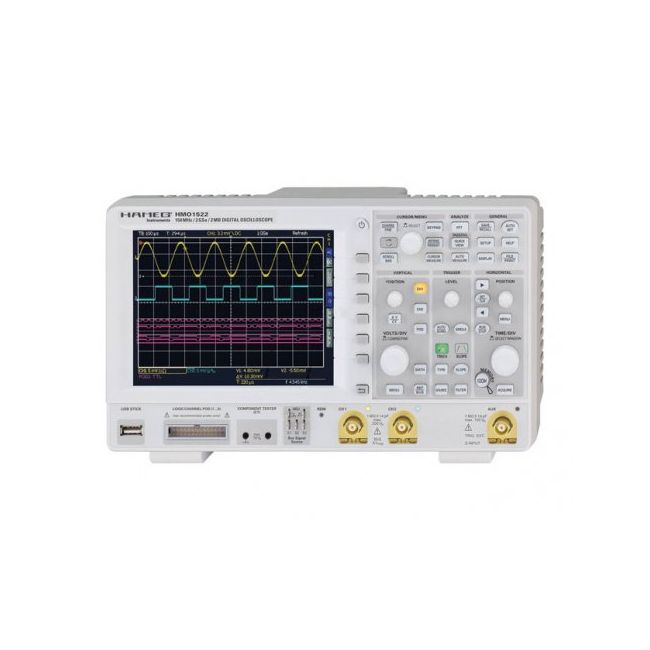

Hameg HMO1522
Mixed signal oscilloscope, 150 MHz, 2 channels, 2 GSa/s (HMO Compact)
150 MHz Bandwidth
2 analog + 8 logic (MSO) Number of Channels
2 GSa/s (1 GSa/s per channel) Sample Rate
2 Mpoints (1 Mpoint per channel) Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 150 MHz |
| Number of Channels | 2 analog + 8 logic (MSO) |
| Sample Rate | 2 GSa/s (1 GSa/s per channel) |
| Memory Depth | 2 Mpoints (1 Mpoint per channel) |
| Vertical Resolution | 8-bit |
| Digital Channels | 8 logic channels with HO3508 probe (MSO function standard) |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Input Impedance | 1 MΩ |
| Zoom | Up to 50,000:1 |
| Other Functions | Component tester, FFT, automatic measurements |
| Display | 6.5-inch VGA (640 x 480) colour TFT |
| Connectivity | USB stick; dual interface USB/RS-232 (HO720), optional Ethernet/USB (HO730) or GPIB (HO740) |
| Series | Rohde & Schwarz (Hameg) HMO Compact |
Hameg HMO1522 Digital Oscilloscope Options:
- HMO1522 - HOO10 - Serial bus trigger and hardware accelerated decode, I²C, SPI, UART/RS-232 on Logic Channels and Analog Channels
- HMO1522 - HOO11 - Serial bus trigger and hardware accelerated decode, I²C, SPI, UART/RS-232 on Analog Channels
- HMO1522 - HOO12 - Serial bus trigger and hardware accelerated decode, CAN, LIN on Logic Channels and Analog Channels
- HMO1522 - HO3508 - Active 8 Channel Logic Probe
- HMO1522 - HO730 - Dual-Interface Ethernet/USB
- HMO1522 - HO740 - Interface IEEE-488 (GPIB) galvanically isolated
- HMO1522 - HZO91 - 4RU 19" Rackmount Kit
- HMO1522 - HZO90 - Carrying Case for protection and transport
- HMO1522 - HZO20 - High voltage probe 1,000:1 (400MHz, 1,000Vrms)
- HMO1522 - HZO30 - Active probe 1GHz (0.9pF, 1MΩ, including many accessories)
- HMO1522 - HZO40 - Active differential Probe 200MHz (10:1, 3.5pF, 1MΩ)
- HMO1522 - HZO41 - Active differential Probe 800MHz (10:1, 1pF, 200kΩ)
- HMO1522 - HZO50 - AC/DC Current probe 30A, DC…100kHz
- HMO1522 - HZO51 - AC/DC Current probe 100/1,000A, DC…20kHz
The Hameg HMO1522 150MHz 2-channel digital oscilloscope has a bandwidth of 150MHz and 2MPts memory depth. It is the only scope of this performance class on the market reading analog and digital signals simultaneously. With extensive features, great power and high connectivity, it is an ideal tool for training, development and service.
Key Features
- High accuracy due to low-noise flash A/D converter
- Vertical sensitivity down to 1 mV/div
- MSO functionality included, only HO3508 probe needed
- Serial bus trigger and hardware accelerated decode: I2C, SPI, UART/RS-232, CAN, LIN
- Component tester and a hardware 6-digit counter
- Intelligent user interface:
- 28 Auto-Measurement parameters plus statistics and formula editor
- Automatic search for user-defined events
- Pass/fail mask tests
- Extended display (VirtualScreen)
- Small footprint and incredibly silent
