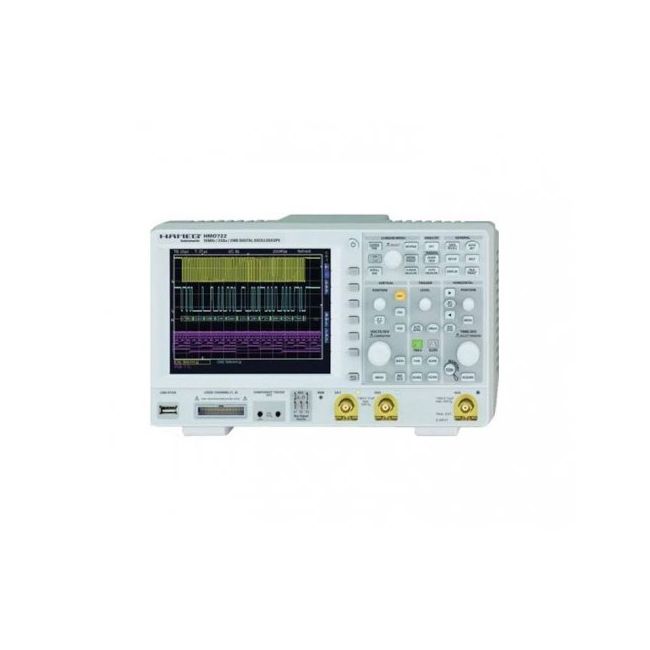

Hameg HMO722
Mixed signal oscilloscope, 70 MHz, 2 channels, 2 GSa/s (HMO Compact)
70 MHz Bandwidth
2 analog + 8 logic (MSO) Number of Channels
2 GSa/s (1 GSa/s per channel) Sample Rate
2 Mpoints (1 Mpoint per channel) Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 70 MHz |
| Number of Channels | 2 analog + 8 logic (MSO) |
| Sample Rate | 2 GSa/s (1 GSa/s per channel) |
| Memory Depth | 2 Mpoints (1 Mpoint per channel) |
| Vertical Resolution | 8-bit |
| Digital Channels | 8 logic channels with HO3508 probe (MSO function standard) |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Input Impedance | 1 MΩ |
| Zoom | Up to 50,000:1 |
| Other Functions | Component tester, FFT, automatic measurements |
| Display | 6.5-inch VGA (640 x 480) colour TFT |
| Connectivity | USB stick; dual interface USB/RS-232 (HO720), optional Ethernet/USB (HO730) or GPIB (HO740) |
| Series | Rohde & Schwarz (Hameg) HMO Compact |
Hameg HMO722 Mixed Signal Oscilloscope Options:
- HMO722 - HOO10 - Serial bus trigger and hardware accelerated decode, I²C, SPI, UART/RS-232 on Logic Channels and Analog Channels
- HMO722 - HOO11 - Serial bus trigger and hardware accelerated decode, I²C, SPI, UART/RS-232 on Analog Channels
- HMO722 - HOO12 - Serial bus trigger and hardware accelerated decode, CAN, LIN on Logic Channels and Analog Channels
- HMO722 - HO3508 - Active 8 Channel Logic Probe
- HMO722 - HO730 - Dual-Interface Ethernet/USB
- HMO722 - HO740 - Interface IEEE-488 (GPIB) galvanically isolated
The Hameg HMO722 is a 70MHz mixed-signal 2-channel digital oscilloscope with 8 logic channels and 6.5 inch VGA TFT display. It provides optimum performance and functionality for displaying electrical signals and provides fast solutions.
Key Features
- 2GSa/s Real time, low noise flash A/D converter (reference class)
- 2MPts Memory, memory zoom up to 50,000:1
- High vertical sensitivity down to 1 mV/div
- Low-noise measurement due to state-of-the-art A/D converter
- QuickView and QuickMath for fastest access to the most demanding functions
- Serial bus trigger and hardware accelerated decode:
- I2C, SPI, UART/RS-232, CAN, LIN
- Dedicated education mode
- Built in MSO capability and five more bench functionalities at the best in class price performance: pattern generator, digital voltmeter, production tester, function generator and component tester
