High Voltage Inc VLF-34E
| Manufacturer | High Voltage Inc |
| Model | VLF-34E |
| Product | Very Low Frequency Hipot Tester, 34kV |
| Type | Used |

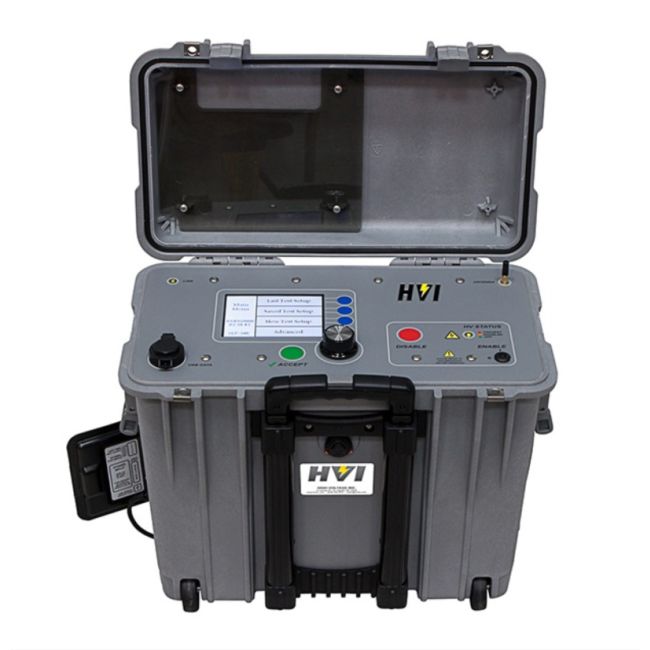

HIGH VOLTAGE VLF-34E Very Low Frequency Hipot Tester
The High Voltage VLF-34E Very Low Frequency Hipot Tester is the latest generation of VLF AC hipots using an air-cooled, solid state design with microprocessor control. High end features include user programable test sequences, wireless communications, data retrieval and manual or automatic load based output frequency selection. The supplied E-Link PC software offers wireless remote operation, custom report generation, and test data export to .csv. Test programming, data retrieval, and custom PC software are intuitive and easy to learn. This unit is portable, affordable, and designed to withstand years of field use.
The High Voltage VLF-34E Very Low Frequency Hipot Tester 0 €“ 34 kV AC peak/0 €“ 24 kV RMS output voltage meets world standards for maintenance testing up to 25 kV class cable, and its sine wave output pairs easily with the optional tan delta and partial discharge measurement systems. More than just a DC burner like others offer. HVI uses the VLF voltage to continuously charge the cable, in both polarities, letting it discharge its stored energy into the fault while using the VLF's cur output to sustain the arc every half cycle to better burn the fault.
Specifications for the HIGH VOLTAGE INC. VLF-34E Very Low Frequency Hipot Tester Include:
| Output Power AC/DC | 0-34 kVPeak/0-34 kV (proof test, sheath test) |
| Frequency | 0.01 to 0.1 Hz in .01 Hz increments, auto-frequency detect |
| Load Rating | 0.5 µF @ 0.1 Hz @ 34 kV, 1.0 µF @ 0.05 Hz @ 34 kV, 5.0 µF @ 0.01 Hz @ 34 kV |
| Display | 320 x 240 TFT-LCD LED Backlit Color |
