High Voltage Inc VLF-65E
| Manufacturer | High Voltage Inc |
| Model | VLF-65E |
| Product | Very Low Frequency Hipot Tester, 65kV |
| Type | Used |

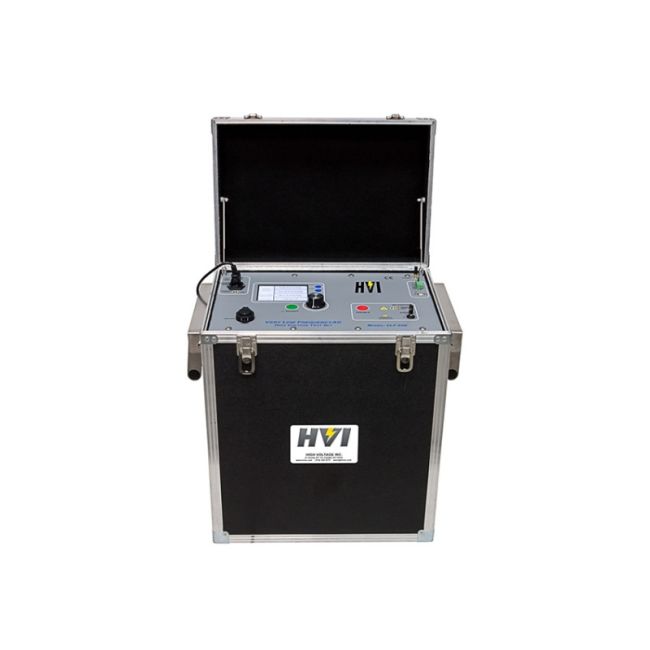

HVI VLF-65E VLF Hipot
The HVI VLF-65E is a part of the enhanced line of hipot testers from High Voltage Inc. HVI AC hipots incorporate an air-cooled, solid state design with microprocessor control. Test programming, data retrieval, and custom PC software are intuitive and easy to learn. The VLF-65E is portable, budget-friendly, and designed to withstand years of field use.
The 0 to 65 kV AC peak / 0 to 46 kV AC RMS output voltage meets world standards for acceptance testing up to 35 kV class cable, and its sine wave output pairs easily with optional tan delta and partial discharge measurement systems.
Features of the HVI VLF-65E VLF Hipot include:
- VLF and DC output
- Programmable test sequences
- Automatic and manual control
- USB port for exporting data
- Wireless computer interface for remote control operation and data uploadOnscreen tan delta data display with optional TD-65E
- XBee wireless for better signal sustainability and broader range than Bluetooth
Output Rating:
- VLF sinewave: 0 €“ 65 kV AC peak/46 kV AC RMS @ 28 mA RMS
- VLF square wave: 0 €“ 65 kV AC peak @ 22 mA
- DC: 0 €“ ± 65 kV @ 22 mA
- Sheath test €“ programmable
