Hioki 3561
| Attribute | Value |
|---|---|
| Measurement Range | 0.000 mΩ to 3000 Ω (7 ranges) |
| Basic Accuracy | ±0.5% rdg. ±6 dgt. |
| Measurement Current | 1 mA to 100 mA DC (varies by range) |
| Display | 4-digit LCD with analog bar graph |
| Measurement Method | 4-terminal sensing (Kelvin method) |
| Response Time | Approximately 2.5 times per second |
| Power Supply | 9V battery (006P) × 1, approximately 10 hours continuous use |
| Dimensions | 68 mm × 130 mm × 28 mm (W × H × D) |
| Weight | Approximately 200 g (including battery) |
| Standards Compliance | IEC 61010-1 CAT II 300V, Pollution Degree 2 |
Hioki 3561 Options:
- 3561 - 01 - Built in GP-IB interface
| Model | 3561 |
|---|

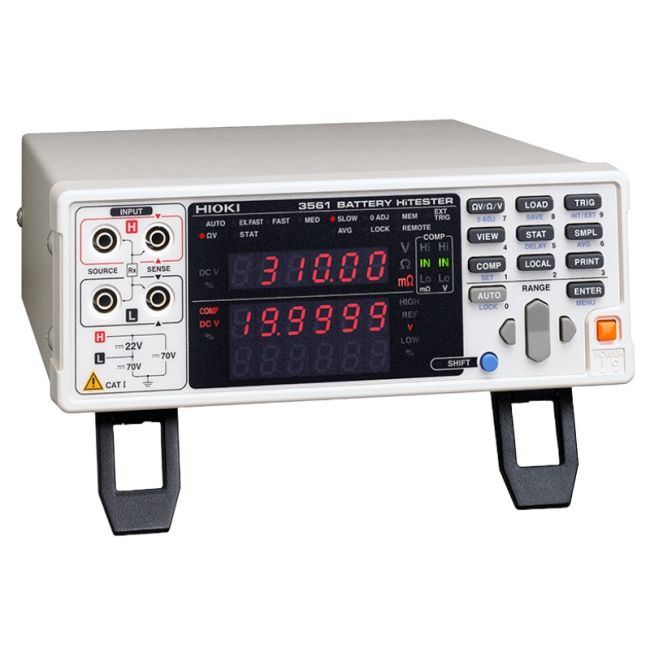

The Hioki 3561 Battery HiTester is a benchtop instrument designed for fast and precise evaluation of small secondary batteries. It measures internal resistance from 300 mΩ to 3Ω and voltage from ±0.1 mV DC to ±19.9999 V DC with high accuracy. Featuring simultaneous resistance and voltage testing, it ensures efficient performance in production line environments. With a rapid measurement speed of 10 ms, it supports streamlined and reliable quality control in demanding applications.
This instrument offers high-resolution readings down to 1 μΩ for resistance and 10 μV for voltage, with comparator outputs enabling go/no-go decisions. Equipped with RS-232C and optional GP-IB interfaces, the Hioki 3561 integrates seamlessly into automated test setups with external triggering and remote control capability.
Testwall can supply the used Hioki 3561, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Hioki 3561.
