Hioki BT4560
| Attribute | Value |
|---|---|
| Measurement Parameters | AC Resistance, DC Resistance, Inductance (L), Quality Factor (Q), Dissipation Factor (D), Capacitance (C) |
| Frequency Range | 1 Hz to 300 kHz |
| Measurement Range (AC Resistance) | 1 mΩ to 100 MΩ |
| DC Bias Voltage | 0 V to ±5 V (variable) |
| DC Bias Current | 0 mA to ±200 mA (variable) |
| Basic Accuracy | 0.05% |
| Test Signal Level | 10 mV to 5 V rms (variable) |
| Interface | USB, RS-232C, GP-IB (optional) |
| Power Supply | 100 to 240 V AC, 50/60 Hz |
| Dimensions / Weight | 330 mm × 132 mm × 351 mm (W×H×D) / Approximately 7.5 kg |
Hioki BT4560 Options:
- BT4560 - L2002 - Clip Type Probe, Cable length: 1.5 m (for measuring laminated sheet batteries)
- BT4560 - L2003 - Pin Type Probe, Cable length: 1.5 m (for line-embedded applications and various other types of batteries)
- BT4560 - Z2005 - Temperature Sensor, Cable length: 1 m
- BT4560 - 9637 - RS-232C Cable, Cable length: 1.8 m
| Model | BT4560 |
|---|

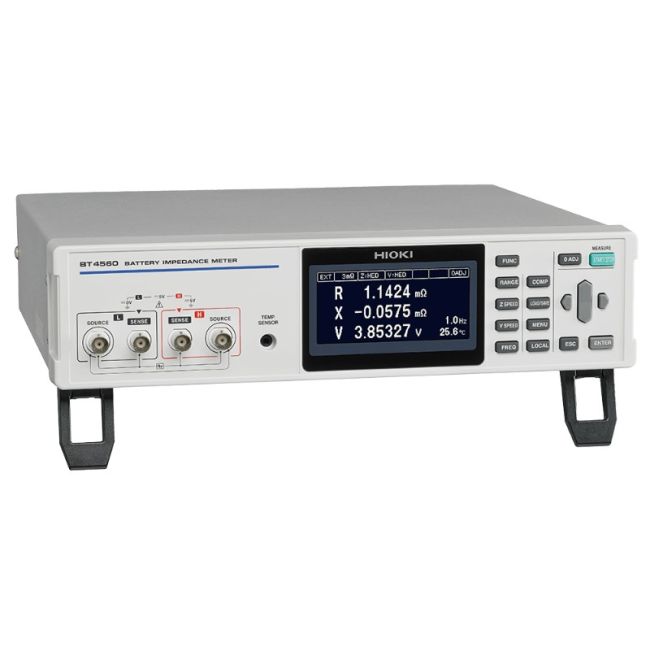

The Hioki BT4560 Li-Ion Battery Impedance Meter provides precise measurement of internal resistance in lithium-ion batteries using a low-frequency AC-IR method. With a 1.5 A test current, it improves signal-to-noise ratio and delivers reliable results even for low-impedance cells used in hybrid and plug-in hybrid vehicles.
The instrument reduces inspection time by offering simultaneous impedance and high-accuracy DC voltage measurement. It also allows users to apply a delay between AC voltage input and measurement sampling, ensuring stable and accurate results.
Testwall can supply the used Hioki BT4560, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Hioki BT4560.
