Hipotronics 880PL-10MA-A
| Attribute | Value |
|---|---|
| Output Voltage | 880 V DC |
| Output Current | 10 mA |
| Test Type | DC Hipot (Dielectric Withstand) Testing |
| Voltage Regulation | ±1% of full scale |
| Current Measurement Resolution | 0.1 µA |
| Power Supply Input | 115 V AC, 50/60 Hz |
| Output Polarity | Positive (Standard) |
| Metering | Digital Panel Meters for Voltage and Current |
| Safety Features | Automatic discharge, overload protection, and ground fault detection |
| Enclosure / Form Factor | Bench-top / Portable Unit |
Hipotronics 880PL-10MA-A Options:
- 880PL-10MA-A - HHDA13-280 - Grounding Stick, 120kV Max Voltage
- 880PL-10MA-A - SKP1-880PL-10MA - Spare Parts Kit for 880PL-10mA
- 880PL-10MA-A - SPK1-815PL - Spare Parts Kit for 815PL
- 880PL-10MA-A - SPK1-8120-5PL - Spare Parts Kit for 8120-5PL
- 880PL-10MA-A - SPK1-8170-5PL - Spare Parts Kit for 8170-5PL
- 880PL-10MA-A - EXT-WARN-1 - One year extended warranty
| Model | 880PL-10MA-A |
|---|

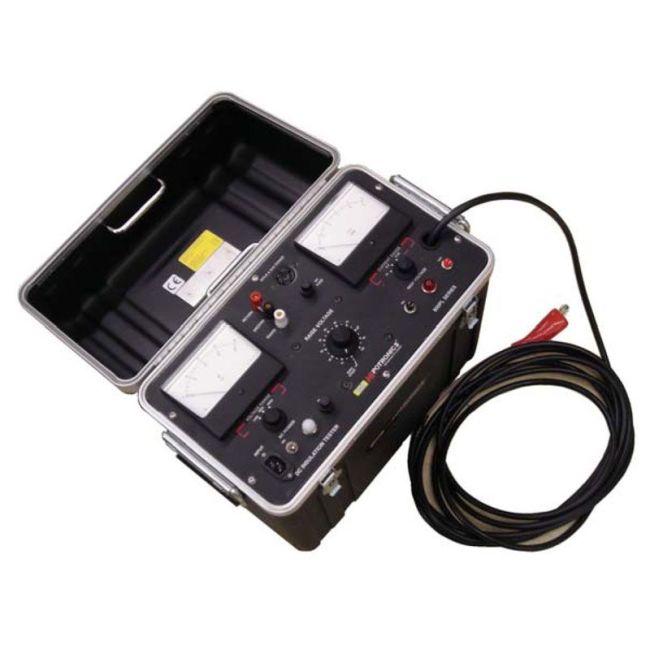

HAEFELY / HIPOTRONICS 880PL-10MA-A HIPOT TESTER
The Haefely / Hipotronics 880PL-10MA-A Hipot Tester is the ideal and economical solution to DC field testing of cables, terminations, motors, generators and other electrical apparatus. Its simple control panel makes it easy to use and makes for minimal setup time. The Hipotronics 880PL-10MA-A features accurate kilovoltmeter readings regardless of load current. Voltage measurements are taken directly at the output of the high voltage transformer, while cur is measured at the return leg to ensure the highest accuracy.
Ideal for field testing applications, the Haefely / Hipotronics 880PL-10MA-A Hipot Tester outputs up to 80kV DC in a portable, rugged, self-contained enclosure. Output power is created through a full-wave, voltage doubling, silicon rectifier circuit. Safe discharging of both the test object and internal transformer occur whenever high voltage is switched off. The Haefely / Hipotronics 880PL-10MA-A Hipot Tester can be used to test a variety of high voltage equipment, including MV and HV cables, transformers, electrical switchgear, motor, generators, and other electrical apparatus.
Features of the Haefely / Hipotronics 880PL-10MA-A Hipot Tester include:
- 5-10 mA cur rating
- Full-wave voltage doubling rectifier
- Meter accuracy +- 2% full scale
- Shielded output cable
- Automatic grounding of power supply and test object when high voltage is turned OFF
- Accurate cur measurement and guard circuit designed to eliminate stray leakage currents
