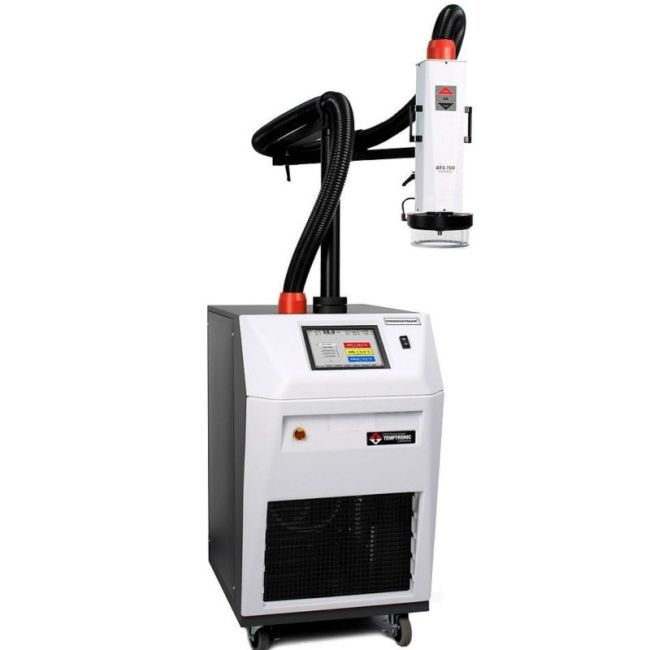

InTest - Temptronic ATS-545
| Attribute | Value |
|---|---|
| Temperature Range | -55°C to +150°C |
| Temperature Stability | ±0.1°C |
| Cooling Technology | Thermoelectric (TEC) based cooling system |
| Airflow Rate | Up to 25 CFM (cubic feet per minute) |
| Nozzle Outlet Temperature Accuracy | ±1°C |
| Ramp Rate | Up to 45°C per minute |
| Interface/Control | RS-232 and GPIB (IEEE-488) interface for automated test system integration |
| Power Requirements | 100-240V AC, 50/60 Hz, single phase |
| Compressed Air/Gas Requirement | Dry air or nitrogen required at 60-100 PSI |
| Operating Environment | Designed for IC, semiconductor, and electronic component thermal testing on ATE systems |
InTest - Temptronic ATS-545 Options:
- ATS-545 - Thermal Cap (4.5 inch ID) - 4.5 inch ID Thermal Cap for connection to external Thermal Chambers or enclosures
- ATS-545 - Thermal Cap (5.5 inch ID) - 5.5 inch ID Thermal Cap for connection to external Thermal Chambers or enclosures
- ATS-545 - FlexExtender Hose - Optional FlexExtender Hose for connection to external Thermal Chambers or enclosures
- ATS-545 - MobileTemp Thermal Chambers - Temperature Chambers designed specifically for use with ATS THERMOSTREAM Systems
- ATS-545 - Extended Height Option - Extended height option: 188.0 cm (74.0 in.) maximum operating height, 81.3 cm (32.0 in.) minimum operating height
| Model | ATS-545 |
|---|
The inTEST ATS-545 is a high-performance thermal forcing system designed for demanding electronics testing applications. It offers enhanced thermal capacity and rapid transition rates, ensuring accurate stress testing for semiconductors, PCBs, and integrated systems. Its durable build delivers reliable performance under continuous operation, making it ideal for high-throughput environments without the need for large environmental chambers.
Engineered for precision, the ATS-545 provides fast and stable temperature transitions, enabling efficient simulation of extreme operating conditions. It supports larger devices and ensures dependable results in both development and production testing setups.
Testwall can supply the used inTEST ATS-545, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the inTEST ATS-545.
