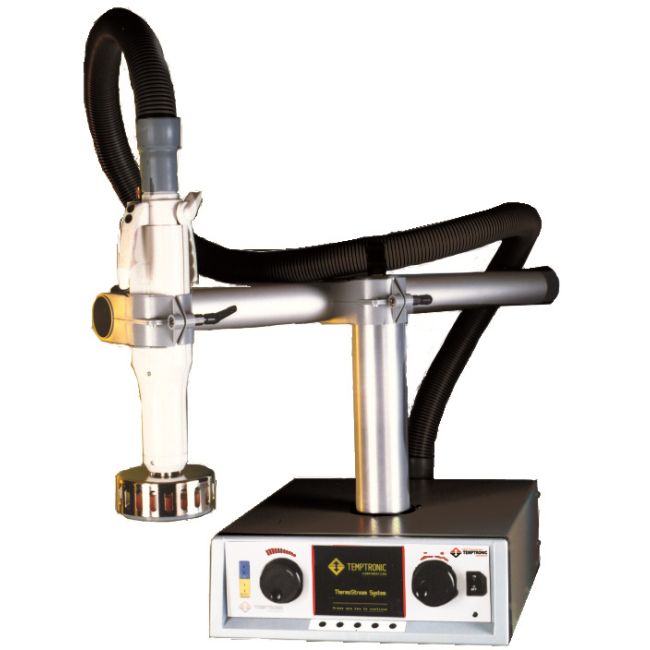

InTest - Temptronic ATS-605
| Attribute | Value |
|---|---|
| Temperature Range | -65°C to +200°C |
| Temperature Stability | ±0.1°C |
| Cooling Technology | Liquid Nitrogen (LN2) or CO2 |
| Flow Rate | Up to 60 SCFH (standard cubic feet per hour) |
| Hose Length | 6 feet (1.8 meters) standard |
| Temperature Sensor | Type T Thermocouple |
| Control Interface | RS-232 Serial Interface for remote control |
| Power Requirements | 100-240V AC, 50/60 Hz |
| Warm-Up Time | Less than 5 minutes to reach operating temperature |
| Dimensions (W x D x H) | 8.5 in x 16 in x 10.5 in (216 mm x 406 mm x 267 mm) |
InTest - Temptronic ATS-605 Options:
- ATS-605 - Thermal Cap - 3.9 or 5.5 inch ID Thermal Cap
- ATS-605 - Benchmount Stand Assembly - Attaches the Thermal Wand Stand Assembly directly to a bench top. Can be mounted up to 30.5cm (12 inches) from controller chassis.
- ATS-605 - Pneumatic Wand Lift Assembly - Automates the raising and lowering of the Thermal Wand for the loading and unloading of the DUT.
- ATS-605 - Thermal Stand Assembly - Expanding, locking, stand assembly for added stability and hands-free operation of the Thermal Wand. Rotates 340° around the controller cabinet for positioning the wand directly over the DUT.
- ATS-605 - Local & Remote Operations - Local & Remote Operations system option
- ATS-605 - LabView Drivers - LabView™ drivers system option
- ATS-605 - IEEE-488, RS232 ports - IEEE-488, RS232 ports system option
| Model | ATS-605 |
|---|
The inTEST ATS-605 offers a wide and precise thermal control range, ensuring stability and accuracy across long test cycles. It provides efficient cooling and heating transitions, with easy integration for use in evaluating automotive electronics, aerospace components, and consumer devices.
Its advanced control system allows engineers to replicate diverse environmental conditions, making it ideal for productivity-focused testing and reliable performance assessments.
Testwall can supply the used inTEST ATS-605, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the inTEST ATS-605.
