InTest - Temptronic

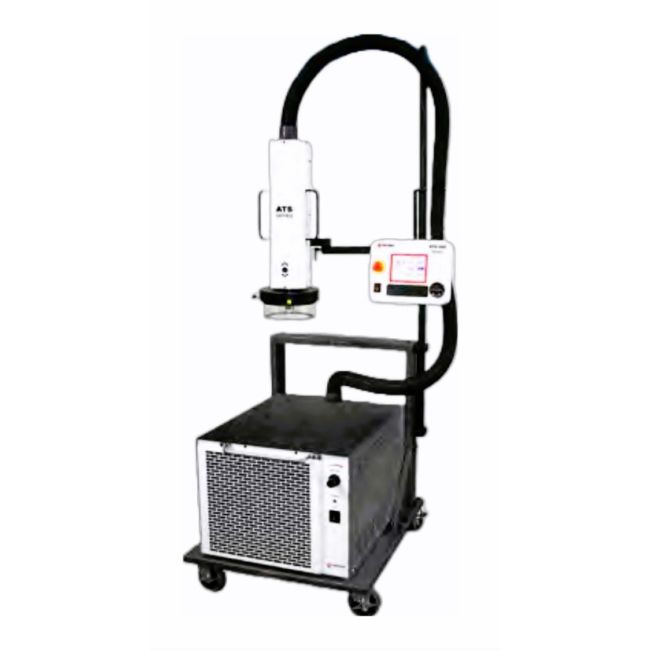

InTest - Temptronic ATS-615
Thermostream Thermal Inducing System, -45 to 225C
-65°C to +200°C Temperature Range
±0.1°C Temperature Stability
Up to 25 CFM (cubic feet per minute) Airflow Output
Liquid nitrogen (LN2) or compressed dry air (CDA) Cooling Method
1200W maximum Heating Capacity
| Attribute | Value |
|---|---|
| Temperature Range | -65°C to +200°C |
| Temperature Stability | ±0.1°C |
| Airflow Output | Up to 25 CFM (cubic feet per minute) |
| Cooling Method | Liquid nitrogen (LN2) or compressed dry air (CDA) |
| Heating Capacity | 1200W maximum |
| Temperature Slew Rate | Up to 45°C per minute |
| Control Interface | IEEE-488 (GPIB) and RS-232 serial interface |
| Power Requirements | 100–240V AC, 50/60 Hz, single phase |
| Thermocouple Type | Type T or Type K thermocouple sensor |
| Operating Environment | 0°C to 40°C ambient temperature, up to 90% relative humidity (non-condensing) |
InTest - Temptronic ATS-615 Options:
- ATS-615 - Thermal Cap - 5.5 inch ID Glass Thermal Cap to enclose your test subject
- ATS-615 - High Performance Air Dryer - 20scfm air dryer for drying supply air to less than -70°C dewpoint
- ATS-615 - System Cart - Castered, heavy-duty, steel cart for portability and easy mounting of thermal head and operator control module
- ATS-615 - Benchmount - Conveniently clamps the thermal head to a benchtop or workstation
| Model | ATS-615 |
|---|
The inTEST ATS-615 delivers precise hot and cold airflow with fast response, designed for larger or high-power devices. Its rugged construction ensures reliable stress and qualification testing by replicating extreme environmental conditions with accuracy.
Engineers rely on the ATS-615 for its optimized thermal performance, making it suitable for durability verification and demanding industrial applications that require repeatable results and precision control.
Testwall can supply the used inTEST ATS-615, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the inTEST ATS-615.
