Amplifier Research

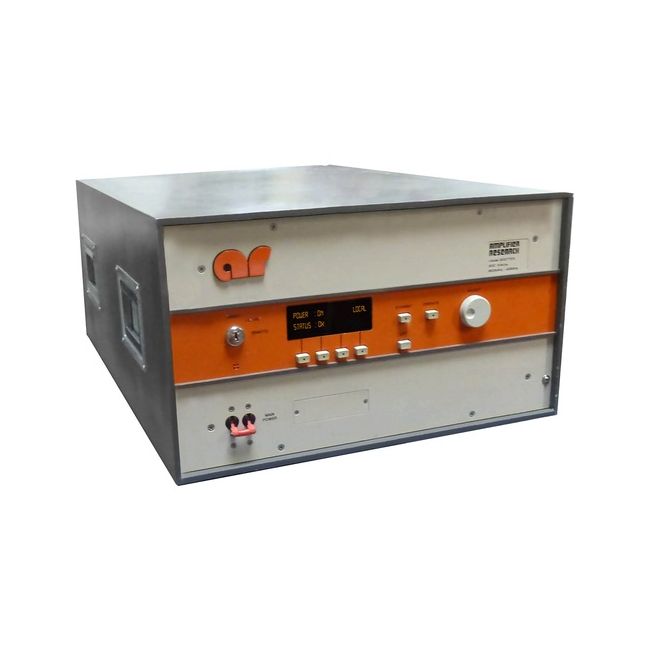

Amplifier Research 500T2Z5G7Z5
RF Amplifier 2.5 - 7.5 GHz 500W
500 W Potenza di uscita
2 MHz - 7,5 GHz Intervallo di frequenza
50 dB Guadagno minimo
50 Ohm Impedenza di ingresso/uscita
Type N femmina Connettore di ingresso
| Attributo | Valore |
|---|---|
| Potenza di uscita | 500 W |
| Intervallo di frequenza | 2 MHz - 7,5 GHz |
| Guadagno minimo | 50 dB |
| Impedenza di ingresso/uscita | 50 Ohm |
| Connettore di ingresso | Type N femmina |
| Connettore di uscita | Type N femmina |
| Tensione di alimentazione | 220 V CA / 50-60 Hz |
| Tecnologia amplificatore | Stato solido (Solid State) |
| Applicazione principale | Test EMC, compatibilità elettromagnetica |
| Raffreddamento | Raffreddamento forzato ad aria |
Amplifier Research 500T2Z5G7Z5 Options:
- 500T2Z5G7Z5 - M1 - E1C: Cabinet without outer enclosure, 48.3 x 22.2 (5U) x 66.1 cm, 19 x 8.75 (5U) x 27 in. Subtract approximately 14 kg, 30 lbs.
- 500T2Z5G7Z5 - M2 - E3H: Front pull handles installed.
- 500T2Z5G7Z5 - M3 - E1C & E3H: Cabinet without outer enclosure plus front pull handles installed.
- 500T2Z5G7Z5 - M4 - E1C & E2S: Cabinet without outer enclosure plus slides installed (add approximately 2 kg, 5 lbs).
- 500T2Z5G7Z5 - M5 - E1C & E2S & E3H: Cabinet without outer enclosure, slides, and front pull handles installed.
- 500T2Z5G7Z5 - M6 - P1: 190-260 VAC single phase 50/60 Hz, 3.5 KVA maximum alternate primary power.
- 500T2Z5G7Z5 - M7 - E1C & P1: Cabinet without outer enclosure plus single phase alternate primary power.
- 500T2Z5G7Z5 - M8 - E1C & E2S & E3H & P1: Cabinet without outer enclosure, slides, front pull handles, and single phase alternate primary power.
- 500T2Z5G7Z5 - M9 - S1R: Reflected sample port on rear panel, type N female connector. Forward and reflected sample port calibration data supplied on disk in Excel format at 51 points.
- 500T2Z5G7Z5 - M10 - P1 & S1R: Single phase alternate primary power plus reflected sample port on rear panel.
- 500T2Z5G7Z5 - M11 - E1C & P1 & S1R: Cabinet without outer enclosure, single phase alternate primary power, and reflected sample port.
- 500T2Z5G7Z5 - M12 - P1 & S2V: Single phase alternate primary power plus video pulse capability (blanking, PRF up to 100 kHz, RF rise/fall 30 ns max).
- 500T2Z5G7Z5 - M13 - E1C & S3P & S6F: Cabinet without outer enclosure, power minimum 350 watts from 7.5–8.0 GHz, and external filter assembly with TWTA input/filtered output/coupled ports on front of subassembly.
- 500T2Z5G7Z5 - M14 - E1C & E2S & S5F: Cabinet without outer enclosure, slides, and external filter assembly with connectors on rear panel.
- 500T2Z5G7Z5 - M15 - S3P: Power minimum 350 watts from 7.5 GHz to 8.0 GHz (400 watts typical).
- 500T2Z5G7Z5 - M16 - E1C & E2S & E3H & P1 & S1R: Cabinet without outer enclosure, slides, front pull handles, single phase alternate primary power, and reflected sample port.
- 500T2Z5G7Z5 - M17 - E1C & E3H & P1 & S7C: Cabinet without outer enclosure, front pull handles, single phase alternate primary power, and RF output on rear panel with all other connectors on front panel (interlock BNC, RF output sample port 60 dB coupling factor).
- 500T2Z5G7Z5 - M18 - E3H & S2V: Front pull handles installed plus video pulse capability (blanking, PRF up to 100 kHz, RF rise/fall 30 ns max).
| Model | 500T2Z5G7Z5 |
|---|
L’Amplifier Research 500T2z5G7z5 è un amplificatore TWT a banda larga raffreddato ad aria, che fornisce almeno 500 W tra 2,5–7,5 GHz. Offre un guadagno minimo di 57 dB, una regolazione continua di 35 dB, protezione VSWR e supporto per modulazioni AM, FM e a impulsi. L’alimentazione modulare, il display digitale e l’interfaccia IEEE-488 (GPIB) garantiscono affidabilità nelle applicazioni più impegnative.
Ideale per test EMC, ricerca industriale, sviluppo universitario e servizi, il 500T2z5G7z5 fornisce potenza elevata con piena protezione.
Testwall può fornire l’Amplifier Research 500T2z5G7z5 usato, completamente testato. Con consegna globale e supporto esperto, Testwall garantisce strumenti affidabili e performanti. Contattaci per calibrazione o riparazione dell’Amplifier Research 500T2z5G7z5.
